Запчасти Case 1150K (08-16) - VALVE ASSY, THREE SPOOL - SPOOLS (08) - HYDRAULICS

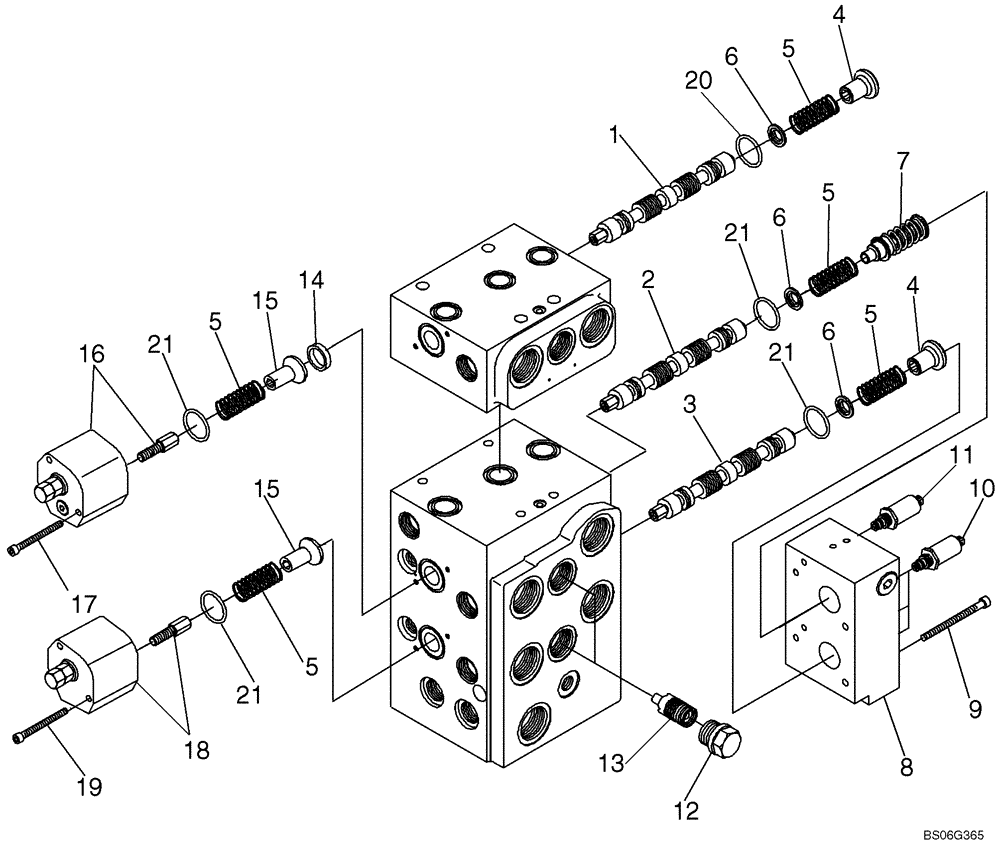

Схема запчастей Case 1150K - (08-16) - VALVE ASSY, THREE SPOOL - SPOOLS (08) - HYDRAULICS
6
18
5
9
21
7
1
12
5
13
21
21
19
5
14
3
16
15
20
6
2
21
17
10
11
4
5
5
4
6
15
8

Артикул

Название

Примечание

Количество

87341633

CONTROL VALVE

Three Spool Control Valve, W/O Plug At Spool Loading Valve; Incl. Ref 1 - 27 ; Replaces 87341633, W/ Screw Plug at Spool Loading Valve; Used On Some Models; Also See Figures 08-15, 08-17

1шт.

1

87567787

SPOOL

Angle Spool; Also See Figure 08-17

1шт.

2

87567786

SPOOL

Lift Spool

1шт.

3

87567785

SPOOL

Tilt Spool

1шт.

4

87516620

RETAINER

2шт.

5

87516617

SPRING

5шт.

6

8604582

RETAINER

3шт.

7

87311985

SPRING

1шт.

8

87516632

COVER

Block Cover

1шт.

9

87518268

SCREW,M5 x 80mm, Gr 8.8

M5 x 80

5шт.

10

87516634

VALVE PRESSURE RELIE

FTDRE2; For Service Of External Seals, Order 87516646 Seal Kit; Order 87516645 For Filter

3шт.

87516645

FILTER

Service

3шт.

87516646

SEAL KIT

Seal Kit; Includes (3) O-Rings; Also Includes (2) Backup Rings Not Used In This Application

3шт.

11

87516635

CARTRIDGE

Pressure Reducing, FTDRE4; For Service Of External Seals, Order 87516646 Seal Kit; Order 87516645 For Filter

1шт.

87516645

FILTER

Service

1шт.

87516646

SEAL KIT

Seal Kit; Includes (3) O-Rings; Also Includes (2) Backup Rings Not Used In This Application

1шт.

12

87516612

PLUG

M22 x 1.5

2шт.

13

87516611

SPOOL

Compensator Spool

2шт.

14

87311986

RING

1шт.

15

87311984

RETAINER

RETAINER

2шт.

16

87516587

COVER

Cover, Pilot, Lift

1шт.

17

864-5060

HEX SOC SCREW,M5 x 60mm, Cl 8.8

2шт.

18

87516585

COVER

Cover, Pilot, Tilt

1шт.

19

864-5055

HEX SOC SCREW,M5 x 55mm, Cl 8.8

M5 x 55 Socket Head Screw

2шт.

20

8604566

SEAL KIT

Seal; Includes (12) O-Rings For Angle Section; Also See Figure 08-17 For Angle Section

1шт.

21

87516638

SEAL KIT

Valve Block Seal Kit; Includes (18) O-Rings; See Figure 08-15 For Additional O-Ring Locations

1шт.

Выбрано товаров: 26
