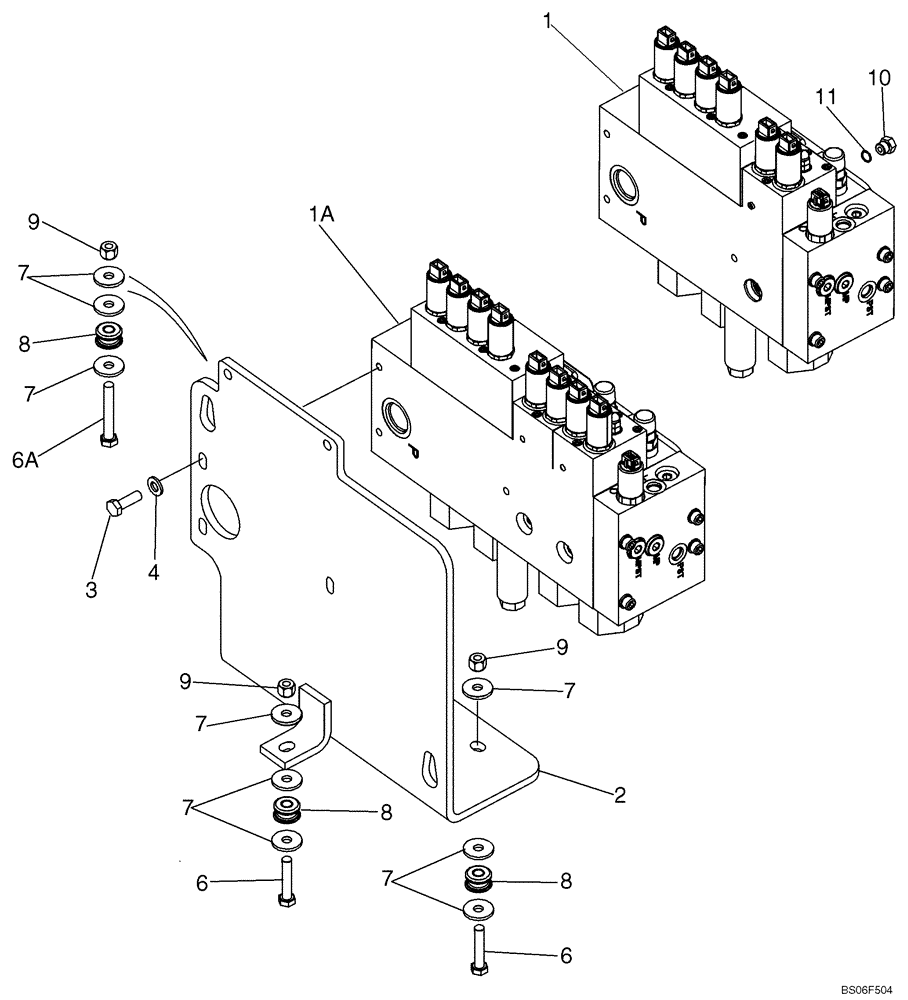

Запчасти Case 1150K (08-14) - VALVE, CONTROL - MOUNTING (08) - HYDRAULICS

1

87341633

CONTROL VALVE

Three Spool; See Figure 08-15

1шт.

1a

87341634

CONTROL VALVE

Four Spool; See Figure 08-18

1шт.

2

87609270

BRACKET

Support Bracket ; Replaces 87523776

1шт.

3

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

3шт.

4

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

3шт.

6

814-10050

BOLT,Hex, M10 x 1.5 x 50mm, Cl 8.8

2шт.

6a

814-10070

BOLT,Hex, M10 x 1.5 x 70mm, Cl 8.8

1шт.

7

496-81028

WASHER,10.31mm ID x 31.75mm OD x 4.06mm Thk

9шт.

8

296684A1

RUBBER MOUNTING

3шт.

9

832-10410

NUT,M10 x 1.5, Cl 8

3шт.

10

9841223

PLUG,1-1/16" - 12 ORB

Incl. Ref 11; 4 Spool to 3 Spool; Models without Auxiliary Equipment

2шт.

11

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.
