Запчасти Case 1150K (08-12) - PUMP ASSY, HYDRAULIC GEAR (WITHOUT PTO) (08) - HYDRAULICS

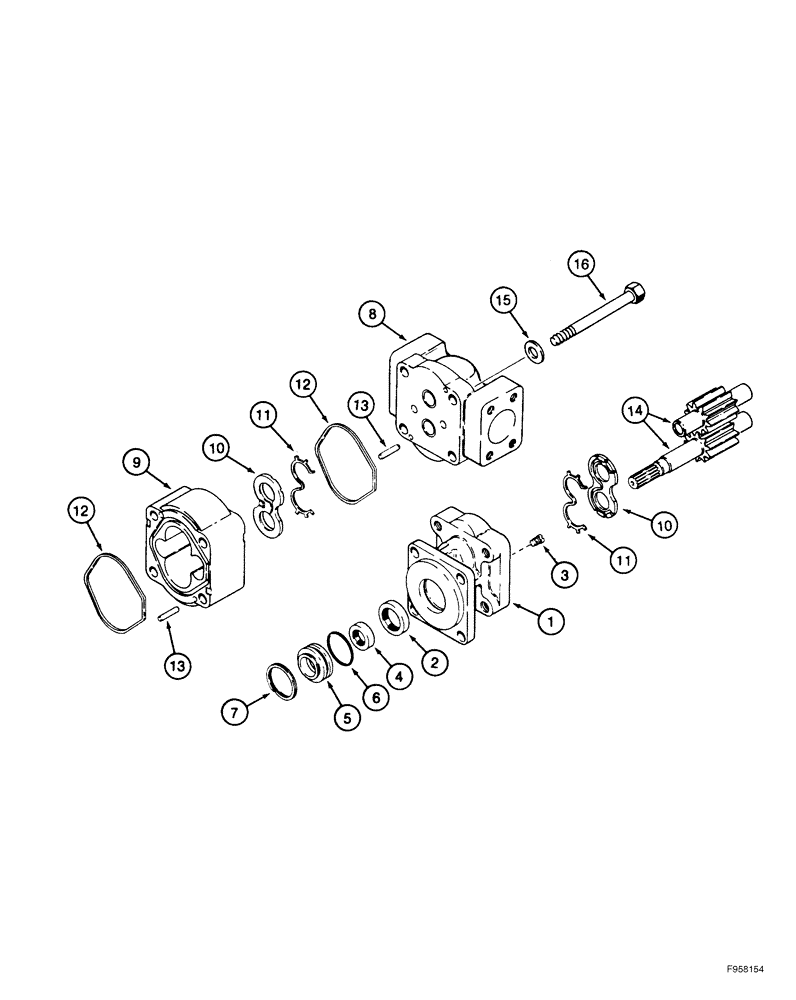

Схема запчастей Case 1150K - (08-12) - PUMP ASSY, HYDRAULIC GEAR (WITHOUT PTO) (08) - HYDRAULICS
9
6
3
15
12
1
5
12
10
13
11
10
13
8
11
16
7
4
14
2

Артикул

Название

Примечание

Количество

87604362

HYDRAULIC PUMP

Hydraulic Pump Equipment; W/ Outer Seal Rating Of 125 psi; Replaces R58775, W/ Outer Seal Rating of 25 psi; Used On Some Models;

1шт.

87604362R

REMAN-HYD PUMP

1150K SERIES 3 CRAWLER DOZER TIER 3 (NA/EU) (10/06-)

1шт.

87604362C

CORE-HYDRAULIC PUMP

Return Number

1шт.

R58775

PUMP, HYDRAULIC

Equipment, Incl. Ref 1 - 16; W/ Outer Seal Rating Of 25 psi

1шт.

87604362R

REMAN-HYD PUMP

1150K SERIES 3 CRAWLER DOZER TIER 3 (NA/EU) (10/06-), Reman for New PN R58775

1шт.

87604362C

CORE-HYDRAULIC PUMP

Return Number

1шт.

1

107611A1

COVER ASSY

Shaft End, Incl. 1A

1шт.

1a

NSS

NOT SOLD SEPARAT

Bushing, Not Illustrated

2шт.

2

L32418

SEAL,26.99mm ID x 42.93mm OD x 7.92mm Thk

1шт.

3

L32320

PLUG

7/16 NF

2шт.

4

A24845

OIL SEAL

1шт.

5

N13580

RETAINER

1шт.

6

238-5134

O-RING,0.103" Thk x 1.862" ID, -134, Cl 5, 75 Duro

1шт.

7

102-23206

SNAP RING,#206, 2.190", Int, Spiral

1шт.

8

107612A1

COVER ASSY

Closed End/Port End, Incl. 8A

1шт.

8a

NSS

NOT SOLD SEPARAT

Bushing, Not Illustrated

2шт.

9

N13581

HOUSING

Shaft End

1шт.

10

N13582

THRUST PLATE

2шт.

11

N13583

SEAL

2шт.

12

L32100

SEAL,Square, 3.17mm Thk x 101.6mm ID, 70 Duro

2шт.

13

W16323

DOWEL

4шт.

14

107613A1

GEAR-SET

Set Of Two, Shaft End

1шт.

15

19-488

WASHER

11/16 x 1-11/32 x 3/16

4шт.

16

13-1084

BOLT,Hex, 5/8" - 11 x 5-1/4", Gr 5

4шт.

17

47593293

SEAL KIT

1шт.

18

48009544

SEAL KIT

1шт.

Выбрано товаров: 26
