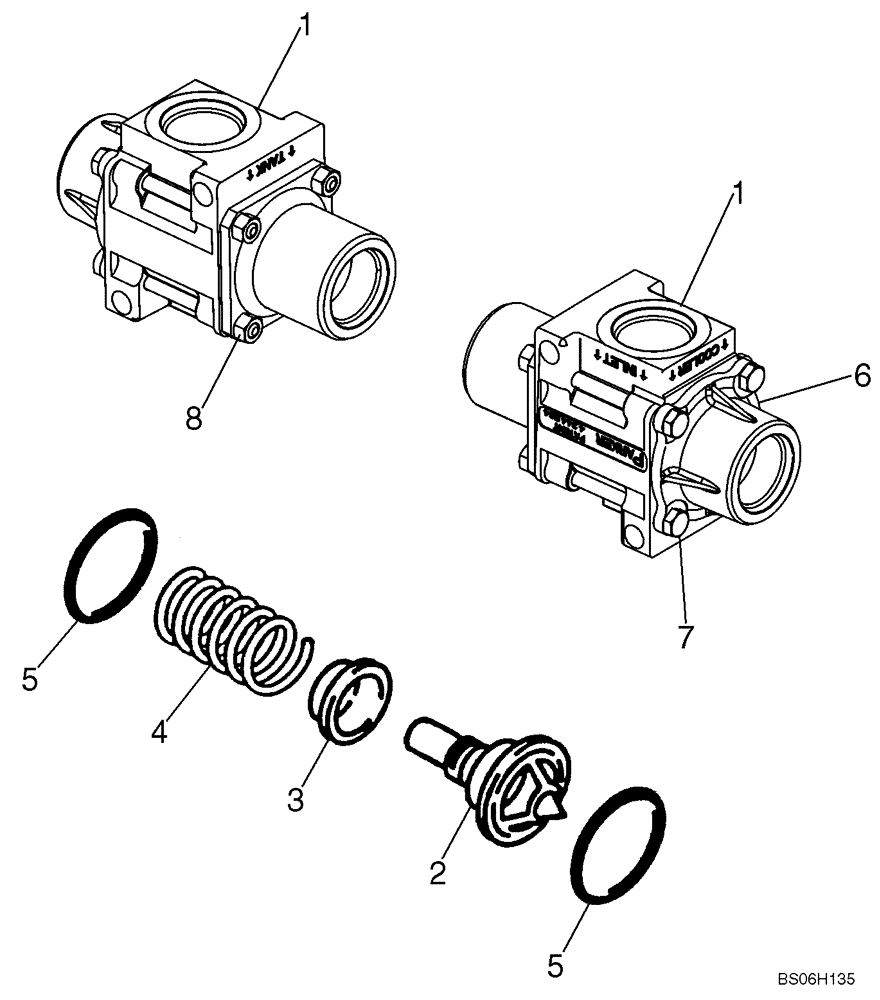

Запчасти Case 1150K (08-11) - VALVE ASSEMBLY, THERMAL BYPASS (08) - HYDRAULICS

87535085 Thermal Bypass; Incl. Ref 1 - 8; No Longer Used, Order 87578785 Check Valve Tee, Ref 8A, Fig 08-04

1шт.

1

NSS

NOT SOLD SEPARAT

Body

1шт.

2

N14569

THERMOSTAT

1шт.

3

A48899

SEAL

With Retainer

1шт.

4

NSS

NOT SOLD SEPARAT

Spring

1шт.

5

238-5034

O-RING,0.07" Thk x 2.114" ID, -34, Cl 5, 75 Duro

2шт.

6

A48967

CAP

1шт.

7

413-452

BOLT,Hex, 1/4" - 20 x 3-1/4", Gr 5

4шт.

8

NSS

NOT SOLD SEPARAT

4шт.
