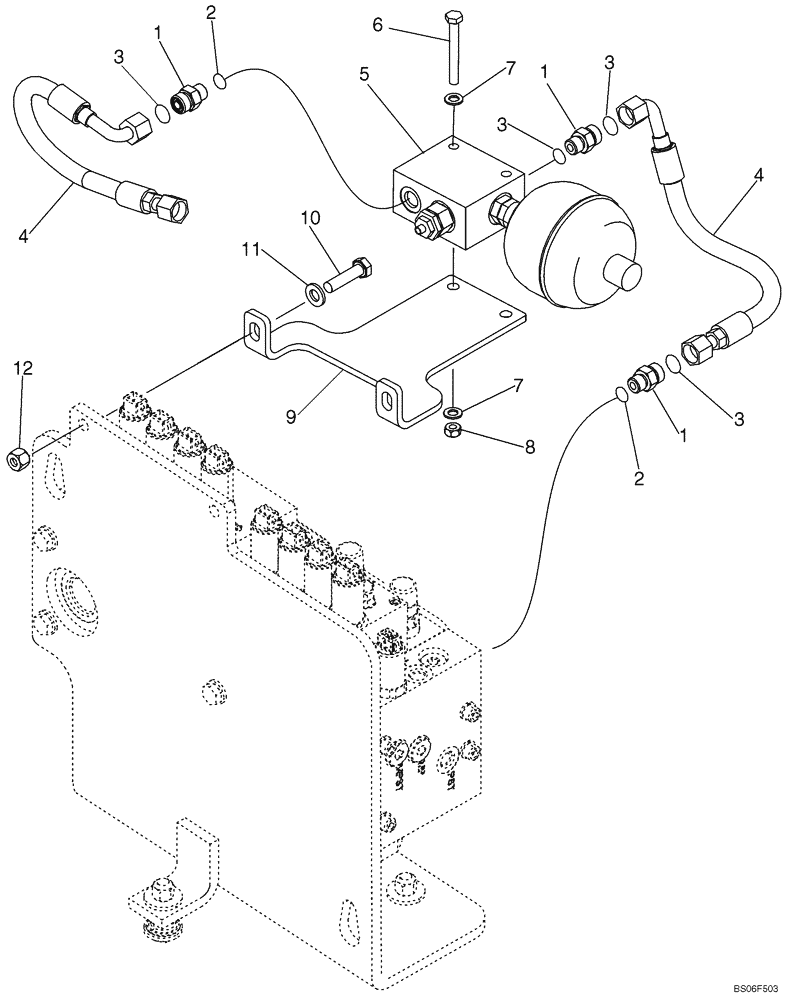

Запчасти Case 1150K (08-10) - HYDRAULICS - ACCUMULATOR BLADE CONTROL (08) - HYDRAULICS

1

201-101

HYD CONNECTOR,11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

Incl Ref 2, 3

3шт.

2

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

Boss End

1шт.

3

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face Seal End

1шт.

4

87533710

HOSE ASSY.

385 mm (15-5/32 in) Hose

2шт.

5

87374846

ACCUMULATOR

ASSY., Includes (1) 87378349 Throttle Valve, (1) 87389569 Accumulator

1шт.

6

814-8065

BOLT,Hex, M8 x 1.25 x 65mm, Cl 8.8

2шт.

7

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

8

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

2шт.

9

87533709

BRACKET

1шт.

10

614-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8, Full Thd

2шт.

11

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

2шт.

12

832-10410

NUT,M10 x 1.5, Cl 8

2шт.
