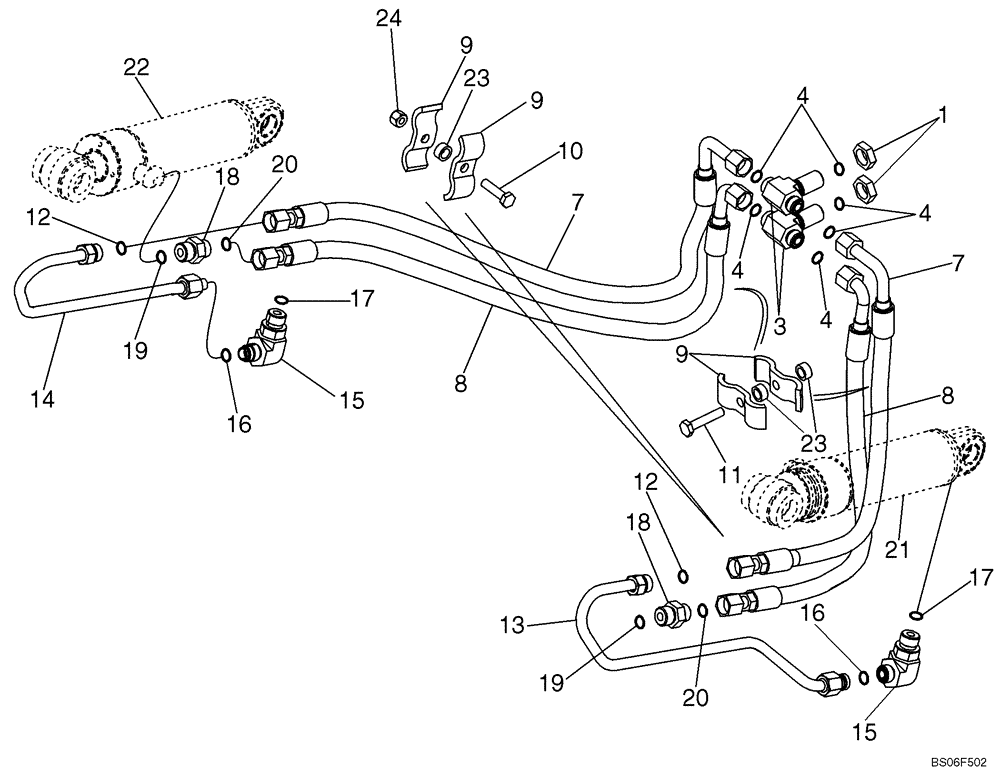

Запчасти Case 1150K (08-09) - HYDRAULICS - RIPPER, REAR OF TRACTOR TO CYLINDERS (08) - HYDRAULICS

1

201-903

TUBE NUT,Blkhd, 13/16"-16

2шт.

3

201-452

TEE,13/16"-16, Blkhd Br

Incl. Ref 4

2шт.

4

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Face Seal End

3шт.

7

87405656

HOSE ASSY.

794 mm long; Upper; To Closed End Of Cylinder

2шт.

8

87408851

HOSE ASSY.

775 mm lg; Lower; To Rod End Of Cylinder

2шт.

9

434130A1

HOSE CLAMP

8шт.

10

614-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8, Full Thd

2шт.

11

43249

BOLT,Hex, M10 x 1.5 x 50mm, Cl 10.9

2шт.

12

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Face Seal End

2шт.

13

87352784

TUBE,12.70 mm OD

Right-Hand Cylinder Tube

1шт.

14

87352785

TUBE,12.70 mm OD

Left-Hand Cylinder Tube

1шт.

15

201-326

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 7/8" - 14 Male ORB

2шт.

16

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Face Seal End

1шт.

17

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

Boss End

1шт.

18

201-112

HYD CONNECTOR,13/16" - 16 Male ORFS x 7/8" - 14 Male ORB

Includes Ref 19, 20

2шт.

19

237-6014

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

Boss End

1шт.

20

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Face Seal End

1шт.

21

87517747

HYDRAULIC CYLINDER

CYLINDER ASSY., 101.4 ID x 254 mm strk; Right-Hand; Ripper; See Figure 08-25; If Used

1шт.

21

87651090

CYLINDER ASSY.,Double Acting, 50.8mm Rod, 254mm Stroke

CYLINDER ASSY., 101.6 ID x 254 mm strk; Right-Hand; Ripper; See Figure 08-25A; If Used

1шт.

21

87651090R

REMAN-HYD CYLINDER

1150K SERIES 3 CRAWLER DOZER TIER 3 (NA/EU), CYLINDER ASSY., 101.6 ID x 254 mm strk; Right-Hand; Ripper (10/06-)

1шт.

21

87651090C

CORE-HYD CYLINDER

Return Number

1шт.

22

87517745

HYDRAULIC CYLINDER

CYLINDER ASSY., 101.4 ID x 254 mm strk; Left-Hand; Ripper; See Figure 08-25; If Used

1шт.

22

87651120

CYLINDER ASSY.,Double Acting, 50.8mm Rod, 254mm Stroke

CYLINDER ASSY., 101.6 ID x 254 mm strk; Left-Hand; Ripper; See Figure 08-25A; If Used

1шт.

22

87651120R

REMAN-HYD CYLINDER

1150K SERIES 3 CRAWLER DOZER TIER 3 (NA/EU) (10/06-)

1шт.

22

87651120C

CORE-HYD CYLINDER

Return Number

1шт.

23

87311572

SPACER,12.7mm x 19mm x 9mm

6шт.

24

832-10410

NUT,M10 x 1.5, Cl 8

2шт.
