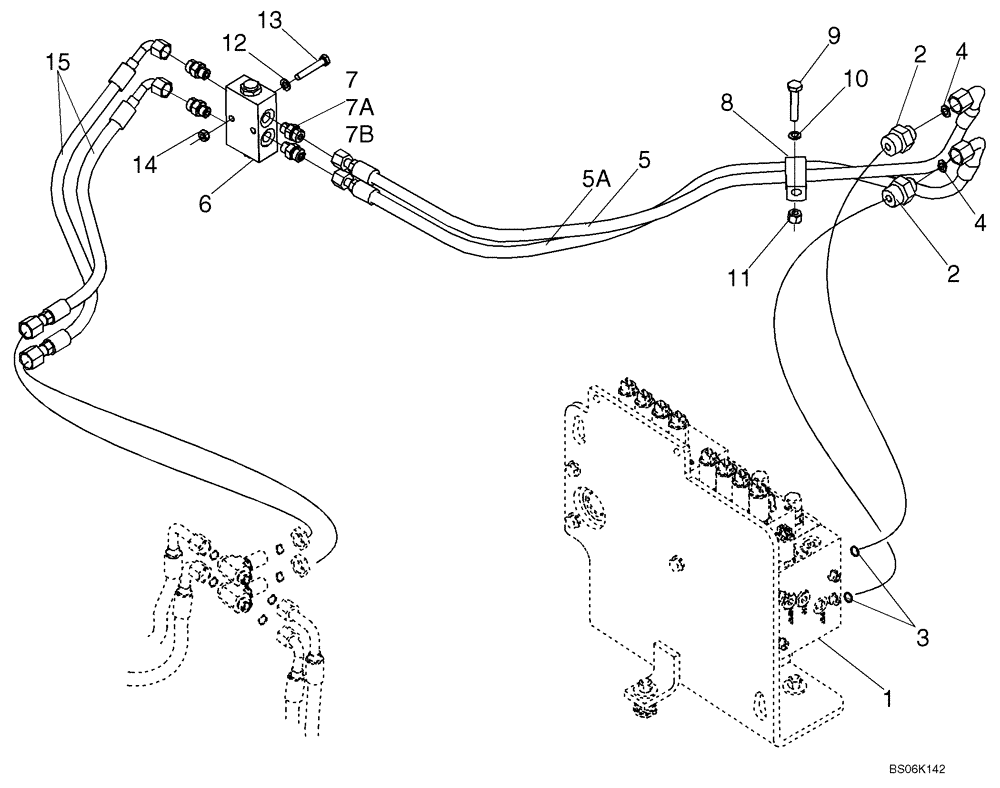

Запчасти Case 1150K (08-08) - HYDRAULICS - RIPPER, VALVE TO REAR OF TRACTOR (08) - HYDRAULICS

1

87341634

CONTROL VALVE

Four Spool Control Valve; See Figure 08-18

1шт.

2

201-128

HYD CONNECTOR,13/16"-16 ORFS x 1 1/16"-12 ORB

Incl. 3, 4

2шт.

3

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Boss End

1шт.

4

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Face Seal End

1шт.

5

87578208

HOSE ASSY.

Ripper; Lower Port at Valve / Upper at Bulkhead Tee

1шт.

5a

87578210

HOSE ASSY.

Ripper; Upper Port at Valve / Lower at Bulkhead Tee

1шт.

6

85802820

CHECK VALVE

Pilot Operated, Single Acting

1шт.

7

201-101

HYD CONNECTOR,11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

Incl Ref 7A, 7B

4шт.

7a

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

Boss End

1шт.

7b

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face Seal End

1шт.

8

L302731

CLAMP,19mm D Clamping Pipes

1шт.

9

614-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 8.8, Full Thd

1шт.

10

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

1шт.

11

412126

NUT,M12 x 1.75

Replaces 832-10412

1шт.

12

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

13

43130

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

2шт.

14

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

2шт.

15

87578207

HOSE ASSY.

Ripper

2шт.
