Запчасти Case 1150K (08-07) - HYDRAULICS - TILT AND ANGLE CIRCUITS (AT CYLINDERS) (08) - HYDRAULICS

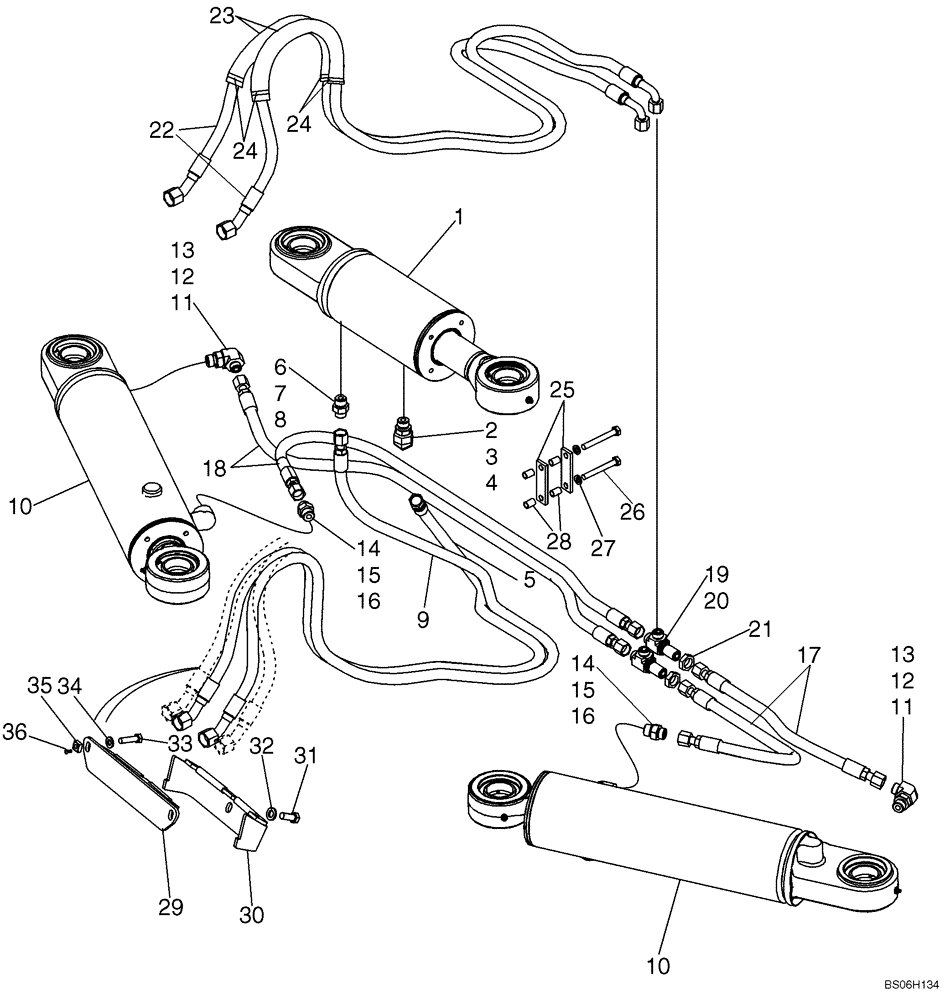

Схема запчастей Case 1150K - (08-07) - HYDRAULICS - TILT AND ANGLE CIRCUITS (AT CYLINDERS) (08) - HYDRAULICS
30
15
25
14
32
27
26
13
24
15
5
12
8
22
16
24
17
35
20
2
33
18
6
10
19
9
4
36
11
1
21
12
10
3
23
28
31
14
11
29
16
13
34
7

Артикул

Название

Примечание

Количество

1

87377322

CYLINDER ASSY.,Double Acting, 63.5mm Rod, 119.9mm Stroke

127 ID x 119.9 mm Stroke; Tilt; See Figure 08-23

1шт.

1

87377322R

REMAN-HYD CYLINDER

1150K SERIES 3 CRAWLER DOZER TIER 3 (NA/EU), 127 ID x 119.9 mm Stroke; Tilt (10/06-)

1шт.

1

87377322C

CORE-HYD CYLINDER

Return Number

1шт.

2

201-377

ELBOW,45 Degree Elbow, 13/16" - 16 Male ORFS x 7/8" - 14 Male ORB

Includes Ref 3, 4

1шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

Boss End

1шт.

4

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Face Seal End

1шт.

5

87397434

HOSE ASSY.

2090 mm (82-5/16 in); Tilt Cylinder Rod End

1шт.

6

201-112

HYD CONNECTOR,13/16" - 16 Male ORFS x 7/8" - 14 Male ORB

Includes Ref 7, 8

1шт.

7

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

Boss End

1шт.

8

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Face Seal End

1шт.

9

87397435

HOSE ASSY.

2280 mm (89-13/16 in); Tilt Cylinder Closed End

1шт.

10

87340255

CYLINDER ASSY.,Double Acting, 63.5mm Rod, 381mm Stroke

127 ID x 381 mm Stroke; Angle; See Figure 08-24

2шт.

10

87340255R

REMAN-HYD CYLINDER

1150K SERIES 3 CRAWLER DOZER TIER 3 (NA/EU) (10/06-)

2шт.

10

87340255C

CORE-HYD CYLINDER

Return Number

2шт.

11

201-326

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 7/8" - 14 Male ORB

Incl. Ref 12, 13

2шт.

12

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

Boss End

1шт.

13

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Face Seal End

1шт.

14

201-112

HYD CONNECTOR,13/16" - 16 Male ORFS x 7/8" - 14 Male ORB

Includes Ref 15, 16

2шт.

15

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

Boss End

1шт.

16

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Face Seal End

1шт.

17

87526407

HOSE ASSY.

650 mm (25-5/8 in); Right-Hand Angle Cylinder

2шт.

18

87526408

HOSE ASSY.

1140 mm (44-29/32 in); Left-Hand Angle Cylinder

2шт.

19

201-423

TEE,9/16"-18, Blkhd, Run, ORFS

Incl. Ref 20; Bulkhead

2шт.

20

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Face Seal

3шт.

21

201-903

TUBE NUT,Blkhd, 13/16"-16

2шт.

22

87397433

HOSE ASSY.,12.7mm ID x 2080mm L, SAE 100R16

2080 mm (81-29/32 in); Angle

2шт.

23

87532538

GUARD

1040 mm Hose Sleeve

2шт.

24

L18331

CABLE TIE,375.9mm L, Nylon

CABLE STRAP

4шт.

25

123171A1

LARGE PLATE

PLATE, LARGE Clamp

4шт.

26

827-10080

BOLT,Hex, M10 x 1.5 x 80mm, Cl 10.9

4шт.

27

892-11010

LOCK WASHER,M10

4шт.

28

87386441

SPACER

8шт.

29

87394488

HOSE CLAMP

1шт.

30

87394489

HOSE CLAMP

1шт.

31

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

1шт.

32

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

1шт.

33

827-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

2шт.

34

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

2шт.

35

122958A1

SQUARE NUT

Square, M10

2шт.

36

336371A1

PIN,4.88mm OD x 14.23mm L

Nut Retainer

2шт.
