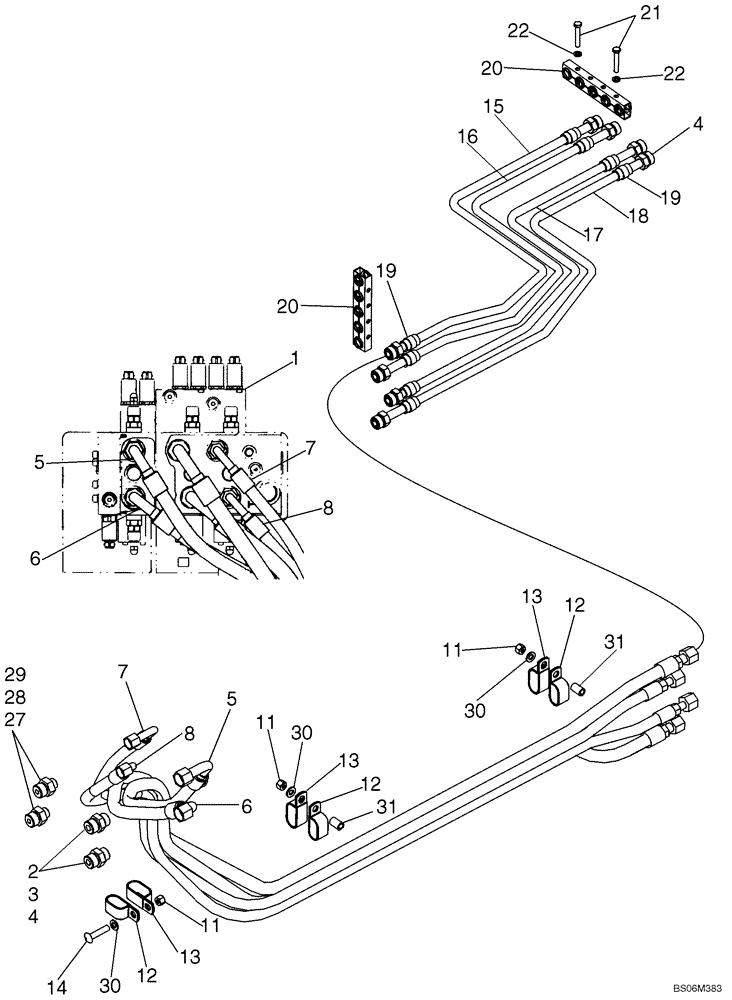

Запчасти Case 1150K (08-06) - HYDRAULICS - TILT AND ANGLE CIRCUITS (AT VALVE) (08) - HYDRAULICS

REF

INSTRUCTION

AT CONTROL VALVE

1шт.

1

87341633

CONTROL VALVE

Three Spool; See Figure 08-15

1шт.

1

87341634

CONTROL VALVE

Four Spool; See Figure 08-18

1шт.

2

201-131

HYD CONNECTOR,1"-12 ORFS x 9/16"-18 ORB

Incl. Ref 3, 4; Angle Ports

2шт.

3

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Boss End

1шт.

4

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Face Seal End

9-1шт.

5

87341646

HOSE ASSY.

2200 mm (86-5/8 in); Angle; Upper Port to Angle Cylinder Rod End

1шт.

6

87341647

HOSE ASSY.

2190 mm (86-1/4 in); Angle; Lower Port

1шт.

7

87523780

HOSE ASSY.

2200 mm (86-5/8 in); Tilt; Upper Port to Tilt Cylinder Rod End

1шт.

8

87523779

HOSE ASSY.

2070 mm (81-1/2 in); Tilt; Lower Port

1шт.

11

832-10410

NUT,M10 x 1.5, Cl 8

3шт.

12

H434289

MOUNTING CLIP,7/8”, Insulated, 1/2” Bolt

Double, 22.2 dia

3шт.

13

D39696

CLAMP,25.40mm - 13.49mm Bolt, CTD

Double, 25.4 dia

3шт.

14

811-10050

CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 50mm, Cl 8.8

1шт.

15

87341652

TUBE,0.625" OD

Angle

1шт.

16

87341655

TUBE,0.625" OD

Tilt

1шт.

17

87341653

TUBE,0.625" OD

Tilt

1шт.

18

87341651

TUBE,0.625" OD

Angle

1шт.

19

R58328

BUSHING

8шт.

20

R41743

CLAMP

4-2шт.

21

43130

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

4шт.

22

83990583

LOCK WASHER,M8 x 14.8mm OD x 2.1mm Thk

4шт.

27

201-128

HYD CONNECTOR,13/16"-16 ORFS x 1 1/16"-12 ORB

Incl. Ref 28, 29; Tilt Ports

2шт.

28

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Boss End

1шт.

29

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Face Seal End

1шт.

30

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

3шт.

31

87036413

SPACER,10.34mm ID x 15.88mm OD x 23.8mm L

2шт.
