Запчасти Case 1150K (08-05) - HYDRAULICS - LIFT CIRCUIT (08) - HYDRAULICS

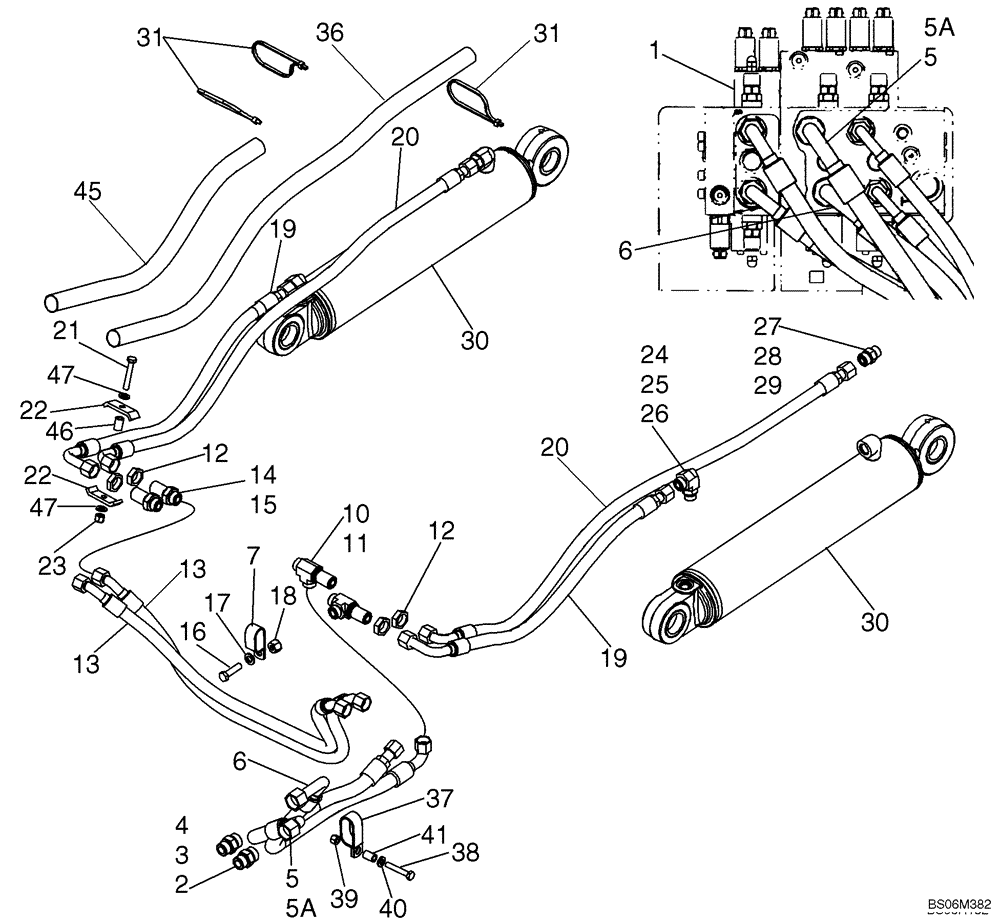

Схема запчастей Case 1150K - (08-05) - HYDRAULICS - LIFT CIRCUIT (08) - HYDRAULICS
37
3
39
20
6
7
5
19
12
4
45
25
41
5
19
22
16
47
14
23
47
6
17
31
13
20
11
29
5a
1
16
46
30
30
26
21
15
28
22
36
10
40
24
5a
31
12
38
18
2
27

Артикул

Название

Примечание

Количество

1

87341633

CONTROL VALVE

Three Spool; See Figure 08-15

1шт.

1

87341634

CONTROL VALVE

Four Spool; See Figure 08-18

1шт.

2

201-104

HYD CONNECTOR,1-3/16" - 12 Male ORFS x 1-1/16" - 12 Male ORB

Includes Ref. 3, 4

2шт.

3

237-6011

O-RING,0.116" Thk x 0.863" ID, -911, Cl 6, 90 Duro

Boss End

1шт.

4

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face Seal End

1шт.

5

87341642

HOSE ASSY.

770 mm (30-5/16 in); Upper Port Of Control Valve to Cylinder Rod End; No Longer Available, Order Ref 5A, 87604624, Hose Assy, 750 mm (29 1/2 In)

1шт.

5a

87604624

HOSE ASSY.

Hose Assy,775 mm (30 1/2 In.); Hose Length Changed From 750 mm (29 1/2 In) to 775 mm (30 1/2 In); Upper Control Valve to Cylinder Rod End

1шт.

6

87341641

HOSE ASSY.

662 mm (26-1/16 in); Lower Port Of Control Valve

1шт.

7

D39696

CLAMP,25.40mm - 13.49mm Bolt, CTD

2шт.

10

201-429

TEE,1" - 14 ORFS x 1" - 14 ORFS x 1" - 14 ORFS

Incl. Ref 11

2шт.

11

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

12

201-919

BHD LOCK NUT,1" - 14

5/8" OD Tube

4шт.

13

87341643

HOSE ASSY.

1120 mm (44-3/32 in); Crossover

2шт.

14

201-123

HYD CONNECTOR,1"-14, Blkhd, ORFS

Incl. Ref 15

2шт.

15

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Face Seal End

2шт.

16

614-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 8.8, Full Thd

2шт.

17

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

4шт.

18

832-10412

NUT,M12 x 1.75, Cl 8

2шт.

19

87342155

HOSE ASSY.

711 mm (28 in); Closed End

2шт.

20

87342156

HOSE ASSY.

1183 mm (46-5/8 in); Rod End

2шт.

21

827-10060

BOLT,Hex, M10 x 1.5 x 60mm, Cl 10.9

2шт.

22

D40236

CLAMP

4шт.

23

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

24

201-306

90 ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x 7/8" - 14 Male ORB

90 deg; Incl. Ref 25, 26

2шт.

25

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

Boss End

1шт.

26

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Face Seal End

1шт.

27

201-103

HYD CONNECTOR,1" - 14 Male ORFS x 7/8" - 14 Male ORB

Includes Ref 28, 29

2шт.

28

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

Boss End

1шт.

29

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Face Seal End

1шт.

30

87340259

CYLINDER ASSY.,Double Acting, 50.8mm Rod, 445mm Stroke

108 ID x 445 mm Stroke; Lift; See Figure 08-22

2шт.

30

84390355R

REMAN-HYD CYLINDER

Reman Cylinder for PN 87340259

2шт.

84390355C

CORE-HYD CYLINDER

Return Number

1шт.

31

L18331

CABLE TIE,375.9mm L, Nylon

CABLE STRAP 15"

6шт.

36

87342403

HYD CYL SLEEVE

1130 mm (44-1/2 in)

2шт.

37

242999A1

CLAMP

1шт.

38

814-10060

BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8

1шт.

39

832-10410

NUT,M10 x 1.5, Cl 8

1шт.

40

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

1шт.

41

87036413

SPACER,10.34mm ID x 15.88mm OD x 23.8mm L

1шт.

45

87342402

HYD CYL SLEEVE

660 mm (26 in)

2шт.

46

87036413

SPACER,10.34mm ID x 15.88mm OD x 23.8mm L

2шт.

47

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

If Used

4шт.

Выбрано товаров: 42
