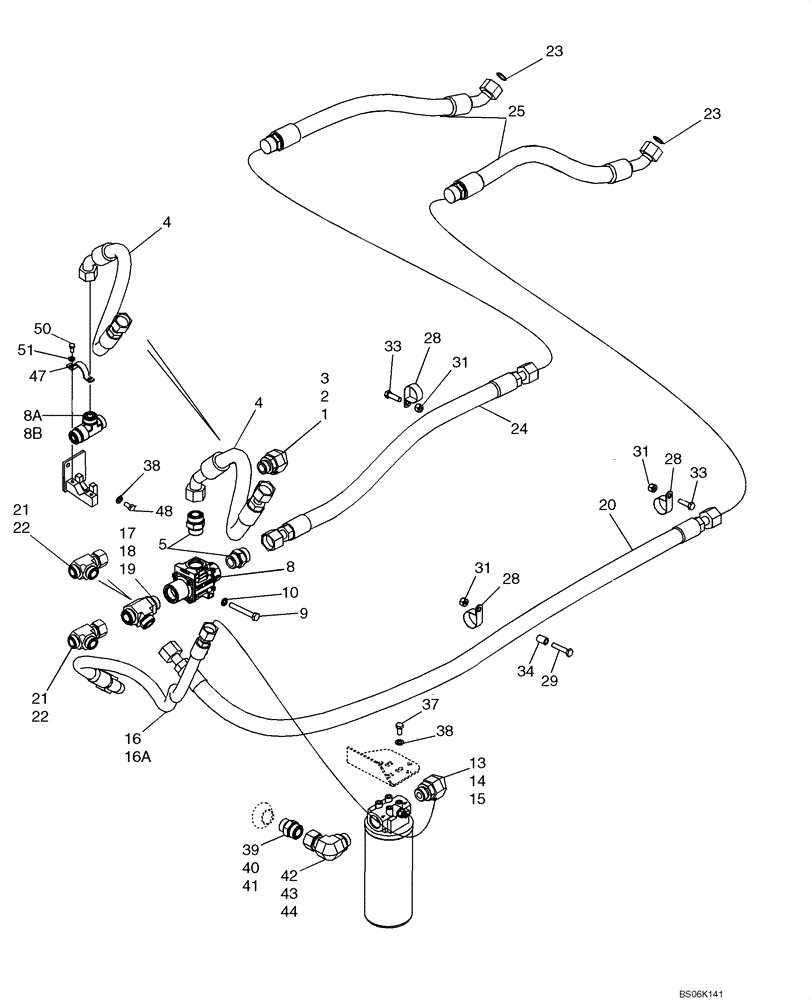

Запчасти Case 1150K (08-04) - HYDRAULICS, EQUIPMENT - CONTROL VALVE TO THERMAL BYPASS VALVE AND FILTER (08) - HYDRAULICS

1

201-308

ELBOW,90 Degree Elbow, 1-7/16" - 12 Male ORFS x 1-5/16" - 12 Male ORB

Incl. Ref 2, 3; At Control Valve

1шт.

2

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

Boss End

1шт.

3

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

Face Seal End

1шт.

4

87337476

HOSE ASSY.

1140 mm (44-29/32 in); Control Valve To Thermal Bypass Valve

1шт.

5

201-105

HYD CONNECTOR,1-7/16" - 12 Male ORFS x 1-5/16" - 12 Male ORB

Incl. Ref 6, 7; Use W/ Ref 8

2шт.

6

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

Boss End; Use w/ Ref 5

1шт.

7

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

Face Seal End; Use W/ Ref 5

1шт.

8

87535085 Thermal Bypass Valve; See Figure 08-11; No Longer Available, Order 87578785 Check Valve Tee, Ref 8A

1шт.

8a

87578785

BY-PASS VALVE

Incl Ref 8B

1шт.

8b

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

O-Ring Face Seal End

3шт.

9

43252

BOLT,Hex, M10 x 1.5 x 80mm, Cl 10.9

2шт.

10

86625251

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

2шт.

13

201-355

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x 1-5/16" - 12 Male ORB

Incl. Ref 14, 15

1шт.

14

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

Boss End

1шт.

15

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face Seal End

1шт.

16

87337477

HOSE ASSY.

1750 mm (68-29/32 in); Tank Filter To Thermal Bypass Valve; For Models W/ PTO; No Longer Available, Order 87531765 Ref 16A

1шт.

16a

87531765

HOSE ASSY.

1750 mm (68-29/32 in); Tank Filter To Thermal Bypass Valve

1шт.

17

201-407

TEE,1 7/16"-12 x 1 5/16"-12 Run, ORFS

Incl. Ref 18, 19; If Used

1шт.

18

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

Boss End; Use w/ Ref 17

1шт.

19

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

Face Seal End; Use W/ Ref 17

2шт.

20

87398812

HOSE ASSY.

1821 mm (71-3/4 in); Thermal Bypass Valve To Cooler

1шт.

21

201-418

TEE,1-7/16" - 12 ORFS x 1-7/16" - 12 ORFS x 1-7/16" - 12 ORFS

Incl. Ref 22; If Used

2-1шт.

22

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

Face Seal End

4-2шт.

23

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

2шт.

24

87398811

HOSE ASSY.

877 mm (34-17/32 in); Cooler To Thermal Bypass Valve

1шт.

25

87378347

HOSE ASSY.

787 mm (31 in); Extension

1шт.

28

87301688

CLAMP,41.2mm, Coat, P Type

3шт.

29

814-10050

BOLT,Hex, M10 x 1.5 x 50mm, Cl 8.8

1шт.

31

412141

NUT,M10 x 1.5, Cl 8

3шт.

33

614-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

2шт.

34

87036413

SPACER,10.34mm ID x 15.88mm OD x 23.8mm L

1шт.

36

87331818

FILTER ASSY

Hydraulic Oil; See Figure 06-08

1шт.

37

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

4шт.

38

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

6-4шт.

39

201-105

HYD CONNECTOR,1-7/16" - 12 Male ORFS x 1-5/16" - 12 Male ORB

Incl. Ref 40, 41

1шт.

40

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

Face Seal End

1шт.

41

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

Boss End

1шт.

42

201-393

ELBOW,90 Degree, 1 7/16"-12 Adj x 1 7/16"-12 Fem Sw, ORFS

Incl. Ref 43, 44

1шт.

43

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

Face Seal End

1шт.

44

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

Boss End

1шт.

45

87429176

STRAP

Blue, 203 mm (8 inch)

1шт.

46

87585367

BRACKET

Bracket W/ Check Tee Mount

1шт.

47

87590350

BRACKET

Bracket, Check Valve Mount

1шт.

48

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

2шт.

50

627-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

2шт.

51

895-1108

WASHER

2шт.
