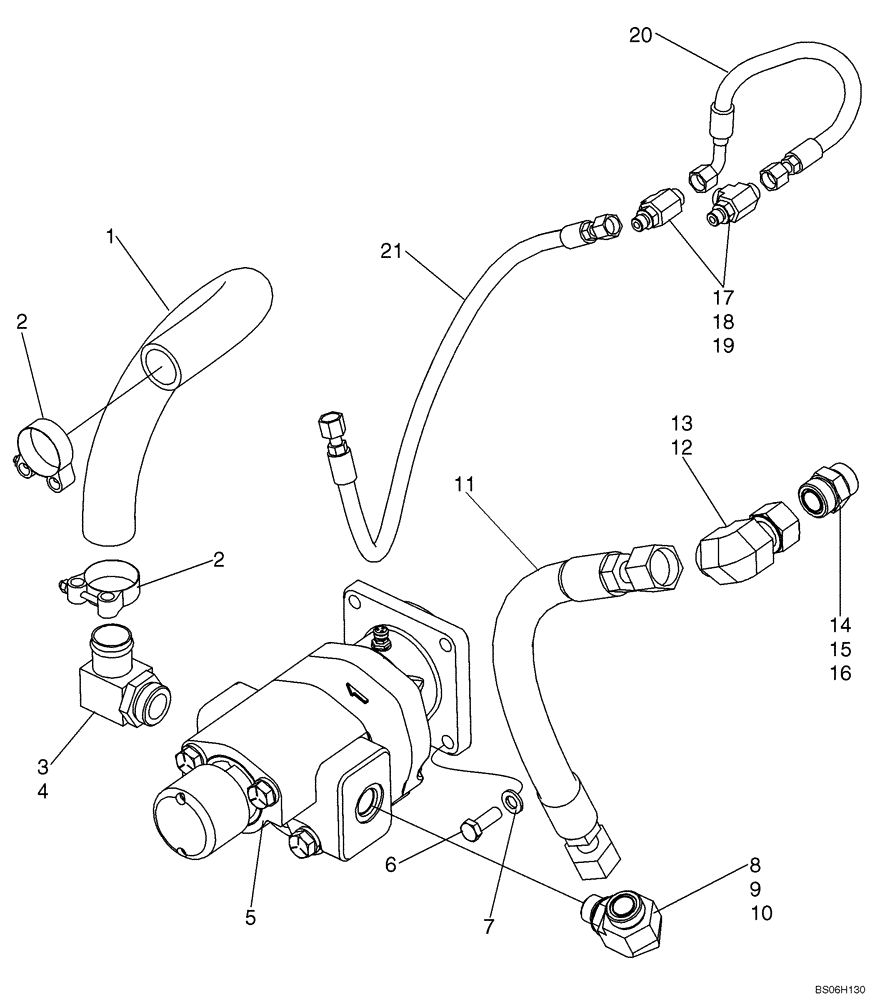

Запчасти Case 1150K (08-03) - HYDRAULICS, EQUIPMENT (WITH PTO) - RESERVOIR TO PUMP AND CONTROL VALVE (08) - HYDRAULICS

1

87337487

HOSE ASSY.

900 mm (35-7/16 in); At Tank; Attaches to 426784A1 Suction Filter in Hydraulic Reservoir

1шт.

2

214-2130

CLAMP,#30, 1.81"-2.06", T-Bolt

Incl. Hardware;

2шт.

3

217-365

FITTING,90 Degree Elbow, 1-1/2" Hose Barb x 1-5/8" - 12 Male ORB

Incl. Ref 4

1шт.

4

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

1шт.

5

87331905

HYDROSTATIC PUMP,65.6 CC

Equipment; Models With PTO; See Figure 08-13

1шт.

87331905R

REMAN-HYDROSTAT PUMP

1150K SERIES 3 CRAWLER DOZER TIER 3 (NA/EU) (10/06-)

1шт.

87331905C

CORE-HYDROSTAT PUMP

Return Number

1шт.

6

300389

BOLT,M12 x 1.75 x 35mm, Cl 8.8

4шт.

7

86625255

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

4шт.

8

201-313

ELBOW,90 Degree, 1 7/16"-12 x 1 1/16"-12, Adj, ORFS

Incl. Ref 9, 10

1шт.

9

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

Face Seal End

1шт.

10

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Boss End

1шт.

11

87337489

HOSE ASSY.

630 mm (24-13/16 in); Equipment Pump to Control Valve

1шт.

12

201-339

ELBOW,90 Degree Elbow, 1-7/16" - 12 Male ORFS x 1-7/16" - 12 Female ORFS

Incl. Ref 13

1шт.

13

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

Face Seal End

1шт.

14

201-105

HYD CONNECTOR,1-7/16" - 12 Male ORFS x 1-5/16" - 12 Male ORB

Incl. Ref 15, 16

1шт.

15

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

Face Seal End

1шт.

16

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

Boss End

1шт.

17

87305436

HYD CONNECTOR

Tee Includes Ref 18, 19

2-1шт.

18

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face Seal End

2шт.

19

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

Boss End

1шт.

20

87533710

HOSE ASSY.

385 mm (15-5/32 in); Accumulator Drain

1шт.

21

87590708

HOSE ASSY.

Control Valve to Tank; Replaces 87369671

1шт.
