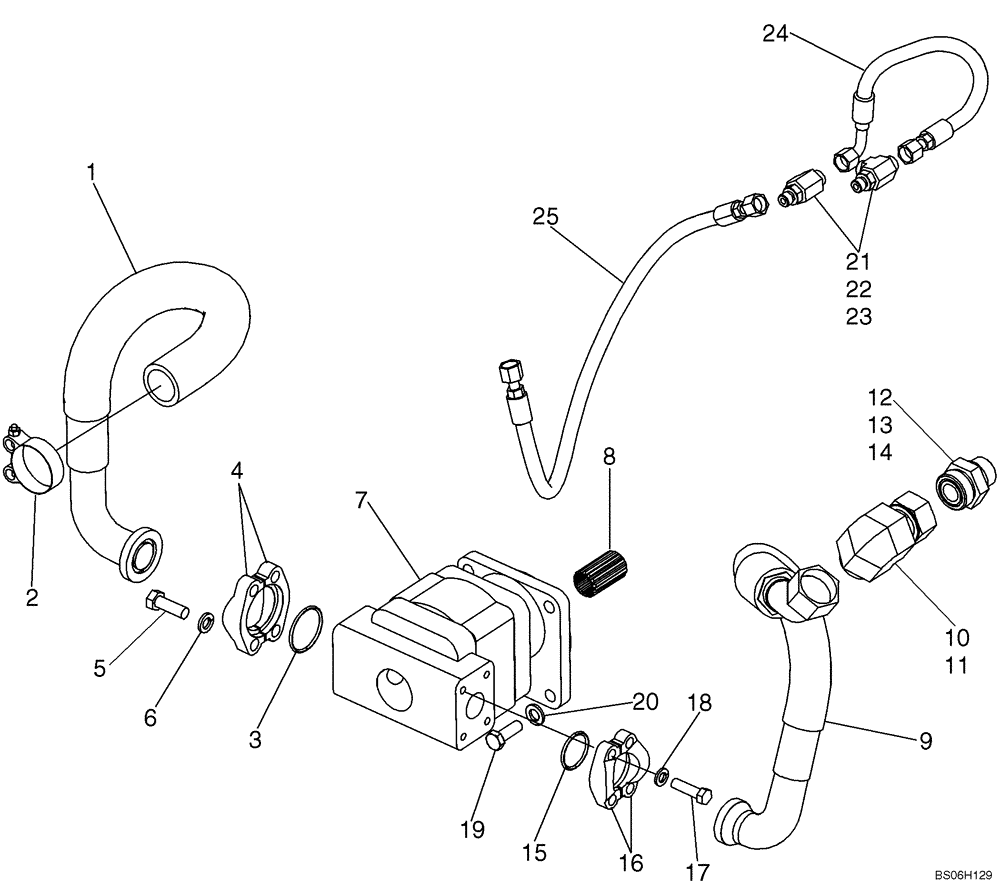

Запчасти Case 1150K (08-02) - HYDRAULICS, EQUIPMENT (WITHOUT PTO) - RESERVOIR TO PUMP AND CONTROL VALVE (08) - HYDRAULICS

1

87337475

HOSE ASSY.

895 mm (35-1/4 in); At Tank; Attaches to 426784A1 Suction Filter in Hydraulic Reservoir

1шт.

2

214-2134

CLAMP,#34, 1.94"-2.25", T-Bolt

Incl. Hardware; If Used

1шт.

2

214-2130

CLAMP,#30, 1.81"-2.06", T-Bolt

Incl. Hardware; If Used

1шт.

3

238-6225

O-RING,0.139" Thk x 1.859" ID, -225, Cl 6, 90 Duro

1шт.

4

A14157

FLANGE

1-1/2

2шт.

5

87689

BOLT,1/2"-13 x 1.813" OAL, Gr 5

4шт.

6

80679

LOCK WASHER,1/20.507 CST ZND

4шт.

7

87604362

HYDRAULIC PUMP

Hydraulic Pump Equipment; W/ Outer Seal Rating Of 125 psi; Replaces R58775, W/ Outer Seal Rating of 25 psi; Used On Some Models; Also See Fig 08-12

1шт.

7

87604362R

REMAN-HYD PUMP

1150K SERIES 3 CRAWLER DOZER TIER 3 (NA/EU) (10/06-)

1шт.

7

87604362C

CORE-HYDRAULIC PUMP

Return Number

1шт.

8

87324775

SPACER

Spline

1шт.

9

87337474

HOSE ASSY.

650 mm (25-5/8 in); Suction, Equipment Pump

1шт.

10

201-359

ELBOW,90 Degree Elbow, 1-11/16" - 12 Male ORFS x 1-11/16" - 12 Female ORFS

Incl. Ref 11

1шт.

11

238-6025

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

Face Seal End

1шт.

12

201-134

HYD CONNECTOR,1 11/16"-12 ORFS x 1 5/16"-12 ORB

Incl. Ref 13, 14

1шт.

13

238-6025

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

Face Seal End

1шт.

14

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

Boss End

1шт.

15

238-5222

O-RING,0.139" Thk x 1.48" ID, -222, Cl 5, 75 Duro

1шт.

16

A12301

CLAMP,Half

1-1/4

2шт.

17

9637916

BOLT,Hex, 7/16" - 14 x 1 1/2", Gr 5

4шт.

18

81547

LOCK WASHER,7/16"

4шт.

19

300389

BOLT,M12 x 1.75 x 35mm, Cl 8.8

4шт.

20

86625255

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

4шт.

21

87305436

HYD CONNECTOR

Tee Incl. Ref 22, 23

2шт.

22

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face Seal End

2шт.

23

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

Boss End

1шт.

24

87533710

HOSE ASSY.

385 mm (15-5/32 in); Accumulator Drain

1шт.

25

87590708

HOSE ASSY.

Hose Assy; Control Valve to Tank; Replaces 87369671

1шт.
