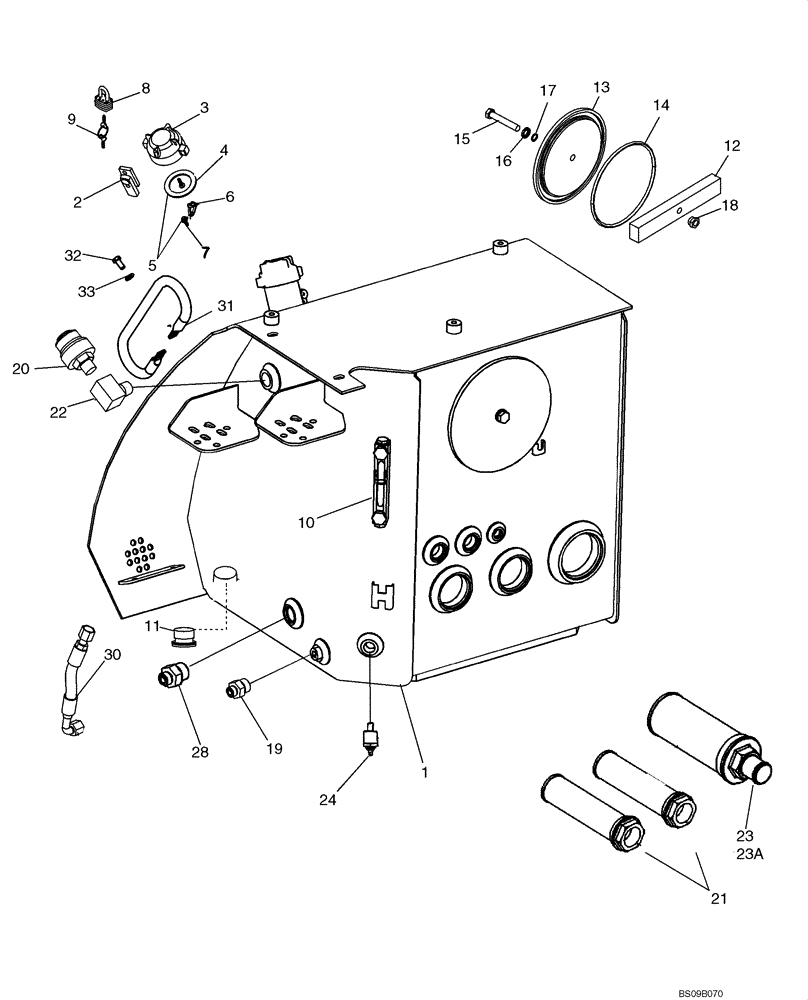

Запчасти Case 1150K (08-01A) - RESERVOIR, HYDRAULIC - COVERS (IF USED) (08) - HYDRAULICS

REF

INSTRUCTION

INSTRUCTION, DIFFERENCE IN TANKS ARE THE LIFTING BOSSES ON THE TOP OF THE TANKS; THESE HAVE THEM. FOR OTHER OPTIONS SEE FIGURE 08-01

1шт.

87695125

TANK, HYDRAULIC OIL

Complete; Incl. Ref 1 - 19; See Figure 09-09 For Mounting

1шт.

1

NSS

NOT SOLD SEPARAT

Unpainted; Incl. Ref 2

1шт.

2

R46704

BRACKET

Tab; Fill Tube; Weld-On Fill Tube

1шт.

3

L128669

CAP

Fill Tube

1шт.

4

87557921

GASKET,43mm ID x 61mm OD x 3mm Thk

1шт.

5

301-14712

SCREW,Drive, #12 x 3/4"

2шт.

6

R48634

FASTENER

Hook; Swivel

1шт.

7

R47786

CHAIN (CE)

241 mm (9-1/2 in)

1шт.

8

D93753

PADLOCK

Incl. 9

1шт.

9

R29555

KEY

For Master Padlock Only

2шт.

9

D93751

SET OF 2 KEYS

For Yale Padlock Only

2шт.

10

226456A1

LEVEL GAUGE

Sight; Component Parts Not Serviced Separately; Use with Loctite 243 Adhesive Thread

1шт.

238-6114

O-RING,0.103" Thk x 0.612" ID, -114, Cl 6, 90 Duro

Use with Gauge

4шт.

11

86512333

PLUG

PLUG, O-Ring Boss Socket Head Plug, Includes O-Ring 570186, Use With Loctite 592

1шт.

12

L50741

BAR

Holddown

1шт.

13

L128352

COVER

Access

1шт.

14

238-5442

O-RING,0.275" Thk x 7.22" ID, -442, Cl 5, 75 Duro

1шт.

15

113-2462

BOLT,Hex, 1/2" - 13 x 3", Gr 5

1шт.

16

238-5112

O-RING,0.103" Thk x 0.487" ID, -112, Cl 5, 75 Duro

1шт.

17

L78045

WASHER

1шт.

18

131-510

LOCK NUT,1/2"-13

1шт.

19

217-465

DRAIN PLUG,Hex Soc, 1/2" - 14, NPTF

Use with Loctite 592

2шт.

20

R42714

BREATHER

Use With Loctite No. 592

1шт.

21

87346332

FILTER STRAINER

Suction Strainer, Mesh; 56.8 mm dia x 228.6 mm lg; Incl. Ref 21A

2шт.

21a

84153258

O-RING,3mm Thk x 59.4mm ID, 70 Duro

O-RING; Not Illustrated

1шт.

22

221-1415

ELBOW,90 Degree, 3/4"-14, NPT

90 deg NPTF Male/Female; Use With Loctite 592

1шт.

23

426784A1

FILTER STRAINER

Strainer, Suction; Mesh; 81.8 mm dia x 261.6 mm lg; Incl. Ref 23A

1шт.

23a

84153256

O-RING,3mm Thk x 83mm ID, 70 Duro

O-RING, Replaces 510137, .139 x 3.234 236 5 Used On Some Models

1шт.

24

A166057

TEMPERATURE SENDER,1/2" - 14 NPTF

Transmission Oil; Use With Loctite No. 592

1шт.

28

201-128

HYD CONNECTOR,13/16"-16 ORFS x 1 1/16"-12 ORB

1шт.

30

435014A1

HOSE ASSY.

Charge Filter Bypass

1шт.

31

87694407

HANDLE

1шт.

32

614-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

2шт.

33

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

2шт.
