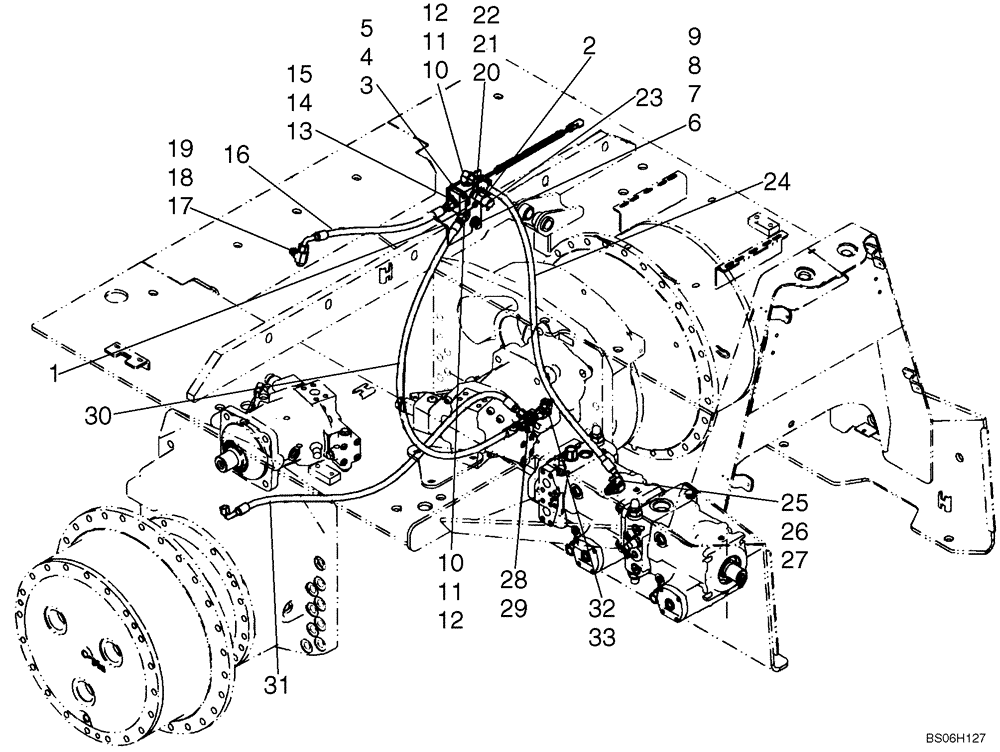

Запчасти Case 1150K (07-03) - BRAKE LINES (07) - BRAKES

1

87584551

BRACKET

Solenoid Mount Bracket

1шт.

2

87327451

SOLENOID VALVE

Brake; Solenoid; Component Parts Not Serviced Separately

1шт.

3

614-6050

BOLT,Hex, M6 x 1 x 50mm, Cl 8.8, Full Thd

2шт.

4

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

5

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

2шт.

6

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

Replaces 120080, M12 x 45 Gr 8.8, Used on some models

1шт.

7

86625254

WASHER,13.5mm ID x 28mm OD x 2.5mm Thk

1шт.

8

87447306

SQUARE NUT,M12 x 21mm x 21mm x 11mm H ZND Cl 5A

Cage, M12; If Used

1шт.

9

336371A1

PIN,4.88mm OD x 14.23mm L

Nut Retainer; If Used

1шт.

10

201-304

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

Incl. Ref 11, 12

2шт.

11

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face Seal End

1шт.

12

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

Boss End

1шт.

13

201-101

HYD CONNECTOR,11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

Incl Ref 14, 15

1шт.

14

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face Seal End

1шт.

15

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

Boss End

1шт.

16

87337697

HOSE ASSY.

505 mm (19-29/32 in); Return To Tank

1шт.

17

87305436

HYD CONNECTOR

Incl. Ref 18, 19; Replaces 201-401

1шт.

18

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face Seal End

2шт.

19

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

Boss End

1шт.

20

201-100

HYD CONNECTOR,9/16" - 18 Male ORFS x 7/16" - 20 Male ORB

Incl. Ref 21, 22

1шт.

21

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

Face Seal End

1шт.

22

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

Boss End

1шт.

23

87368476

PRESSURE SWITCH

1шт.

24

87523719

HOSE ASSY.

975 mm (38-13/32 in); To Bottom G Port On Rear Tandem Pump

1шт.

25

201-345

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x 3/4" - 16 Male ORB

Incl. Ref 26, 27

1шт.

26

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face Seal End

1шт.

27

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

Boss end

1шт.

28

201-422

TEE,11/16"-16 ORFS x 11/16"-16 Fem Sw Run

Incl. Ref 29

1шт.

29

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face Seal End

2шт.

30

87337701

HOSE ASSY.

1320 mm (52 in); Valve To Motor

1шт.

31

87337700

HOSE ASSY.

1090 mm (42-15/16 in); Main Brake; To Final Drive

1шт.

32

201-319

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x 11/16" - 16 Female ORFS

Incl Ref 33

1шт.

33

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face Seal End

2шт.
