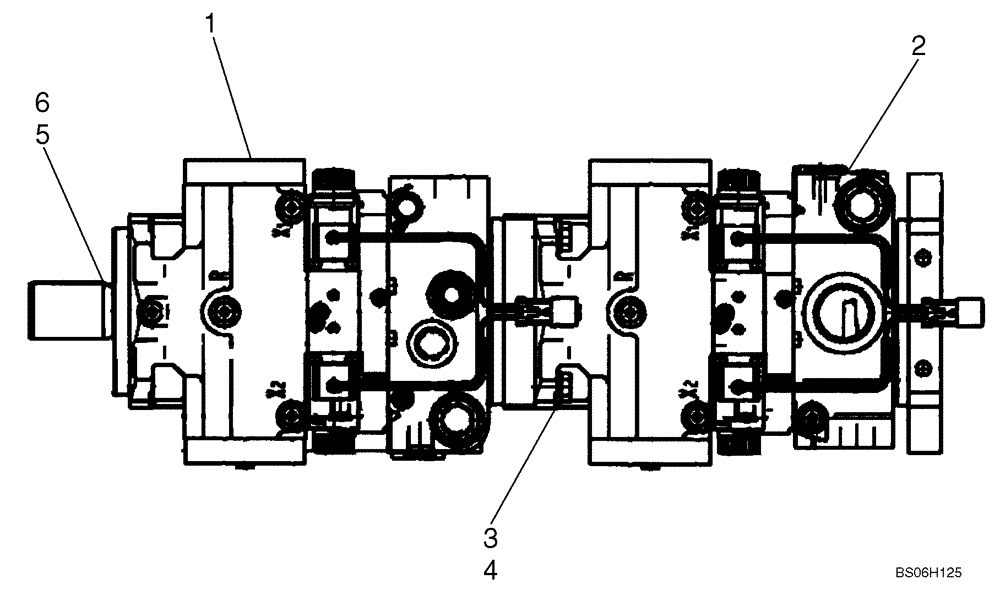

Запчасти Case 1150K (06-12) - PUMP ASSEMBLY, TANDEM (06) - POWER TRAIN

87313547

PUMP,90 CC

Tandem, Incl. Ref 1 - 6; Also Includes Parts On Figure 06-13

1шт.

87313547R

REMAN-HYDROSTAT PUMP

1150K TIER 3 (10/06-)

1шт.

87313547C

CORE-HYDROSTAT PUMP

Return Number

1шт.

1

NSS

NOT SOLD SEPARAT

Pump, Shaft End

1шт.

2

NSS

NOT SOLD SEPARAT

Pump, Rear

1шт.

3

87516827

SCREW,Hex, M12 x 30mm, Cl 8.8

M12 x 30

4шт.

4

87516828

WASHER

M12

4шт.

5

87516839

SEAL,50mm ID x 80mm OD x 7mm Thk

SEALRING 50 x 80 x 7/5 Internal Shaft Seal

2шт.

6

87441406

RING

2шт.
