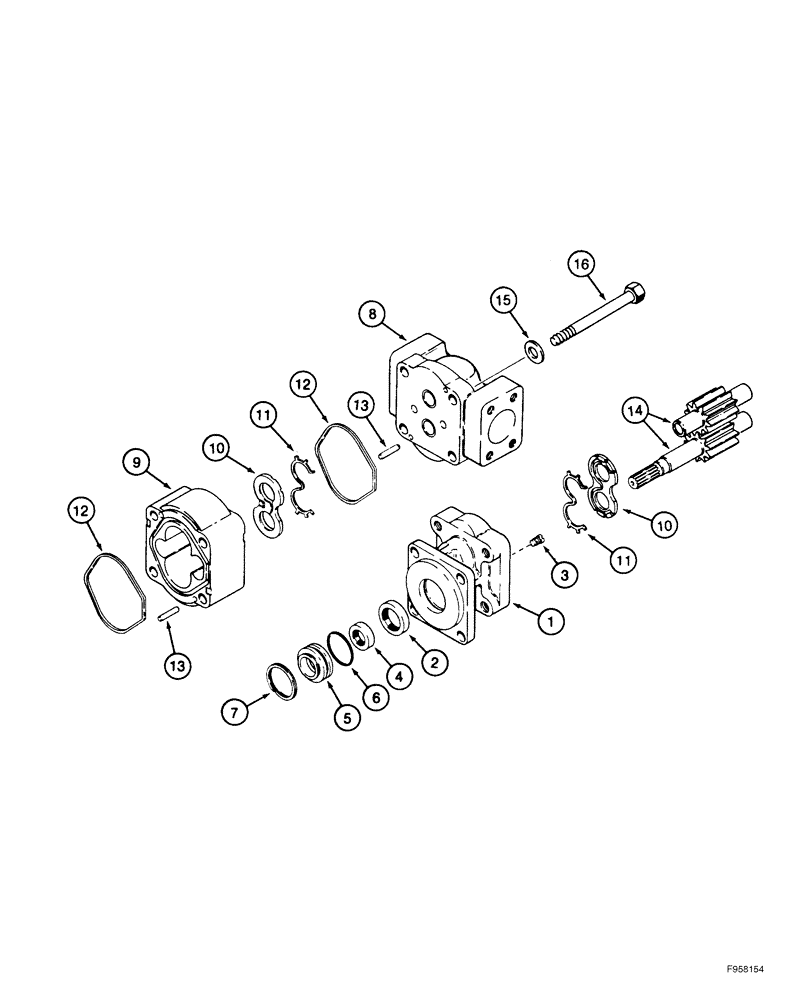

Запчасти Case 1150H_IND (08-05) - PUMP, GEAR (08) - HYDRAULICS

R58775

PUMP, HYDRAULIC

Equipment, Incl. 1 - 16

1шт.

1

107611A1

COVER ASSY

Shaft End, Incl. 1A

1шт.

1a

NSS

NOT SOLD SEPARAT

Bushing, Not Illustrated

2шт.

2

L32418

SEAL,26.99mm ID x 42.93mm OD x 7.92mm Thk

1шт.

3

L32320

PLUG

7/16 NF

2шт.

4

A24845

OIL SEAL

1шт.

5

N13580

RETAINER

1шт.

6

238-5134

O-RING,0.103" Thk x 1.862" ID, -134, Cl 5, 75 Duro

1шт.

7

102-23206

SNAP RING,#206, 2.190", Int, Spiral

No. 206

1шт.

8

107612A1

COVER ASSY

Closed End, Incl. 8A

1шт.

8a

NSS

NOT SOLD SEPARAT

Bushing, Not Illustrated

2шт.

9

N13581

HOUSING

Shaft End

1шт.

10

N13582

THRUST PLATE

2шт.

11

N13583

SEAL

2шт.

12

L32100

SEAL,Square, 3.17mm Thk x 101.6mm ID, 70 Duro

2шт.

13

W16323

DOWEL

4шт.

14

107613A1

GEAR-SET

Set Of Two, Shaft End

1шт.

15

19-488

WASHER

11/16 x 1-11/32 x 3/16

4шт.

16

13-1084

BOLT,Hex, 5/8" - 11 x 5-1/4", Gr 5

5/8 x 5-1/4

4шт.
