Запчасти Case 1150H_IND (08-04) - HYDRAULICS - EQUIPMENT (08) - HYDRAULICS

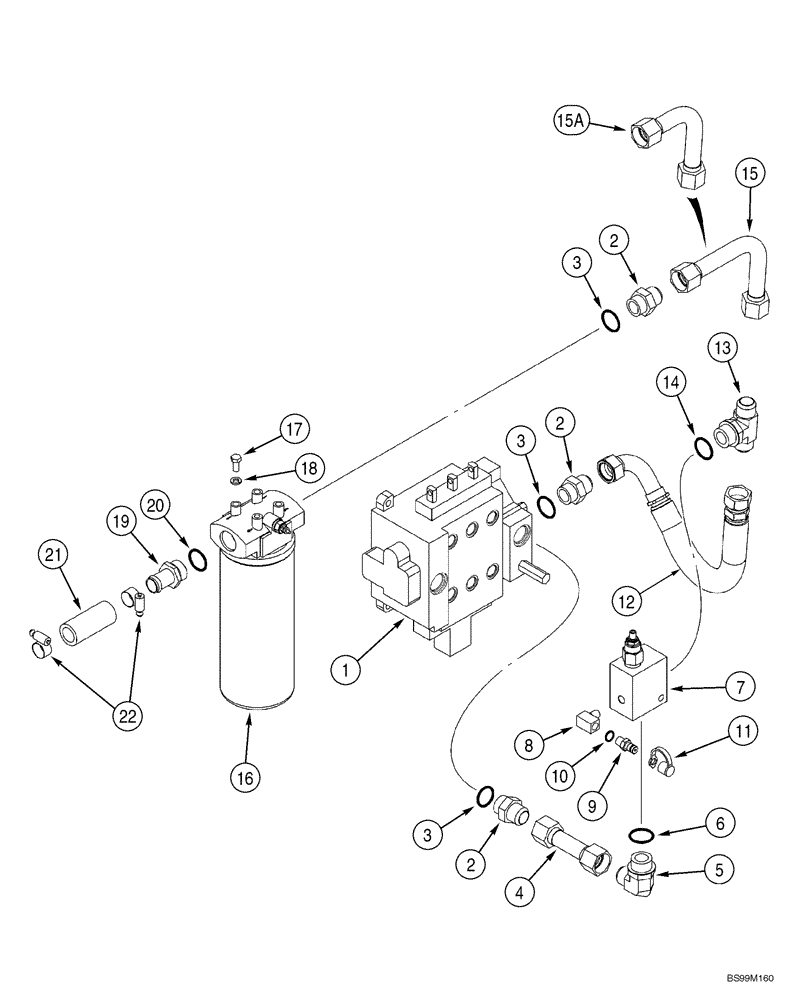

Схема запчастей Case 1150H_IND - (08-04) - HYDRAULICS - EQUIPMENT (08) - HYDRAULICS
11
5
19
7
21
22
2
16
15
18
10
14
20
8
4
9
2
1
13
3
3
3
12
17
2
6
15a

Артикул

Название

Примечание

Количество

Control Valve to Hydraulic Reservoir

1шт.

1

REF

INSTRUCTION

Valve, Control, See Figure 08-16

1шт.

2

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Incl. 3

3шт.

3

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

4

238795A1

TUBE,25.4 mm OD, 108 mm Length

Outlet Port

1шт.

5

218-5110

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Incl. 6

1шт.

6

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

7

235513A1

VALVE

Component Parts Not Serviced Separately

1шт.

8

217-1015

ELBOW,1/4" - 18 Female x 1/4" - 18 Male

1шт.

9

282063A1

NIPPLE, LUBE

NIPPLE Incl. 10

1шт.

10

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

11

H434163

DUST CAP

1шт.

12

369689A1

HOSE ASSY.

486 mm (19-3/16 in)

1шт.

13

218-5187

TEE,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Incl. 14

1шт.

14

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

15

369687A1

TUBE,25.4 mm OD, 140, 116 mm Length

Models With Three Spool Control Valve

1шт.

15a

369690A1

TUBE,25.4 mm OD, 140, 167 mm Length

Models With Four Spool Control Valve

1шт.

16

R54348

FILTER ASSY

See Figure 06-21

1шт.

17

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

18

492-11038

LOCK WASHER,3/8"

4шт.

19

217-179

FITTING,1" Hose Barb x 1-5/16" - 12 Male ORB

Includes 20

1шт.

20

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

21

D38435

HOSE,1" ID x 1 1/2" OD 3.5" L

89 mm (3-5/8 in), Cut From S118383X

1шт.

22

214-3128

HOSE CLAMP,1" - 1-7/8", HD Worm

1 - 1-7/8

2шт.

Выбрано товаров: 24
