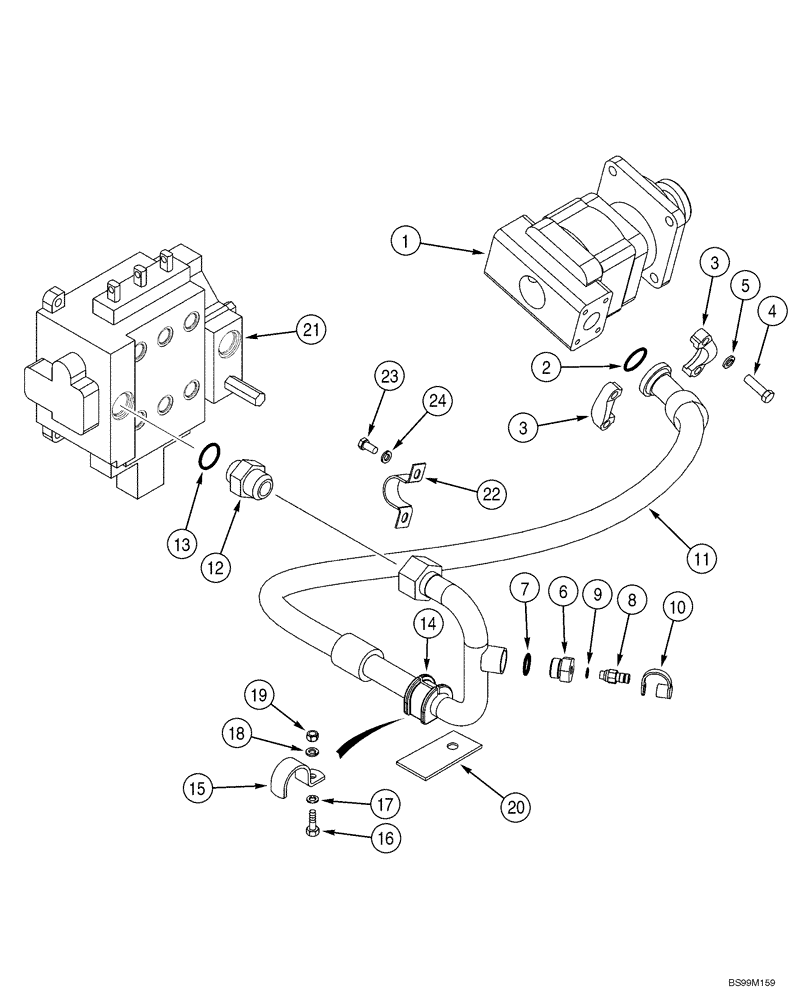

Запчасти Case 1150H_IND (08-03) - HYDRAULICS - EQUIPMENT (08) - HYDRAULICS

Pump to Control Valve

1шт.

1

REF

INSTRUCTION

Pump, Gear, See Figure 08-05

1шт.

2

238-5222

O-RING,0.139" Thk x 1.48" ID, -222, Cl 5, 75 Duro

1шт.

3

A12301

CLAMP,Half

2шт.

4

413-724

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

7/16 x 1-1/2

4шт.

5

492-11044

LOCK WASHER,7/16"

4шт.

6

218-5316

ADAPTER

3/4 x 1/4 fem PT, Incl. 7

1шт.

7

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

8

R55912

NIPPLE

Incl. 9

1шт.

9

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

10

H434163

DUST CAP

1шт.

11

233622A1

HOSE,25.4mm ID x 1398mm L

1шт.

12

218-5039

HYD CONNECTOR,1-5/8" - 12 Male JIC x 1-5/16" - 12 Male ORB

Incl. 13

1шт.

13

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

14

D67298

INSULATOR

1шт.

15

D68845

MOUNTING CLIP

1шт.

16

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

17

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(13/32 x 13/16 x 1/16")

1шт.

18

492-11038

LOCK WASHER,3/8"

1шт.

19

425-106

NUT,3/8"-16, Cl 5

1шт.

20

237062A1

SPACER

1шт.

21

REF

INSTRUCTION

Valve, Control, See Figure 08-16

1шт.

22

R54274

MOUNTING CLIP

1шт.

23

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

24

492-11038

LOCK WASHER,3/8"

2шт.
