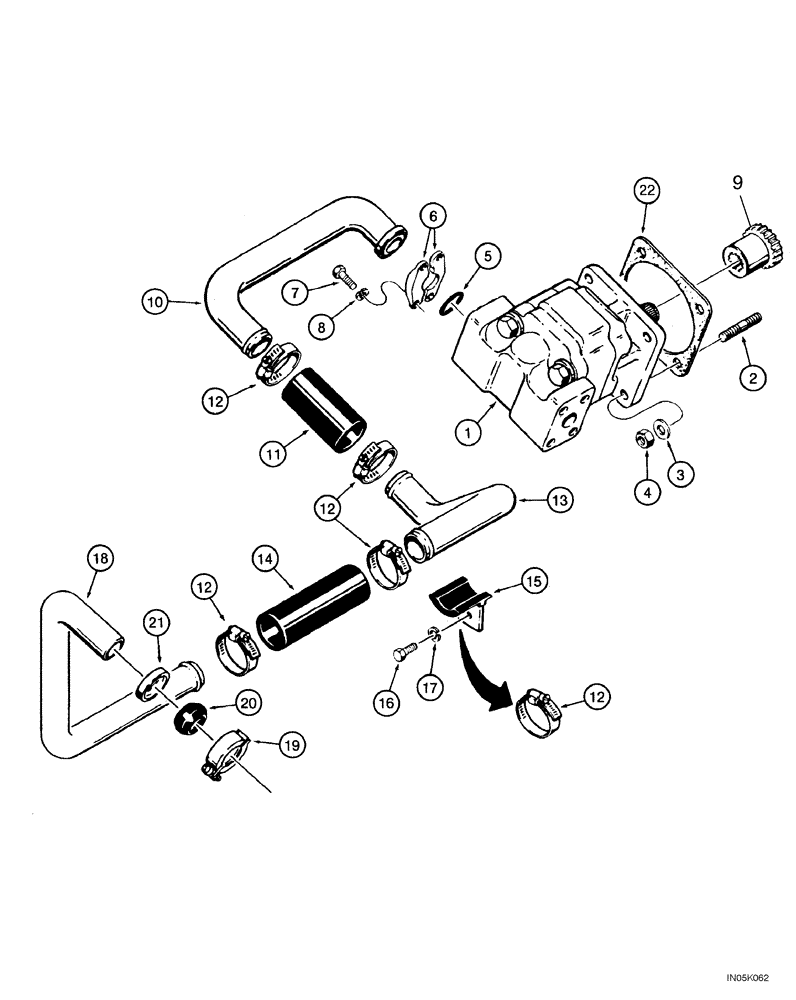

Запчасти Case 1150H_IND (08-02) - HYDRAULIC - EQUIPMENT (08) - HYDRAULICS

Reservoir To Pump

1шт.

1

R58775

PUMP, HYDRAULIC

See Figure 08-05

1шт.

2

R46073

STUD

1/2 x 2

4шт.

3

496-21053

WASHER,17/32" x 1 1/16" x .134"

4шт.

4

231-4218

LOCK NUT,1/2"-13, GB

1/2

4шт.

5

238-6225

O-RING,0.139" Thk x 1.859" ID, -225, Cl 6, 90 Duro

1шт.

6

A14157

FLANGE

2шт.

7

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

4шт.

8

80679

LOCK WASHER,1/20.507 CST ZND

4шт.

9

R58784

PINION

Pump Drive

1шт.

10

R45558

TUBE,50.8 - 60.5 mm OD x 317.5, 127 mm L

1шт.

11

R45493

HOSE,50.80 mm ID x 203.20 mm

Cut to 152 mm (6 in) Long

1шт.

12

214-3140

HOSE CLAMP,1-3/4" - 2-5/8", HD Worm

5шт.

13

291881A1

TUBE,50.8 mm OD, 241.3, 241.3 mm Length

1шт.

14

R45493

HOSE,50.80 mm ID x 203.20 mm

1шт.

15

R38740

BRACKET

1шт.

16

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

17

492-11038

LOCK WASHER,3/8"

1шт.

18

R49433

PIPE,2" OD

1шт.

19

R30064

CLAMP

1шт.

20

R30065

GASKET

1шт.

21

R30066

RETAINER

1шт.

22

D32004

GASKET

1шт.
