Запчасти Case 1150H_IND (08-01) - RESERVOIR, HYDRAULIC - COVERS (08) - HYDRAULICS

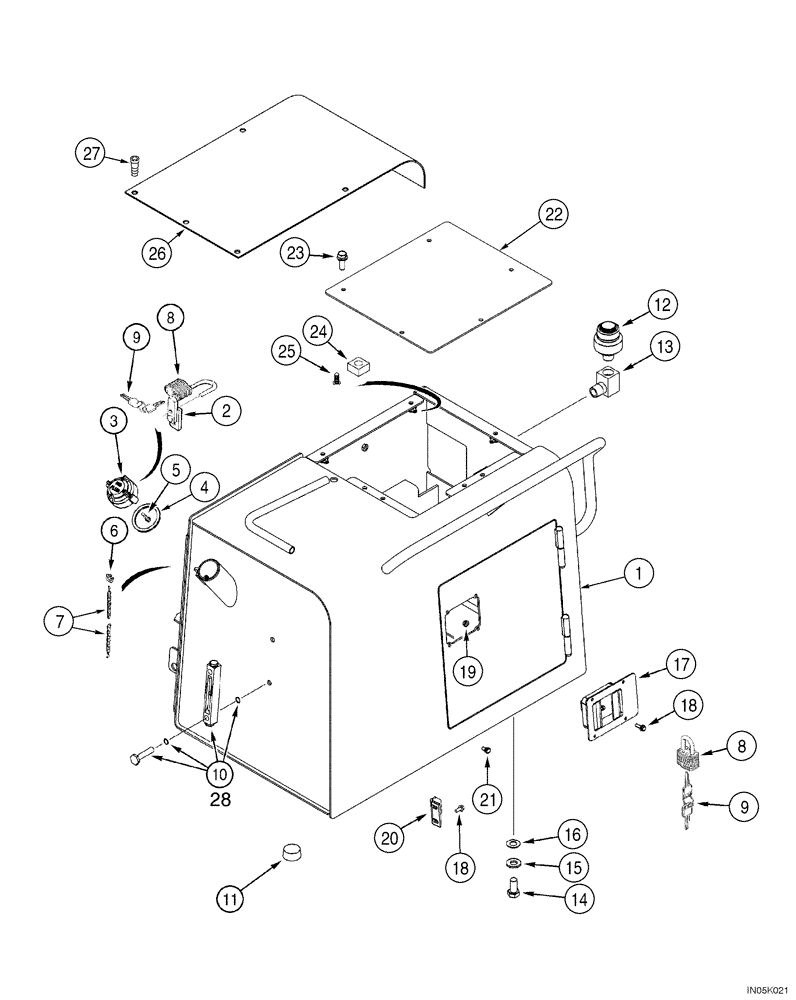

Схема запчастей Case 1150H_IND - (08-01) - RESERVOIR, HYDRAULIC - COVERS (08) - HYDRAULICS
9
19
10
3
9
8
14
28
4
12
26
2
23
18
15
13
1
18
20
11
8
27
7
16
21
5
6
24
17
22
25

Артикул

Название

Примечание

Количество

1

369676A2

TANK

With Grab Handle; Models Without Cab, Incl. 2

1шт.

1a

369707A2

TANK

Without Grab Handle; Models With Cab, Not Illustrated, Incl. 2

1шт.

2

R46704

BRACKET

Fill Tube, Weld-On

1шт.

3

L128669

CAP

Fill Tube

1шт.

4

R46984

GASKET

1шт.

5

301-14712

SCREW,Drive, #12 x 3/4"

2шт.

6

R48634

FASTENER

1шт.

7

R47786

CHAIN (CE)

241 mm (9-1/2 in)

1шт.

8

D93753

PADLOCK

Incl. 9

2шт.

9

R29555

KEY

For Master Padlock Only

2шт.

9

D93751

SET OF 2 KEYS

For Yale Padlock Only

2шт.

10

226456A1

LEVEL GAUGE

Component Parts Not Serviced Separately

1шт.

11

86637727

DRAIN PLUG,Sq Soc, 1 1/4"-11 1/2, NTPF

1-1/4, Use Loctite No. 592

1шт.

B17425

LOCTITE

No. 592, 50 ml

1шт.

12

R42714

BREATHER

Use Loctite No. 592

1шт.

B17425

LOCTITE

No. 592, 50 ml

1шт.

13

221-1415

ELBOW,90 Degree, 3/4"-14, NPT

3/4 PT

1шт.

14

413-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5

4шт.

15

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

4шт.

16

D44330

SHIM,.031" Thk

4шт.

17

R56221

LATCH

1шт.

18

458-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

6шт.

19

231-5344

FLANGE NUT,Flg, 1/4"-20

4шт.

20

R56397

LARGE PLATE

PLATE, LARGE

1шт.

21

A161780

BUMPER

2шт.

22

382210A1

COVER

Top, Models Without Cab

1шт.

23

160-102

BOLT,Hex, 3/8" - 16 x 1", Gr 8, Full Thd

Used with ref. 22

5шт.

24

224-2806

SQUARE NUT,Sq, 3/8"-16, G2, Hvy

3/8

4шт.

25

336371A1

PIN,4.88mm OD x 14.23mm L

Nut Retainer

4шт.

26

386985A1

COVER

Top, Models With Cab

1шт.

27

161-112

HEX SOC SCREW,Btn Hd, 5/16" - 18 x 1/2"

5/16 x 1/2; Used With REF 26

7шт.

28

345-199

ADHESIVE

1шт.

Выбрано товаров: 32
