Запчасти Case 1150H_IND (07-03) - BRAKES - TRANSMISSION (07) - BRAKES

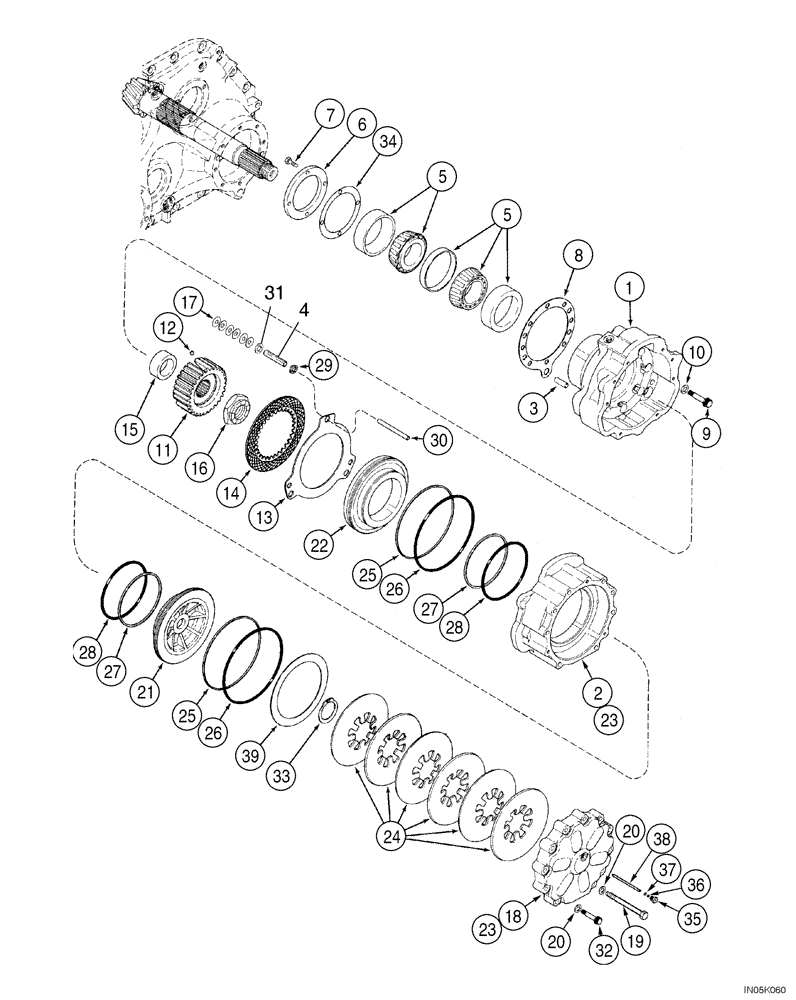

Схема запчастей Case 1150H_IND - (07-03) - BRAKES - TRANSMISSION (07) - BRAKES
24
28
21
27
1
15
36
34
25
20
39
16
11
18
27
5
8
3
5
38
29
13
14
23
17
7
28
2
25
26
6
33
20
26
12
19
32
9
31
4
10
23
22
30
35
37

Артикул

Название

Примечание

Количество

376308A1

TRANSMISSION

Incl. 1 - 39, For Complete Assembly, See Figure 06-04 - 06-16, 07-03

1шт.

1

1348984C2

HOUSING

Intermediate, See Figure 06-04

1шт.

2

1997049C1

HOUSING

Right Hand

1шт.

2a

1348960C2

HOUSING

Left Hand, Not Illustrated

1шт.

3

37-1860

DOWEL,3/4" x 3 3/4"

4шт.

4

139967A1

TUBE,12.7 mm OD, 65.13 mm Length

Self Adjuster

6шт.

5

1348834C1

TAPERED BEARING,53.98mm ID x 104.8mm OD x 73.46mm W

Paired, Consists Of Two Cups, Two Cones And A Center Retainer

2шт.

6

A50686

RETAINER

2шт.

7

107-9616

LOCK BOLT,Locking, 3/8"-16 x 1", G8, Full Thd

8шт.

8

A50688

SHIM,.005" Thk

(0.127 mm)

1шт.

8

A50687

SHIM,.007" Thk

(0.178mm)

1шт.

9

180-608

12 PT SCREW,Flg, 7/16" - 14 x 2 1/4", Gr 8

16шт.

10

A50689

WASHER

16шт.

11

139962A1

HUB

Incl. 12

2шт.

12

NSS

NOT SOLD SEPARAT

9/32, Ball

1шт.

13

1348965C3

LARGE PLATE

PLATE, LARGE

14шт.

14

G102354

PLATE

12шт.

15

A50691

SPACER

2шт.

16

131-468

NUT,1 1/2"-12

1-1/2-12

2шт.

17

1348985C1

SPRING

36шт.

18

139958A1

COVER

2шт.

19

107-9692

LOCK BOLT,Locking, 3/8"-16 x 5 3/4", G8

16шт.

20

396-21041

WASHER,10.31mm ID x 20.63mm OD x 2.26mm Thk

22шт.

21

1348971C2

PISTON

Parking Brake

2шт.

22

1348972C2

PISTON

Brake

2шт.

23

B17555

LOCTITE

No. 515, 50 ml

1шт.

24

1348986C1

SPRING

12шт.

25

1348992C1

SEAL

Large

4шт.

26

238-7167

O-RING,0.103" Thk x 6.987" ID, -167, Cl 7, 75 Duro

4шт.

27

1348903C1

SEAL

Small

4шт.

28

238-5159

O-RING,0.103" Thk x 4.987" ID, -159, Cl 5, 75 Duro

4шт.

29

100-1450

SNAP RING,#50, Ext

12шт.

30

37-1660

DOWEL,3/8" x 3 3/4"

6шт.

31

396-41041

WASHER,13/32" x 1 1/8" x .134", HDN

6шт.

32

180-618

12 PT SCREW,Flg, 3/8" - 16 x 2 1/4", Gr 8

6шт.

33

100-16193

SNAP RING,#193, Ext

2шт.

34

1348841C1

SHIM

0.08 mm (0.003 in)

1шт.

34

1348842C1

SHIM

0.13 mm (0.005 in)

1шт.

35

1997050C3

PLUG

2шт.

36

238-5006

O-RING,0.07" Thk x 0.114" ID, -6, Cl 5, 75 Duro

2шт.

37

100-2531

SNAP RING,0.312", Int, #31

2шт.

38

139966A1

PIN

2шт.

39

1348999C1

SPRING WASHER,146.8mm ID x 187mm OD x 1.05mm Thk

2шт.

238104A1

SEAL KIT

Kit, Incl. 8, 23, 25 - 28, 34, 36, 37, For Additional Components, See Figure 06-04 - 06-08, 06-10, 06-15

1шт.

Выбрано товаров: 44
