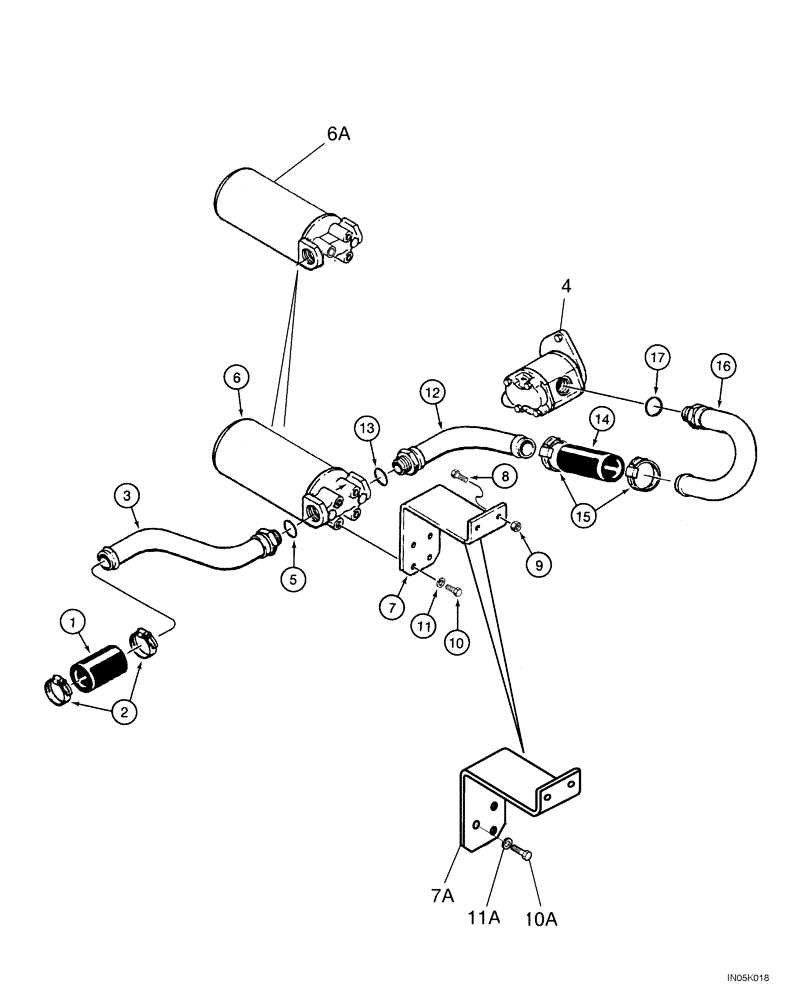

Запчасти Case 1150H_IND (06-19) - TRANSMISSION - CRAWLER CIRCUIT (06) - POWER TRAIN

Transmission Suction Line

1шт.

1

R43918

HOSE

114 mm ( 4-1/2 inch), Cut From, R45924, At Transmission

1шт.

2

214-3140

HOSE CLAMP,1-3/4" - 2-5/8", HD Worm

1-3/4 - 2-5/8, Replaces 214-176

2шт.

3

R52172

PIPE,38.1 mm OD

From Transmission

1шт.

5

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

1шт.

4

R25586

PUMP

Gear, See Figure 06-22

1шт.

6

R50627

FILTER

Suction, See Figure 06-21, Incl. Ref. 7; No Longer Available Order 409222A1, Ref. 6A

1шт.

6a

409222A1

HYDRAULIC OIL FILTER

Suction, See Figure 06-21, Incl. Ref. 7A

1шт.

7

R52169

SUPPORT

Suction Filter : Incl Ref. 10,11; If Used

1шт.

7a

411508A1

BRACKET

Suction Filter : Incl Ref. 10A,11A; If Used

1шт.

8

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

9

231-1446

NUT,3/8" - 16, Gr 5

2шт.

10

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

Used With Ref. 7

4шт.

10a

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

Used with Ref. 7A

3шт.

11

492-11031

LOCK WASHER,5/16"

Used with Ref. 7

4шт.

11a

492-11038

LOCK WASHER,3/8"

Used with Ref. 7A

3шт.

12

R52211

PIPE,38.1 mm OD x 117, 138 mm L

1шт.

13

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

1шт.

14

R43918

HOSE

114 mm ( 4-1/2 inch), To Pump, Cut From R45924

1шт.

15

214-3140

HOSE CLAMP,1-3/4" - 2-5/8", HD Worm

1-3/4 - 2-5/8, Replaces 214-176

2шт.

16

R27913

TUBE,38.1 mm OD x 152.4, 114.3 mm L

To Pump

1шт.

17

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.
