Запчасти Case 1150H_IND (06-15) - TRANSMISSION - HYDRAULIC LINES (06) - POWER TRAIN

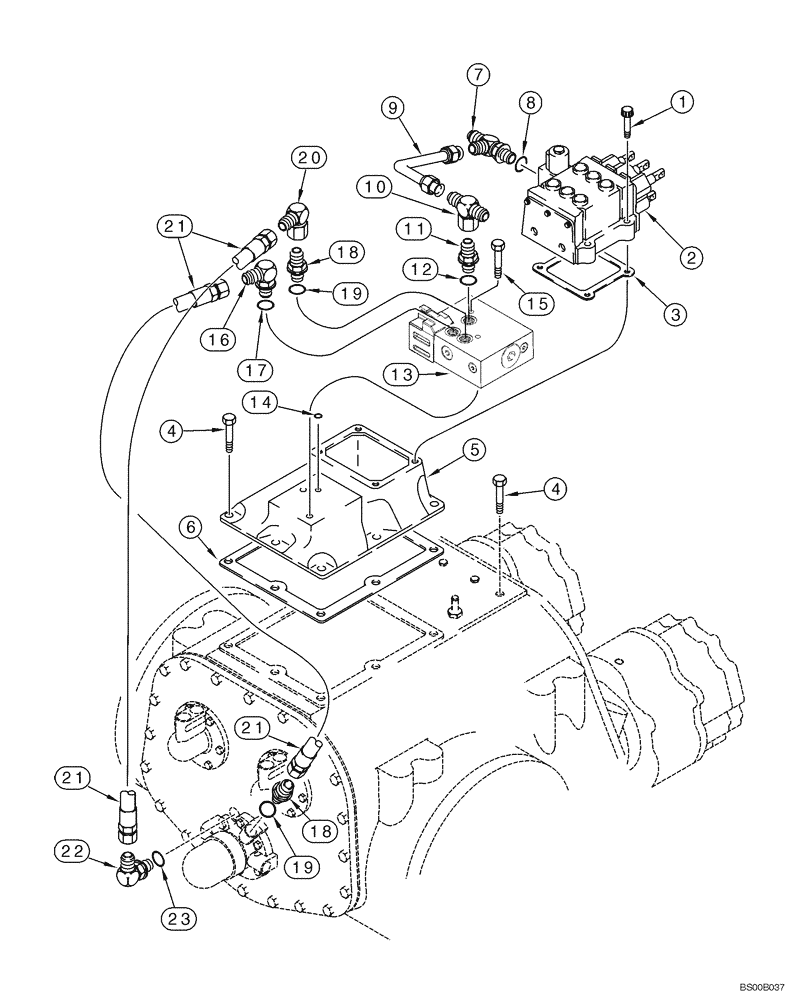

Схема запчастей Case 1150H_IND - (06-15) - TRANSMISSION - HYDRAULIC LINES (06) - POWER TRAIN
23
13
7
8
16
19
14
4
10
20
21
21
9
17
18
1
19
6
4
21
12
3
5
11
22
15
2
18

Артикул

Название

Примечание

Количество

High/Low Range

1шт.

376308A1

TRANSMISSION

Incl. 1 - 23, For Complete Assembly, See Figure 06-04 - 06-16, 07-03

1шт.

1

180-607

12 PT SCREW,Flg, 3/8" - 16 x 2", Gr 8

3/8 x 2; 8

4шт.

2

125588A5

VALVE

See Figure 06-11, Replaces 125588A4 Used On Some Models

1шт.

3

1986527C1

GASKET

Control Valve

1шт.

4

107-9820

LOCK BOLT,Locking, 1/2"-13 x 1 1/4", G8, Full Thd

1/2 x 1-1/4; 8

8шт.

5

139972A2

HOUSING

1шт.

6

1348904C1

GASKET

Riser

1шт.

7

218-5594

TEE,37 Degree, 1 1/16"-12, 7/8"-14 O-Ring Run, 1 1/16"-12

Incl. 8

1шт.

8

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

9

140926A1

TUBE,19.05 mm OD, 139, 83.4 mm Length

Control Valve to Range Valve, See Figure 06-18, Attaches To Ref. 26

1шт.

10

218-837

TEE,37 Degree, 1 1/16"-12 x 1 1/16"-12, Fem Sw Br

1-1/16 sw x fl x fl, See Figure 06-18, Ref 25

1шт.

11

218-5353

HYD CONNECTOR,1 1/16"-12, 37 Degree x 3/4"-16, O-Ring

Incl. 12

1шт.

12

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

13

376304A1

VALVE

High/Low Range, See Figure 06-13

1шт.

14

238-6112

O-RING,0.103" Thk x 0.487" ID, -112, Cl 6, 90 Duro

1шт.

15

107-9648

LOCK BOLT,Locking, 3/8"-16 x 3", G8

2шт.

16

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Incl. 17

1шт.

17

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

18

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

Incl. 19

2шт.

19

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

20

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

1шт.

21

177584A1

HOSE

600 mm (23-5/8 in)

2шт.

22

218-5280

ELBOW,90 Degree, 3/4"-16, 37 Degree x 9/16"-18, O-Ring

3/4 fl x 9/16 , Incl. 23

1шт.

238104A1

SEAL KIT

Kit, Incl. 6, For Additional Components, See Figure 06-04 - 06-07, 06-10, 07-03

1шт.

238108A1

SEAL KIT

Kit, Incl. 14, For Additional Components, See Figure 06-13

1шт.

23

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
