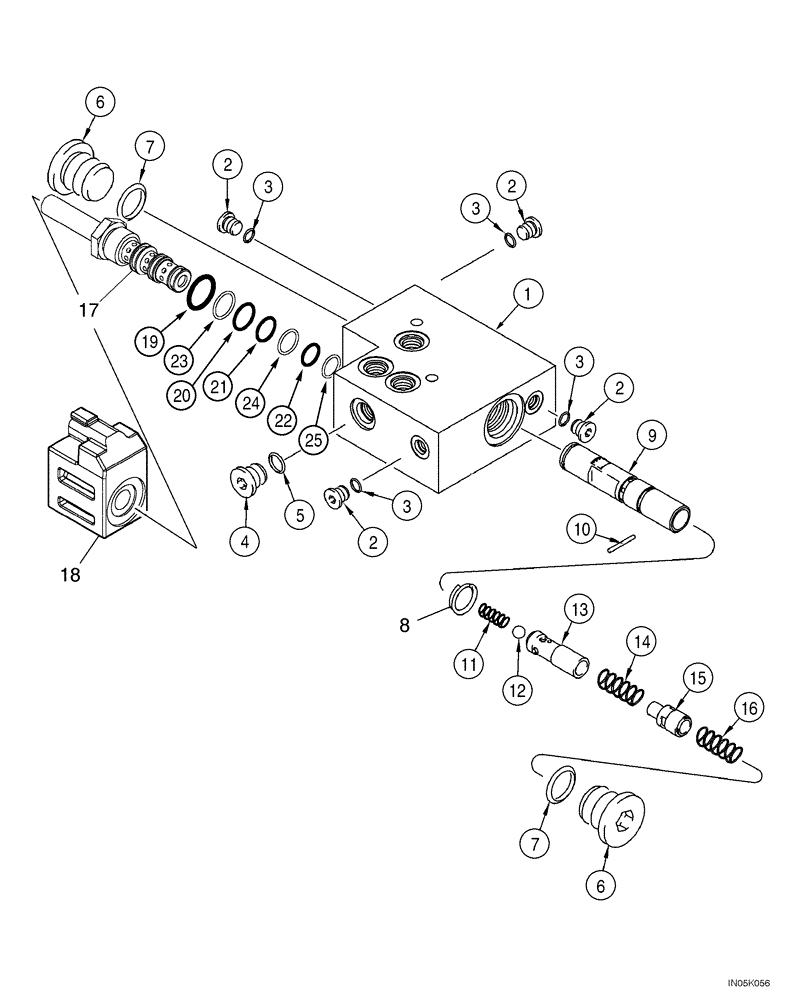

Запчасти Case 1150H_IND (06-13) - VALVE, CONTROL - HIGH/LOW RANGE (06) - POWER TRAIN

376304A1

VALVE

High/Low Range, Incl. 1 - 17, 19, 20

1шт.

1

NSS

NOT SOLD SEPARAT

Housing

1шт.

2

278548

PLUG,Hex, 7/16"-20 ORB

Incl 3

4шт.

3

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

4

71100209

PLUG,Hex Soc, 3/4"-16 ORB

Incl Ref 5

1шт.

5

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

6

218-5214

PLUG,Hex Soc, 1 5/16"-12 ORB

Incl. 7

2шт.

7

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

189269A3

SPOOL

Clutch Cutout, Incl. 8 - 16, Replaces 189269A2

1шт.

8

102-1393

SNAP RING,#93, Ext, Spiral

No. 93

1шт.

329905A1

VALVE

Incl. 17 - 25

1шт.

9

189266A3

SPOOL

1шт.

10

37-1214

DOWEL,1/8" x 7/8"

1/8 x 7/8

1шт.

11

129700A1

SPRING

Check Valve

1шт.

12

211-1012

BALL,3/8" Dia

3/8; 24,CRS

1шт.

13

189267A2

SPOOL

Track Modulation, Replaces 189267A1

1шт.

14

189259A1

SPRING

1шт.

15

189268A2

PISTON

Replaces 189268A1

1шт.

16

121866A1

SPRING

Outer

1шт.

17

187849C1

SOLENOID VALVE

4-Way

1шт.

187850C1

SEAL KIT

Incl. 17, 19 - 25

1шт.

18

353941A1

COIL

1шт.

19

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

20

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

21

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

22

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

23

NSS

NOT SOLD SEPARAT

Ring, Backup

1шт.

24

NSS

NOT SOLD SEPARAT

Ring, Backup

1шт.

25

NSS

NOT SOLD SEPARAT

Ring, Backup

1шт.

26

197767A1

WASHER

Valve Rework, Not Illustrated, Used To change Orifice Diameter In Valve Body Inlet Port From 6.35 mm to 4.00 mm

1шт.

238108A1

SEAL KIT

Kit, Incl. 3, 5, 7, 19 - 25, For Additional Components, See Figure 06-15

1шт.
