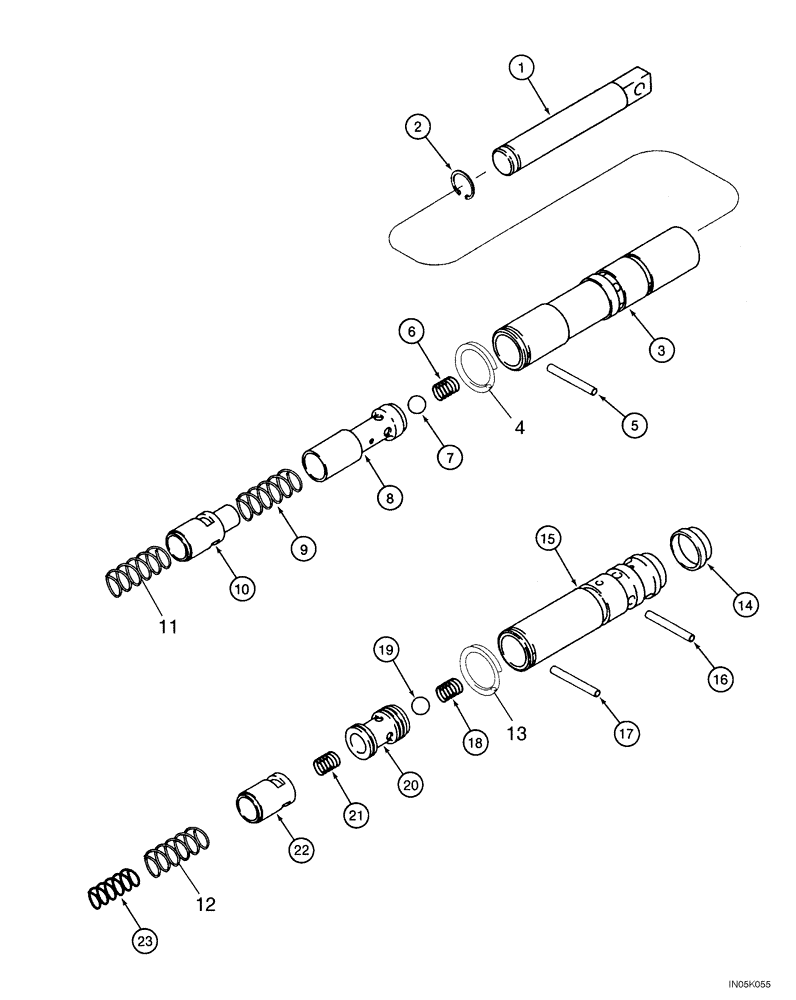

Запчасти Case 1150H_IND (06-12) - TRANSMISSION - VALVE, CONTROL (06) - POWER TRAIN

376308A1

TRANSMISSION

Incl. 1 - 23, For Complete Assembly, See Figure 06-04 - 06-16, 07-03

1шт.

Clutch Cutout Spool

1шт.

189265A3

SPOOL

Clutch Cutout, Incl. 1 - 11, Replaces 189265A2

2шт.

1

138436A1

ROD

1шт.

2

G107637

RING, SNAP

RING SNAP

1шт.

189269A3

SPOOL

Incl. 3 - 11, Replaces 189269A2

1шт.

3

189266A3

SPOOL

1шт.

4

102-1393

SNAP RING,#93, Ext, Spiral

No. 93

1шт.

Forward/Reverse Modulation Spool

1шт.

126430A3

SPOOL

Incl. 12 - 23

1шт.

5

37-1214

DOWEL,1/8" x 7/8"

1/8 x 7/8

1шт.

6

129700A1

SPRING

1шт.

7

211-1012

BALL,3/8" Dia

3/8; 24,CRS

1шт.

8

189267A2

SPOOL

Replaces 189267A1

1шт.

9

189259A1

SPRING

Inner

1шт.

10

189268A2

PISTON

Replaces 189268A1

1шт.

11

121866A1

SPRING

Outer

1шт.

12

121871A1

SPRING

1шт.

13

102-1393

SNAP RING,#93, Ext, Spiral

No. 93

1шт.

14

121494A1

STOP

1шт.

15

126255A3

SLEEVE

1шт.

16

132923A1

PIN

3 x 24 mm

1шт.

17

37-1214

DOWEL,1/8" x 7/8"

1/8 x 7/8

1шт.

18

129700A1

SPRING

Check Valve

1шт.

19

211-1012

BALL,3/8" Dia

3/8; 24,CRS

1шт.

20

126252A1

SPOOL

1шт.

21

127427A1

SPRING

1шт.

22

121492A1

PISTON

1шт.

23

121870A1

SPRING

1шт.
