(06-09) - TRANSMISSION - PINION SHAFT AND GEARS

Запчасти Case 1150H_IND (06-09) - TRANSMISSION - PINION SHAFT AND GEARS (06) - POWER TRAIN

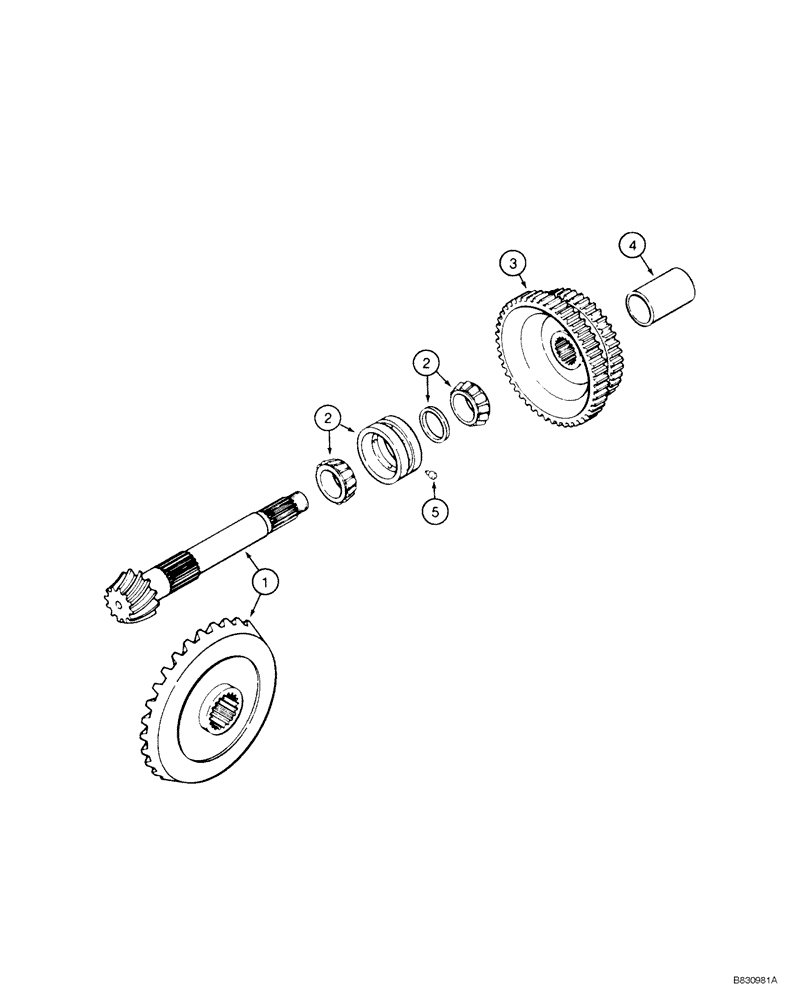

Схема запчастей Case 1150H_IND - (06-09) - TRANSMISSION - PINION SHAFT AND GEARS (06) - POWER TRAIN
2
3
2
5
4
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

376308A1

TRANSMISSION

Incl. 1 - 14, For Complete Assembly, See Figure 06-04 - 06-16, 07-03

1шт.

1

G107899

GEAR, BEVEL

BEVEL GEAR Matched Set, Right Hand

1шт.

1

G107902

GEAR

Matched Set, Left Hand

1шт.

2

A50680

TAPERED BEARING,2.2505" ID x 4.251" OD x 2.5786"

Paired

2шт.

3

G102299

GEAR

High - Low

2шт.

4

A50682

BUSHING

Pinion Gear

2шт.

5

G109429

PIN,7.32mm OD x 14.22mm L

Retaining

2шт.
