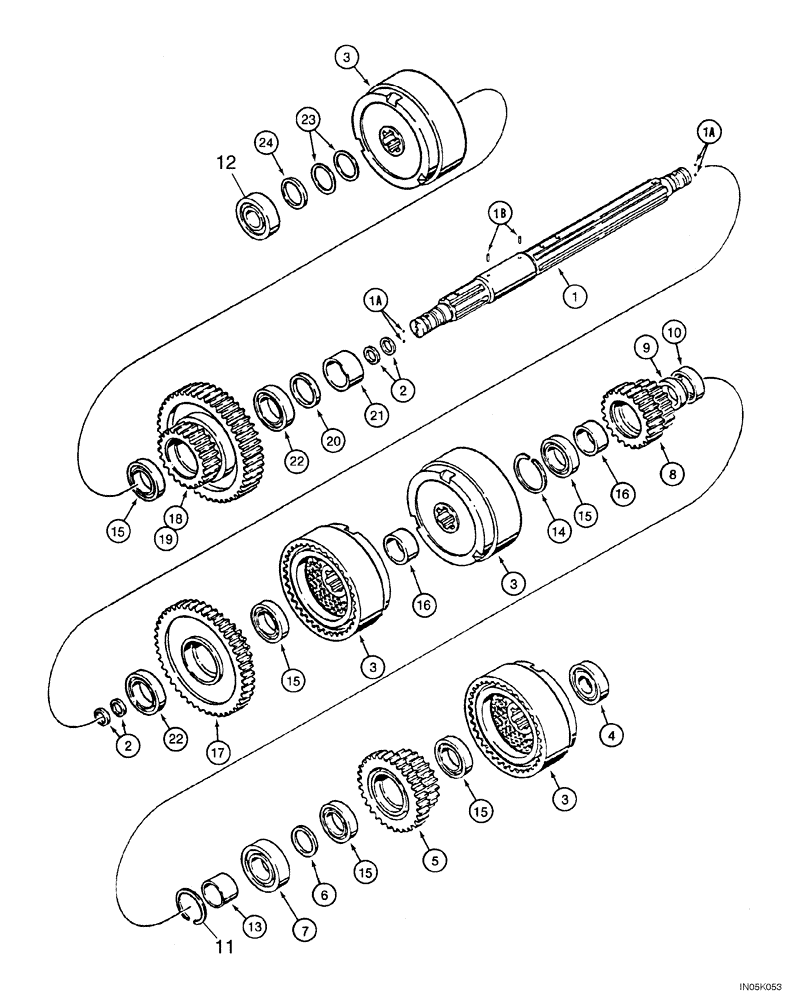

Запчасти Case 1150H_IND (06-07) - TRANSMISSION - CLUTCH SHAFTS (06) - POWER TRAIN

376308A1

TRANSMISSION

Incl. 1 - 11, 13 - 23, For Complete Assembly, See Figure 06-04 - 06-16, 07-03

1шт.

1

179977A1

SHAFT ASSY.

Incl. 1A, 1B

2шт.

1a

211-1308

BALL,1/4" Dia

200 CRS, Replaces 211-7

4шт.

1b

38-3605

PIN,3/32" x 5/16", Coiled

2шт.

2

A175509

SEALING RING,32.81mm ID x 36.13mm OD x 2.38mm Thk

SEALRING

10шт.

3

G102377

CLUTCH

See Figure 06-08

8шт.

4

ST215

BEARING, BALL,40 mm ID x 80 mm OD x 18 mm

Front

2шт.

5

A51752

GEAR

Drive, High Clutch

2шт.

6

A50665

RING

2шт.

7

ST220

BALL BEARING,39.83mm ID x 110mm OD x 27mm W

Gear, High Clutch

2шт.

G101318

GEAR

Drive, Low Clutch, Incl. 8 - 11

2шт.

8

NSS

NOT SOLD SEPARAT

Gear

1шт.

9

NSS

NOT SOLD SEPARAT

Spacer

1шт.

10

A51468

NEEDLE BEARING,Needle, 57.15mm ID x 66.67mm OD x 25.4mm W

1шт.

11

A27414

RING

1шт.

12

ST436

BEARING, BALL,40 mm ID x 90 mm OD x 23 mm

Rear

2шт.

238104A1

SEAL KIT

Kit, Incl. 23, For Additional Components, See Figure 06-04 - 06-06, 06-10, 06-15, 07-03

1шт.

13

A51757

BUSHING,49.98mm ID x 57.13mm OD x 35.76mm L

Needle Bearing, Drive Gear, Low Clutch

2шт.

14

A27579

RING

Gear, Low Clutch

2шт.

15

G10418

BEARING, BALL

10шт.

16

A51842

SPACER

4шт.

17

197406A1

GEAR

Driven, Left Hand and Right Hand, Front

2шт.

18

197406A1

GEAR

Driven, Right Hand Rear

1шт.

19

197407A1

PINION

Driven, Left Hand Rear

1шт.

20

A50664

SPACER

6mm (1/4 in), Clutch, Left Hand

1шт.

21

A50663

SPACER

27 mm (1-1/16 in), Clutch, Right Hand

1шт.

22

175427A1

BEARING, BALL,55mm ID x 90mm OD x 18mm W

4шт.

23

A50668

SHIM,.032" Thk

Clutch shaft, Rear spacer

6шт.

24

A50667

SPACER

Rear

2шт.
