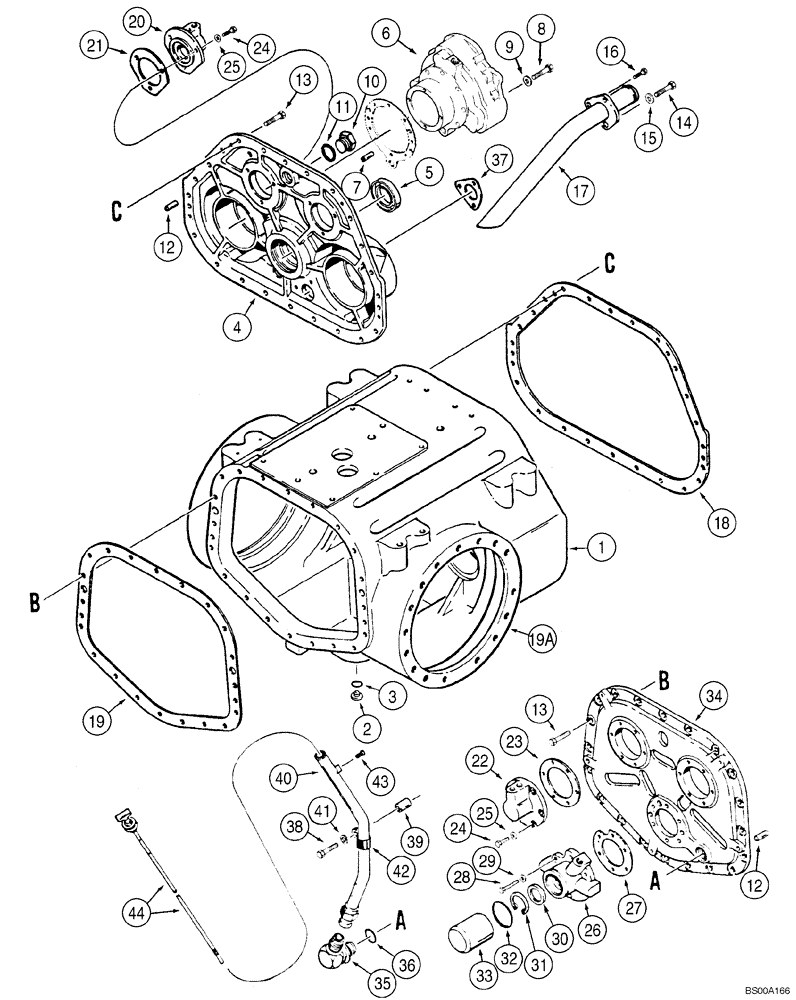

Запчасти Case 1150H_IND (06-04) - TRANSMISSION - HOUSING, COVERS AND DIPSTICK (06) - POWER TRAIN

376308A1

TRANSMISSION

Incl. 1 - 40, For Complete Assembly, See Figure 06-04 - 06-16, 07-03

1шт.

1

G103460

HOUSING

1шт.

2

9841223

PLUG,1-1/16" - 12 ORB

Incl. 3

1шт.

3

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

4

G109121

COVER

Front

1шт.

5

A50420

SEAL

Input Shaft

1шт.

6

1348984C2

HOUSING

Brake, Intermediate

2шт.

7

S64319

CALIPER

1/2 x 1-1/2, Brake Housing

4шт.

8

180-608

12 PT SCREW,Flg, 7/16" - 14 x 2 1/4", Gr 8

7/16 x 2-1/4; 8

16шт.

9

A50689

WASHER

16шт.

10

218-5158

PLUG,Hex Hd, 1 1/16"-12 ORB

Incl. 11

1шт.

11

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

12

S64319

CALIPER

1/2 x 1-1/2, Front and Rear Covers

4шт.

13

107-9820

LOCK BOLT,Locking, 1/2"-13 x 1 1/4", G8, Full Thd

1/2 x 1-1/4; 8

41шт.

14

107-9840

LOCK BOLT,Locking, 1/2"-13 x 2 1/2", G8

Suction tube, lower holes

1шт.

15

D35288

WASHER

1шт.

16

107-9616

LOCK BOLT,Locking, 3/8"-16 x 1", G8, Full Thd

Suction tube, upper holes

2шт.

17

A51515

TUBE

Suction

1шт.

18

1342378C1

GASKET

Front

1шт.

19

1342432C1

GASKET

Rear

1шт.

19a

B17556

LOCTITE

No. 515, 300 ml

1шт.

20

139970A1

CAP

Front, Clutch Shaft

2шт.

21

1981240C1

GASKET

Clutch Shaft

2шт.

22

139969A1

CAP

Rear

2шт.

23

1342256C1

SHIM

0.0508 mm (0.002 in)

5шт.

23

1342255C1

SHIM

0.178 mm (0.007 in)

5шт.

24

107-9616

LOCK BOLT,Locking, 3/8"-16 x 1", G8, Full Thd

18шт.

25

D32117

COPPER WASHER

If Equipped

18шт.

B17422

LOCTITE

No. 242, 50 ml

1шт.

26

139968A2

CAP

Rear, Planetary Output Shaft, With Ports

1шт.

27

G102757

SHIM,.005" Thk

(0.127 mm)

5шт.

27

G102758

SHIM,.007" Thk

(0.1778 mm)

5шт.

28

107-9628

LOCK BOLT,Locking, 3/8"-16 x 1 3/4", G8

6шт.

29

D32117

COPPER WASHER

If Equipped

6шт.

B17422

LOCTITE

No. 242, 50 ml

1шт.

30

A54107

OIL SEAL,38.1mm ID x 8mm Thk

Planetary Output Shaft

1шт.

31

100-21206

SNAP RING,2.062", Int, #206

1шт.

32

238-5230

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

Order Separately, Used on Models with a Winch

1шт.

33

G101696

PROTECTIVE COVER

Rear, Main Shaft

1шт.

34

G106230

PLATE

Rear

1шт.

35

218-5113

ELBOW,90 Degree Elbow, 1-7/8" - 12 Male JIC x 1-7/8" - 12 Male ORB

Incl. 36

1шт.

36

237-6024

O-RING,0.118" Thk x 1.720" ID, -924, Cl 6, 90 Duro

1шт.

37

1981224C1

GASKET

Suction Tube

1шт.

38

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

1/2 x 2-1/2

1шт.

39

G107798

SPACER

Fill Tube

1шт.

40

R47647

TUBE,1.5" OD

Oil Fill, Not Included In Assembly, Purchase Separately

1шт.

41

80679

LOCK WASHER,1/20.507 CST ZND

Not Included in Assembly, Purchase Separately

1шт.

42

515-25381

CLAMP,1 1/2", Insul, 1/2" Bolt

Not Included in Assembly, Purchase Separately

1шт.

43

D63543

BREATHER

Fill Tube, Not Included In Assembly, Purchase Separately

1шт.

44

R46986

DIPSTICK

Transmission Oil, Not Included In Assembly, Purchase Separately

1шт.

238104A1

SEAL KIT

Kit, Incl. 3, 5, 11, 18, 19, 21, 23, 27, 30, 32, 36, 37, 43, For Additional Components, See Figure(s) 06-05 - 06-07, 06-10, 07-03, 06-15

1шт.
