Запчасти Case 1150H_IND (06-01) - TORQUE CONVERTER (06) - POWER TRAIN

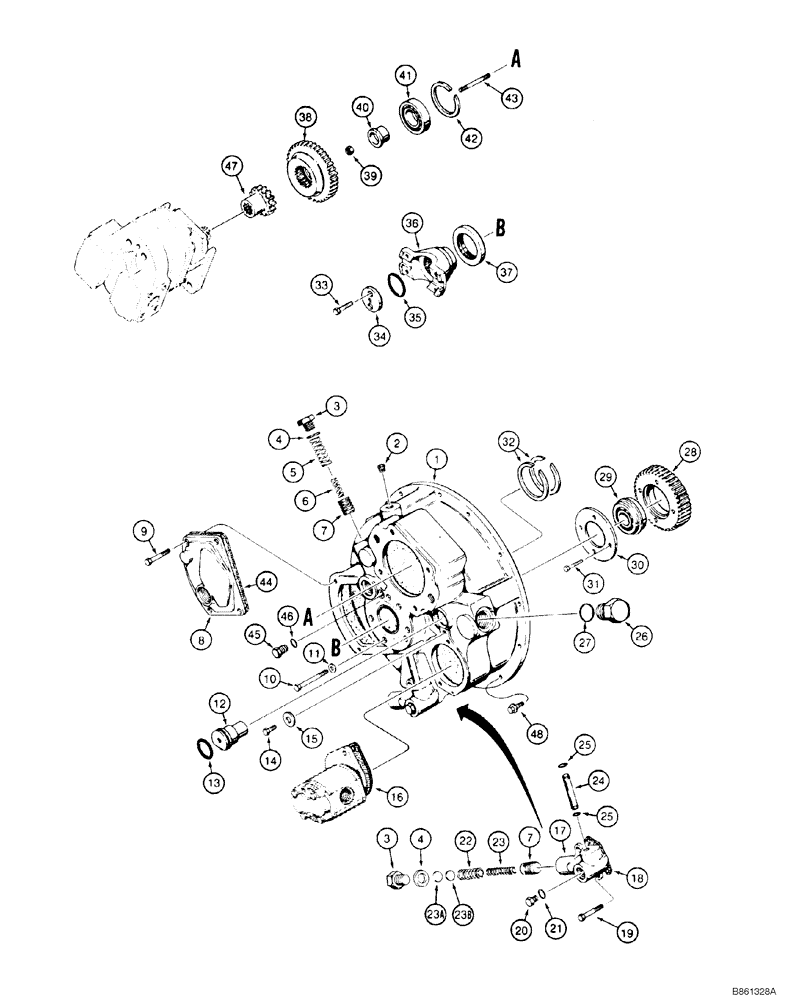

Схема запчастей Case 1150H_IND - (06-01) - TORQUE CONVERTER (06) - POWER TRAIN
23
23b
2
19
28
8
21
13
17
14
44
30
39
6
31
27
26
29
23a
34
46
7
24
3
16
18
38
4
36
40
37
41
33
3
4
25
35
11
42
20
9
48
12
7
10
1
25
45
32
5
22
43
47
15

Артикул

Название

Примечание

Количество

Housing, Covers, Gears, and Mounting

1шт.

R52029

CONVERTER

Incl. 1 - 46, For Additional Components, See Figure 06-02

1шт.

1

D77622

HOUSING

1шт.

2

217-433

PLUG,Hex Soc, 1/4" - 18 NPTF

1шт.

3

D32013

PLUG

Relief Valve

2шт.

4

D32119

WASHER,25.4mm ID x 34.8mm OD x 1.52mm Thk

2шт.

Part of Seal Kit R38108

1шт.

5

D32031

SPRING

Outer

1шт.

Part of Overhaul Kit R54507

1шт.

6

D32021

SPRING

Inner

1шт.

Part of Overhaul Kit R54507

1шт.

7

D32014

PISTON

Relief Valve

2шт.

Part of Overhaul Kit R54507

1шт.

8

R29098

PLATE

Cover

1шт.

9

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

10

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

6шт.

11

D32117

COPPER WASHER

6шт.

Part of Seal Kit R38108

1шт.

12

R29100

SHAFT

Idler Gear

1шт.

13

238-5222

O-RING,0.139" Thk x 1.48" ID, -222, Cl 5, 75 Duro

1шт.

Part of Seal Kit R38108

1шт.

14

413-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

1шт.

15

D32118

WASHER

1шт.

16

D32000

GASKET

Gear Pump

1шт.

Part of Seal Kit R38108

1шт.

17

N6952

HOUSING

Valve, Pressure Regulator

1шт.

18

D32002

GASKET

Valve, Pressure Regulator

1шт.

Part of Seal Kit R38108

1шт.

19

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

20

214389

PLUG,3/4" - 16 ORB

Includes Ref. 21

1шт.

21

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

Part of Seal Kit R38108

1шт.

22

N6915

SPRING

Outer

1шт.

Part of Overhaul Kit R54507

1шт.

23

D72856

SPRING

Inner

1шт.

Part of Overhaul Kit R54507

1шт.

23a

N6953

SHIM,.0359" Thk

(0.911 mm)

1шт.

Part of Overhaul Kit R54507

1шт.

23b

N6954

SHIM,.0239" Thk

(0.607 mm)

1шт.

Part of Overhaul Kit R54507

1шт.

24

R30090

TUBE,0.62" ID x 0.87" OD x 3.62" L

1шт.

25

238-5018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 5, 75 Duro

2шт.

Part of Seal Kit R38108

1шт.

26

273916

PLUG,Hex, 1-5/16" - 12 ORB

Includes Ref. 27

1шт.

27

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

Part of Seal Kit R38108

1шт.

28

R29096

GEAR

1шт.

29

R29093

BALL BEARING,29.99mm ID x 72mm OD x 18.87mm W

1шт.

Part of Overhaul Kit R54507

1шт.

30

R29099

PLATE

1шт.

31

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

32

D32070

RING

2шт.

Part of Overhaul Kit R54507

1шт.

33

414-612

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5

2шт.

34

D32018

PLATE

Yoke

1шт.

35

238-5222

O-RING,0.139" Thk x 1.48" ID, -222, Cl 5, 75 Duro

1шт.

Part of Seal Kit R38108

1шт.

36

R42731

YOKE

UNIVERSAL JOINT YOKE Drive Shaft

1шт.

37

D51518

OIL SEAL,57.15mm ID x 82.75mm OD x 13.11mm Thk

1шт.

Part of Seal Kit R38108

1шт.

38

D32003

GEAR

Driven

1шт.

39

425-116

NUT,3/8" - 24, Gr 5

1шт.

40

D32032

BEARING,1.3782" OD x 1.03

Bearing, Ball

1шт.

41

R29094

BEARING, ROLLER, CYL,34.99mm ID x 72mm OD x 17mm W

1шт.

Part of Overhaul Kit R54507

1шт.

42

D32069

RING

1шт.

Part of Overhaul Kit R54507

1шт.

43

D32067

STUD

3/8 NF x 1-1/2

1шт.

44

D32005

GASKET

1шт.

Part of Seal Kit R38108

1шт.

45

9672438

PLUG,7/16" - 20 ORB

Incl. 46

1шт.

46

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

Part of Seal Kit R38108

1шт.

47

R46562

PINION

Pinion, Purchase Separately

1шт.

48

R54620

BOLT,Hex, Flange, M10 x 35mm CL 10.9

Purchase Separately

12шт.

R38108

GASKET KIT

Incl. 4, 11, 13, 16, 18, 21, 25, 27, 35, 37, 44, 46, For Additional Components, See Figure 06-02,08-02, Also Includes Parts Not Used in This Application

1шт.

R54507

KIT

Overhaul, Incl. Ref. 5 - 7, 22 - 23B, 29, 32, 41, 42

1шт.

Выбрано товаров: 77
