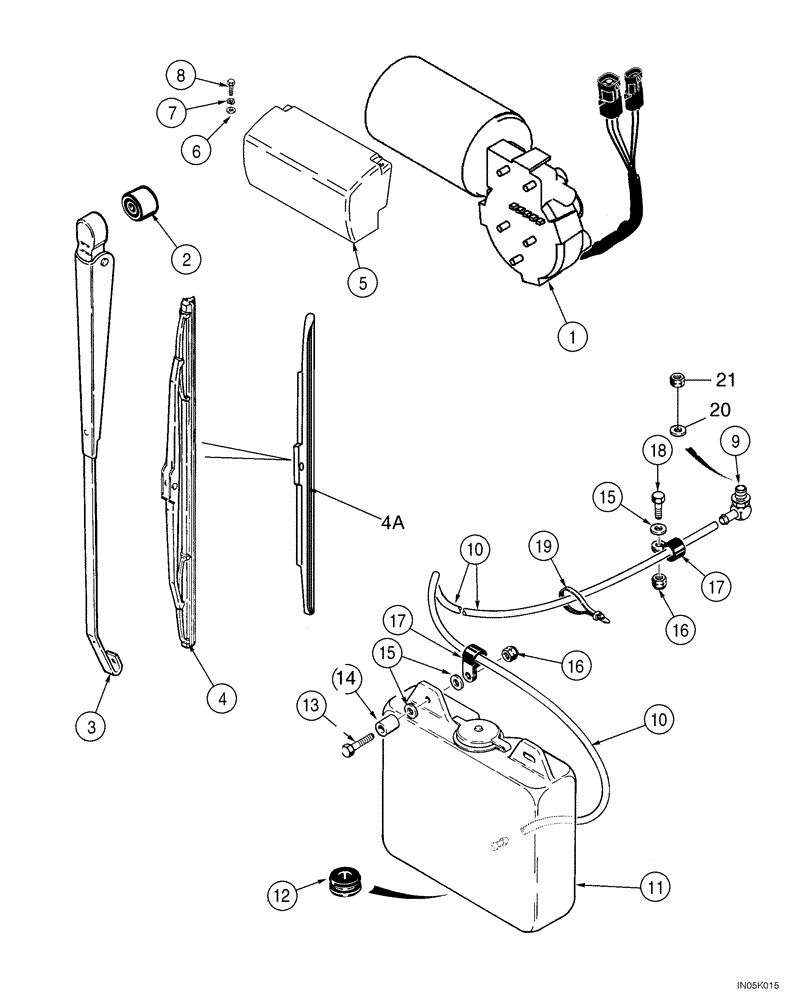

Запчасти Case 1150H_IND (04-23) - WINDSHIELD WASHER - WIPER, FRONT (04) - ELECTRICAL SYSTEMS

1

386928A1

WINDSHIELD WIPER

12V, Windshield Wiper Front, Includes Hardware, Component Parts Not Available at Time of Printing

1шт.

2

386931A1

SPACER

1шт.

3

386929A1

WIPER BLADE

BLADE, WIPER Front Wiper

1шт.

4

243953A1

WINDSHIELD WIPER

If Used

1шт.

4a

132024A1

WIPER BLADE

If Used

1шт.

4b

386930A1

WIPER BLADE

BLADE, WIPER 450mm. Not Illustrated; If Used

1шт.

5

320578A1

COVER

Front Wiper

1шт.

6

495-11028

WASHER,1/4", SAE

(9/32 x 5/8 x 1/16")

2шт.

7

492-11025

LOCK WASHER,1/4"

3шт.

8

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

3шт.

9

1968053C1

ELBOW

1шт.

10

1999486C1

HOSE

5790 mm (228 in), Windshield Washer

1шт.

11

L303176

RESERVOIR

Windshield Washer, Component Parts Not Serviced Separately

1шт.

12

A23870

GROMMET

1шт.

13

413-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

2шт.

14

R58606

SPACER

2шт.

15

496-41041

WASHER,13/32" x 1 1/8" x .134"

5шт.

16

131-203

LOCK NUT,3/8"-16, GB, LH

3/8

3шт.

17

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

2шт.

18

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

19

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

3шт.

20

N8361

SPRING WASHER

1шт.

21

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

1шт.
