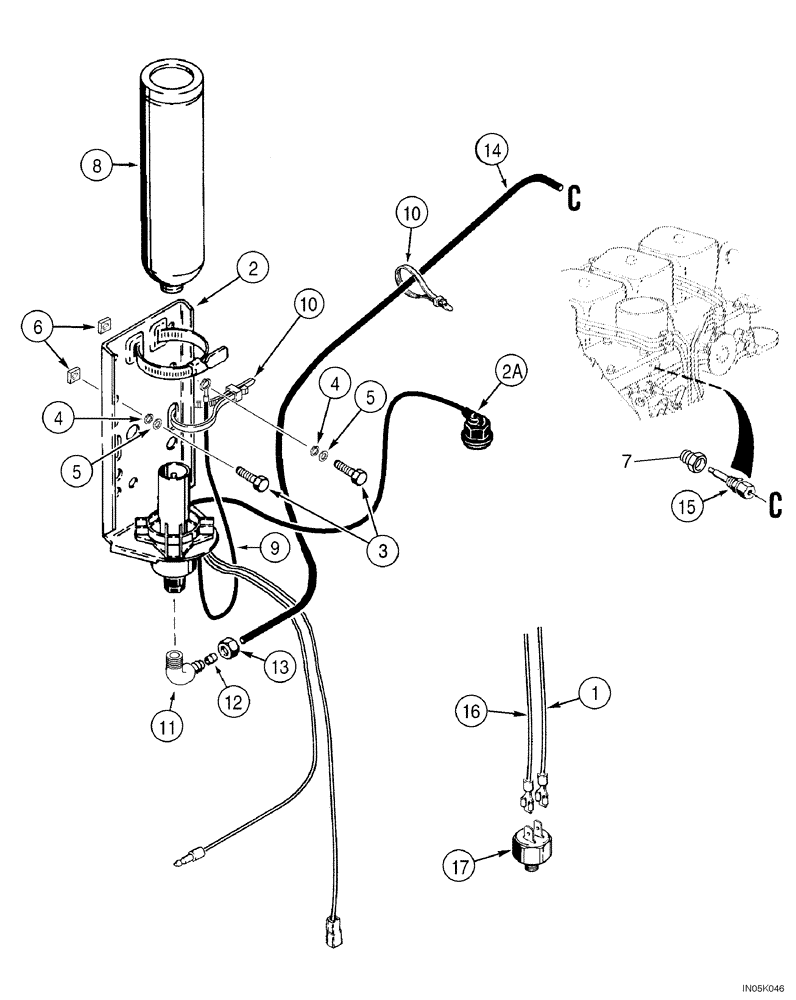

Запчасти Case 1150H_IND (04-19) - COLD START SYSTEM (04) - ELECTRICAL SYSTEMS

1

338943A1

HARNESS

Front; No Longer Available, Order 338943A2 Ref. 1A

1шт.

1a

338943A2

HARNESS

Front, For Continuation of Harness, See Figure(s) : 04-08, 04-11

1шт.

2

A172116

VALVE

12V, 3 cc, Bracket Cold Start, Incl. 2A

1шт.

2a

254729A1

SET OF PARTS

Cap and Cord

1шт.

3

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

3шт.

4

492-11031

LOCK WASHER,5/16"

3шт.

5

495-11034

WASHER,5/16", SAE

(11/32 x 11/16 x 1/16")

3шт.

6

129-855

SQUARE NUT,Sq, 5/16"-18

3шт.

7

221-1087

REDUCER

1/2 x 1/8; Used With 15

1шт.

8

A171940

CYLINDER

Ether

1шт.

9

R51632

ELECTRICAL WIRE

WIRE Ground

1шт.

10

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP Nylon, 15 in

2шт.

11

222-615

ELBOW,90 Degree, 5/16"-24 x 1/8" NPT, Comp

1/8 Tube OD, Incl. 12, 13

1шт.

12

222-650

SLEEVE,1/8" Tube, Comp

1шт.

13

222-660

FLANGE NUT,5/16"-24, 45 Degree Fl, Comp

1/8" Tube OD

1шт.

14

D145367

TUBE

762 mm (30 in), Cut From L60539X

1шт.

15

A172900

NOZZLE CAP

Atomizer, Component Parts Not Serviced Separately

1шт.

16

182450A1

ELECTRICAL WIRE

WIRE Jumper, Connect 2 Of These Together To Get Required Length

2шт.

17

A172117

SWITCH

Ether Temperature

1шт.
