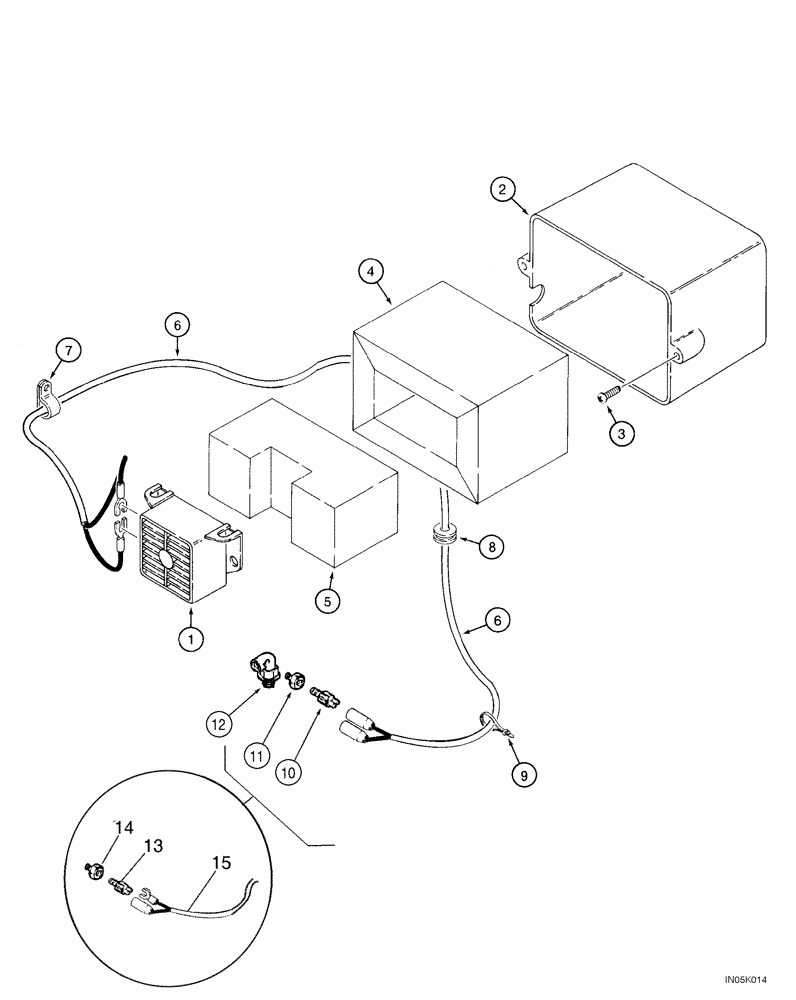

Запчасти Case 1150H_IND (04-18) - ALARM - BACKUP (04) - ELECTRICAL SYSTEMS

1

L112318

ALARM

Backup

1шт.

2

R50647

BOX

1шт.

3

261-55712

SELF-TAP SCREW,Cross Pan Hd, 1/4"-20 x 3/4"

2шт.

4

R50648

FOAM

1шт.

5

R51815

PAD

254 mm (10 in), Cut From R30870

1шт.

6

361795A1

ELECTRICAL WIRE

WIRE Harness Backup Alarm, Used With Ref.10

1шт.

7

49885

CLAMP

5/8 ID, Replaces 515-23159

1шт.

8

A23870

GROMMET

1шт.

9

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP Nylon, 15 in

2шт.

10

D139904

SWITCH

Backup Alarm, No Longer Available, Order 333268A1, Ref 13; If Replacing This Switch, Must Also Order Ref 14, 15 ; For Service

1шт.

11

R52651

FITTING

1/8 NPT; Used With Ref. 10

1шт.

12

G107178

ELBOW

See Figure 06-14

1шт.

13

333268A1

SWITCH, PRESSURE

PRESSURE SWITCH Backup Alarm

1шт.

14

217-1032

ADAPTER,1/8" - 27 NPT x 1/8" - 27 NPT

1/8M x 1/8F; Used With Ref 13

1шт.

15

361795A2

ELECTRICAL WIRE

WIRE Harness Backup Alarm; Used With Ref 13

1шт.
