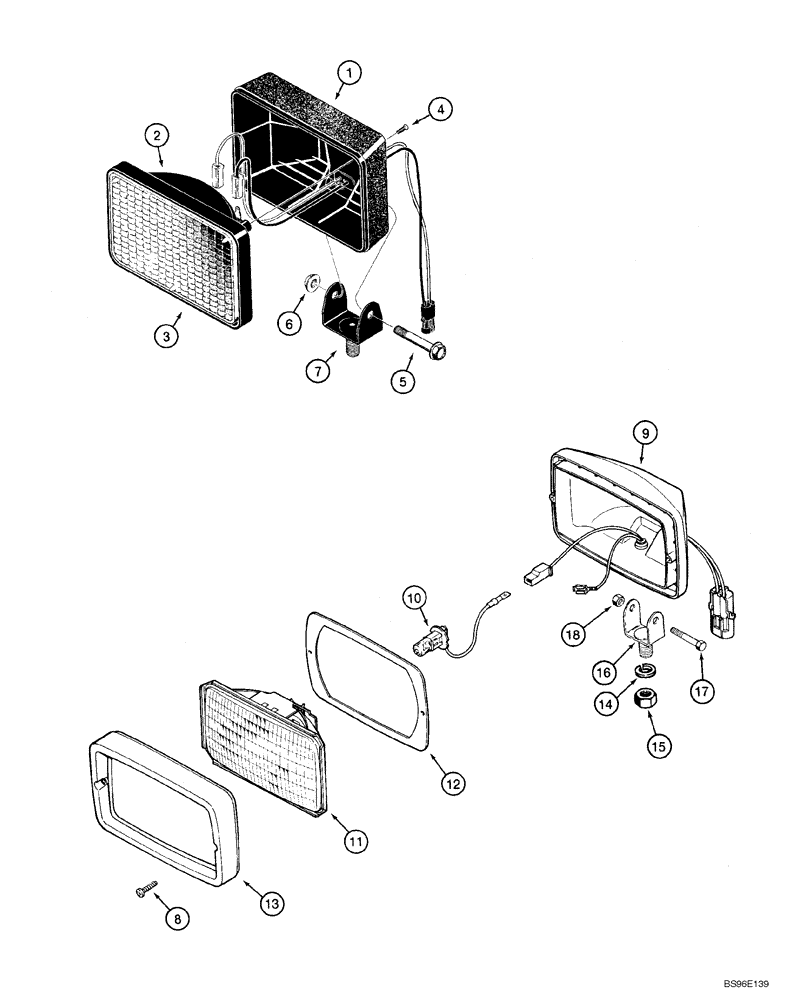

Запчасти Case 1150H_IND (04-17) - LAMP ASSY, FRONT AND REAR (04) - ELECTRICAL SYSTEMS

Models With Canopy

1шт.

D137294

LIGHT ASSY.

Front and Rear, Incl. 1 - 7, Production Only, For Service Order ZAA7189850

4шт.

ZAA7189850

HEADLIGHT

Not Illustrated

4шт.

1

NSS

NOT SOLD SEPARAT

Housing

1шт.

2

NSS

NOT SOLD SEPARAT

Retainer, Housing

1шт.

3

F45230

HEADLIGHT

28V, 60W, Halogen

1шт.

4

273-5048

SELF-TAP SCREW,Slotted Flat Hd, #8 x 1/2"

2шт.

5

121-232

SERRATED BOLT,Hex, 5/16" - 18 x 2", Gr 5

1шт.

6

230-4215

NUT,5/16"-18, GA

1шт.

7

N8347

SUPPORT

1шт.

Models With Cab

1шт.

92269C1

WORK LAMP,Halogen, 12V, 55W, Clear

Front and Rear, Incl. 8 - 18

4шт.

8

260-54312

SELF-TAP SCREW,Cross Pan Hd, #6 x 3/4"

2шт.

9

NSS

NOT SOLD SEPARAT

Base, Lamp

1шт.

10

1312210C2

BULB,Halogen H3, 12V, 55W

12V, 55W

1шт.

11

276498A1

LENS

Incl. 12

1шт.

12

NSS

NOT SOLD SEPARAT

Gasket, Mounting

1шт.

13

1964806C1

BEZEL

1шт.

14

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

11 x 21 x 2 mm

1шт.

15

832-10410

NUT,M10 x 1.5, Cl 8

1шт.

16

A187915

BRACKET

1шт.

17

814-8045

BOLT,Hex, M8 x 1.25 x 45mm, Cl 8.8

1шт.

18

832-41308

NUT,M8 x 1.25, Cl 10

1шт.
