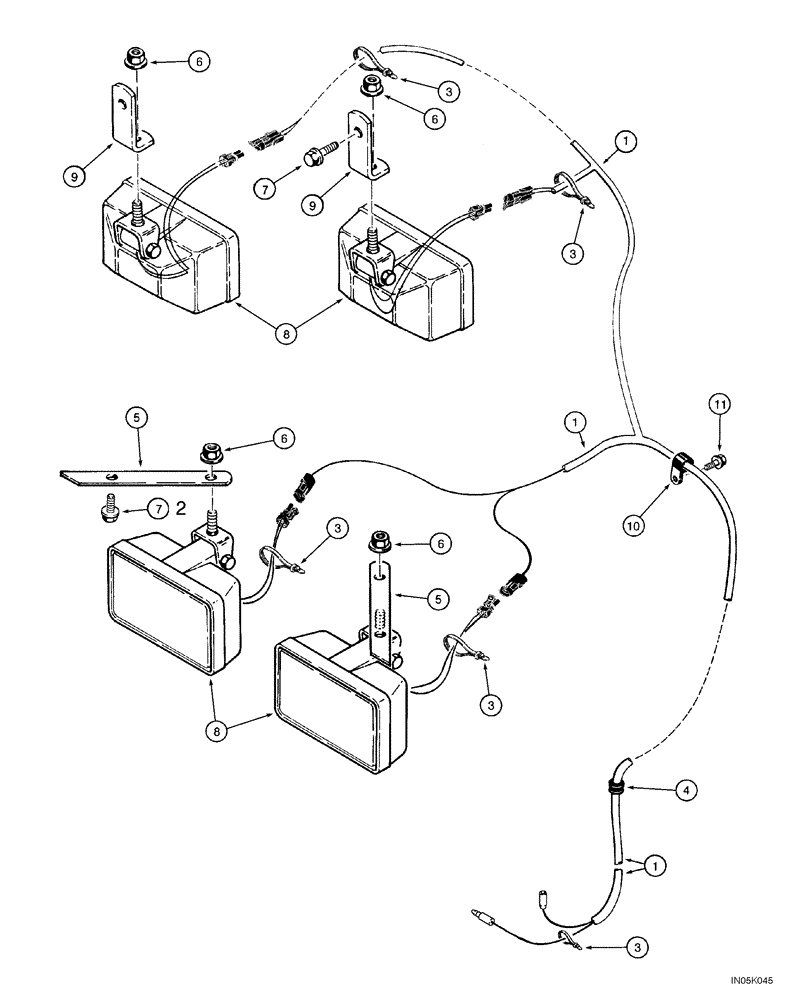

Запчасти Case 1150H_IND (04-14) - HARNESS - LAMP (04) - ELECTRICAL SYSTEMS

Models With Canopy

1шт.

1

372818A1

HARNESS

Lamp, No Longer Avaliable, Order 372818A2 Ref.1A

1шт.

1a

372818A2

HARNESS

Lamp Not Illustrated

1шт.

2

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

Models with Rear Screen

2шт.

3

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 Inch, Nylon

5шт.

4

D42106

GROMMET

Rubber, Lamp Harness Through Hydraulic Reservoir Frame

1шт.

5

185919A1

BRACKET

2шт.

6

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

4шт.

7

160-106

BOLT,Hex, 1/2" - 13 x 1", Gr 8, Full Thd

See Ref. 2

4шт.

8

D137294

LIGHT ASSY.

Front and Rear, See Figure 04-17

4шт.

9

186861A1

BRACKET

2шт.

10

515-22127

CLAMP,1/2", Insul, 5/16" Bolt

6шт.

11

281-18712

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 3/4"

6шт.
