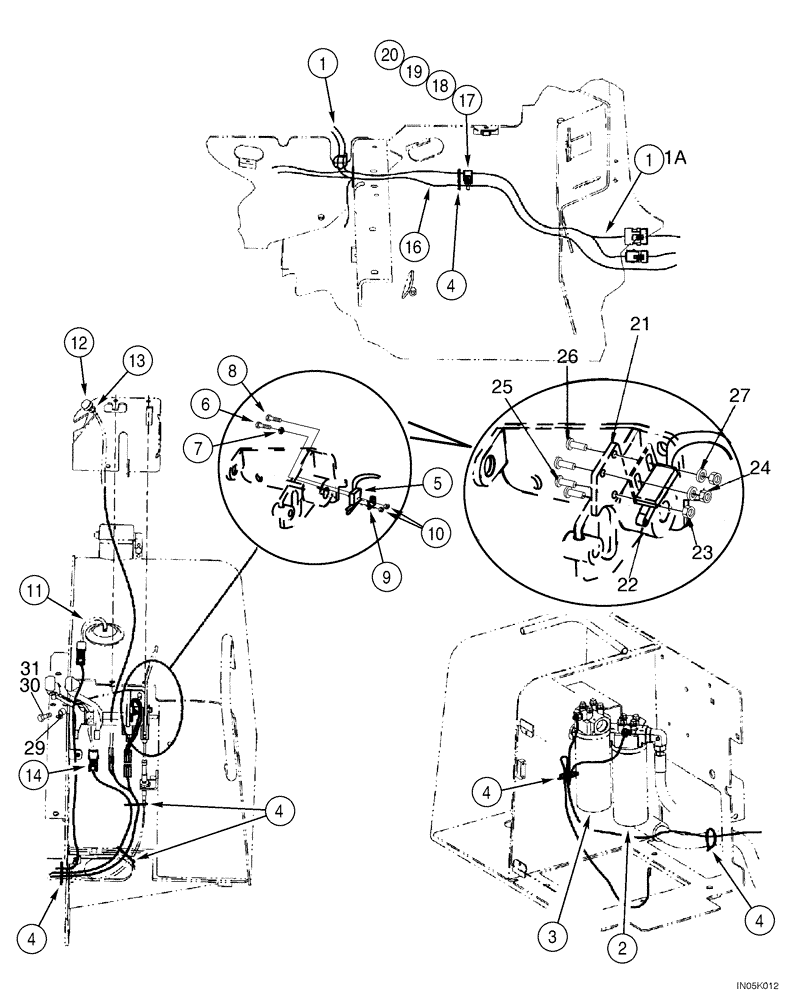

Запчасти Case 1150H_IND (04-13) - HARNESSES - FRONT AND REAR (04) - ELECTRICAL SYSTEMS

To Hydraulic Reservoir and Fuel Tank

1шт.

1

337573A1

HARNESS

Rear, No Longer Available, Order 337573A2

1шт.

1a

337573A2

HARNESS

Rear, Not Illustrated See figure(s) : 04-11; If Used

1шт.

1b

337573A3

HARNESS

Rear, Not Illustrated See figure(s) : 04-11; If Used

1шт.

2

REF

INSTRUCTION

Filter, Oil, Transmission, See Figure 06-21

1шт.

3

REF

INSTRUCTION

Filter, Oil, Equipment, See Figure 06-21

1шт.

4

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 Inch, Nylon

1шт.

5

1343288C2

LIMIT SWITCH

Neutral Start

1шт.

6

440-10620

SCREW,Phillips Drive, Pan HD, #6 - 32 x 1-1/4"

No. 6 x 1-1/4

1шт.

7

495-21019

WASHER,#8

1шт.

8

440-10616

SCREW,Cross Pan Hd, #6-32 x 1"

1шт.

9

310719A1

COVER

Neutral Start Switch; Used With : Ref. 5-8,10; If Used

1шт.

10

231-14106

NUT,#6-32, GB

No. 6

2шт.

11

326276A1

SENSOR

Fuel Level, See Figure 03-05

1шт.

12

R58727

SWITCH

Horn

1шт.

13

425-1510

JAM NUT,Jam, 5/8"-18, G5

1шт.

14

245483C1

ELEC CONNECTOR,Male, 2 Pin

1шт.

15

197397A2

SWITCH

Two Speed, Not Illustrated, See Figure 06-23

1шт.

16

338943A1

HARNESS

Front; No Longer Available, Order 338943A2 Ref.1A

1шт.

16a

338943A2

HARNESS

Front, Not Illustrated See Figure(s): 04-08

1шт.

17

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

1шт.

18

160-103

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 8, Full Thd

1шт.

19

492-11038

LOCK WASHER,3/8"

1шт.

20

425-106

NUT,3/8"-16, Cl 5

1шт.

21

392957A1

PLATE

Switch Mounting; Used With : Ref. 22 - 27; If Used

1шт.

22

394819A2

SWITCH

Neutral Start L190mm, Replaces 394819A1, L170mm

1шт.

23

231-14408

NUT,#8-32, GB

No. 8 - 32

1шт.

24

231-14409

NUT,#10-24, GB

2шт.

25

440-10812

SCREW,Cross Pan Hd, #8-32 x 3/4"

1шт.

26

440-11010

SCREW,Phillips Drive, Pan HD, #10 - 24 x 5/8"

3шт.

27

495-31022

WASHER,#10

2шт.

28

396635A1

ELECTRICAL WIRE

WIRE Neutral Start, Not Illustrated; Used With Kit 396655A1

1шт.

396655A1

KIT

Neutral Start, Incl. Ref. 21 - 28

1шт.

29

D20302

CLAMP,7/8", Insul, 3/8" Bolt

7/8, "P"

2шт.

30

411-616

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1", Gr 2

3/8 - 16 x 1 GR 2 ZND

2шт.

31

231-1446

NUT,3/8" - 16, Gr 5

2шт.
