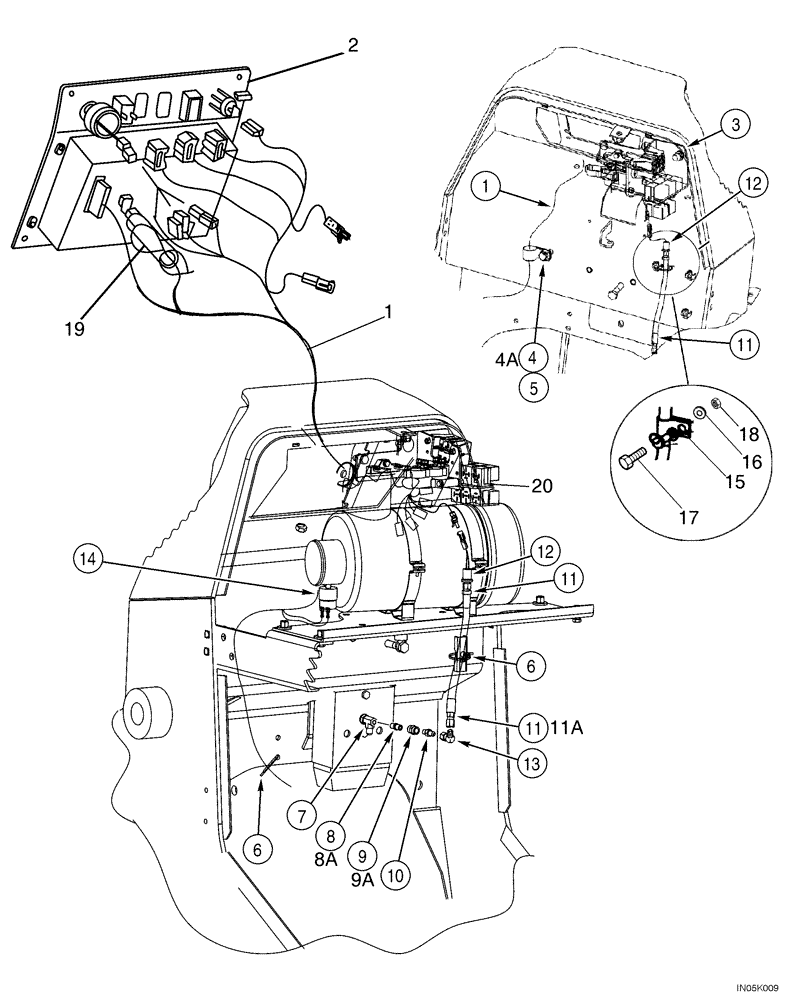

Запчасти Case 1150H_IND (04-09) - HARNESS, FRONT (04) - ELECTRICAL SYSTEMS

Front Harness at Cowl

1шт.

1

338943A1

HARNESS

Front; No Longer Available, Order 338943A2 Ref.1A

1шт.

1a

338943A2

HARNESS

Front, Not Illustrated See Figure(s): 04-08

1шт.

2

REF

INSTRUCTION

Panel, Instrument, See Figure 04-06

1шт.

3

REF

INSTRUCTION

Mount, Fuse and Relay, See Figure 04-08

1шт.

4

D34033

CLAMP

1-3/16 ID; If Used

1шт.

4a

515-25286

CLAMP,1 1/8", Insul, 3/8" Bolt

28.6 mm, M12 Bolt; If Used

1шт.

5

160-106

BOLT,Hex, 1/2" - 13 x 1", Gr 8, Full Thd

1шт.

6

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP Nylon, 15inch

1шт.

7

REF

INSTRUCTION

Tee, See Figure 07-02

1шт.

8

D36264

FITTING

Used With Ref. 11

1шт.

8a

116195A1

CHECK VALVE

Used With Ref. 11A

1шт.

9

217-1100

UNION,1/8" - 27 NPT x 1/8" - 27 NPT

1/8 PT; Used With Ref. 11

1шт.

9a

218-1022

HYD CONNECTOR,7/16"-20, 37 Degree x 1/4"-18, NPTF

37 FL 1/4 Tube x 1/4 - 18 NPTF; Used With Ref. 11A

1шт.

10

218-441

HYD CONNECTOR,7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

7/16 fl x 1/8 PT

1шт.

11

370148A1

HOSE

305 mm (12 in), Incl. Ref. 8,9; No Longer Available, Order 398130A1 Ref. 11A

1шт.

11a

398130A1

HOSE

250 mm; Incl. Ref. 8A,9A

1шт.

12

336005A1

SWITCH

Transmission Pressure, No Longer Available, Order 405018A1, Ref. 12A

1шт.

12a

405018A1

SWITCH

Pressure With Delay; Not Illustrated

1шт.

13

218-5228

ELBOW,90 Degree, 7/16"-20, 37 Degree x 7/16"-20, 37 Degree Fem Sw

7/16 fl x sw

1шт.

14

292740A1

RESTRICTION SWITCH

Air Restriction, See Figure 02-07

1шт.

15

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

5/8, 3/8 Bolt; If Used

1шт.

16

492-11031

LOCK WASHER,5/16"

If used

1шт.

17

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

If Used

1шт.

18

129-855

SQUARE NUT,Sq, 5/16"-18

If Used

1шт.

19

L303478

CONDUIT

Plastic, Guard

1шт.

20

374974A1

HARNESS

Front

1шт.
