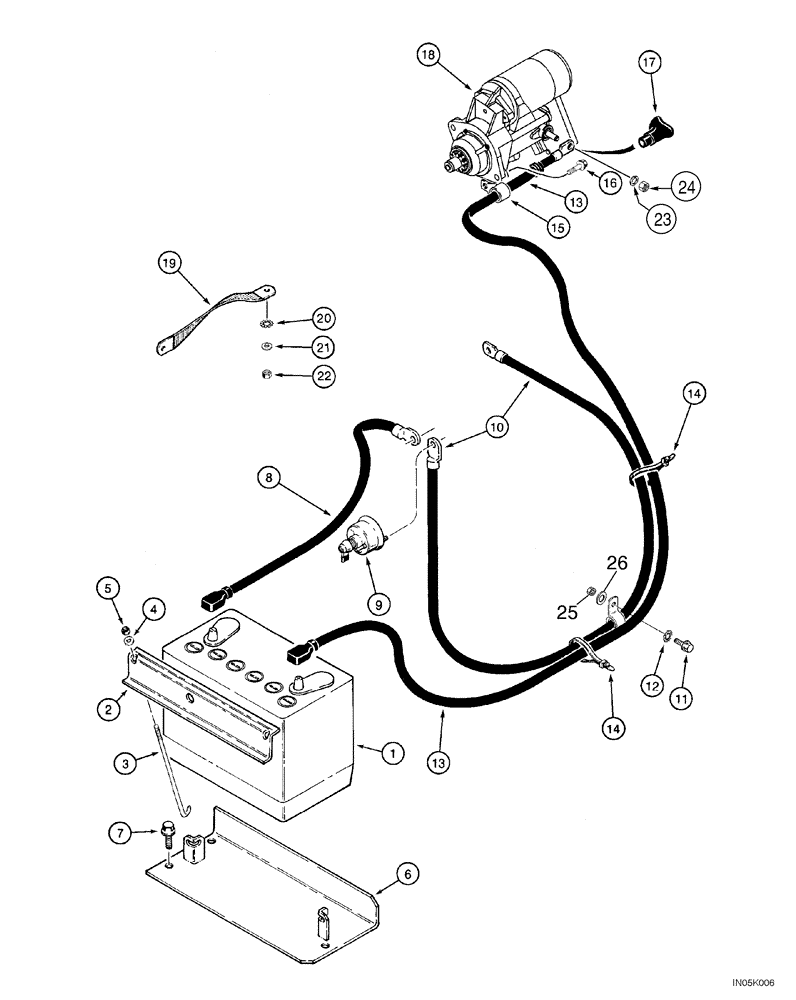

Запчасти Case 1150H_IND (04-04) - BATTERY AND BATTERY CABLES - STARTER (04) - ELECTRICAL SYSTEMS

Models With Single Battery

1шт.

1

BMF31E

DRY BATTERY

12V

1шт.

2

R51648

LARGE PLATE

PLATE, LARGE

1шт.

3

R27652

ROD

Battery Hold-Down

2шт.

4

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 3/32")

2шт.

5

231-1445

NUT,5/16"-18, GB

2шт.

6

R57054

SUPPORT

1шт.

7

160-107

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8, Full Thd

2шт.

8

R47204

NEG BATTERY CABLE

Negative

1шт.

9

R52278

SWITCH

Master Disconnect Switch

1шт.

10

141782A1

CABLE

Battery - Ground, To Torque Converter, Includes Clamp

1шт.

11

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

Replaces 160-101, Bolt 3/8 x .75

1шт.

12

493-11039

LOCK WASHER,3/8", Int-Ext Tooth

1шт.

13

R57564

CABLE

Positive, Includes Conduit

1шт.

14

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

1шт.

15

R45966

CLAMP,0.94mm, Coat, 90 Degree Twist

1шт.

16

R54620

BOLT,Hex, Flange, M10 x 35mm CL 10.9

2шт.

17

L126713

BOOT

1шт.

18

282161A1

STARTING MOTOR,12V, 2.7kW

See Figure 04-01

1шт.

19

D73383

STRAP

Models With Cab

1шт.

20

493-11039

LOCK WASHER,3/8", Int-Ext Tooth

1шт.

21

L127554

WASHER,0.395" ID x 0.875" OD x 0.064" Thk

1шт.

22

L127555

NUT,Hex, 3/8" - 16

3/8

1шт.

23

892-11010

LOCK WASHER,M10

1шт.

24

825-1410

NUT,M10, Cl 8

1шт.

25

425-106

NUT,3/8"-16, Cl 5

1шт.

26

492-11038

LOCK WASHER,3/8"

1шт.
