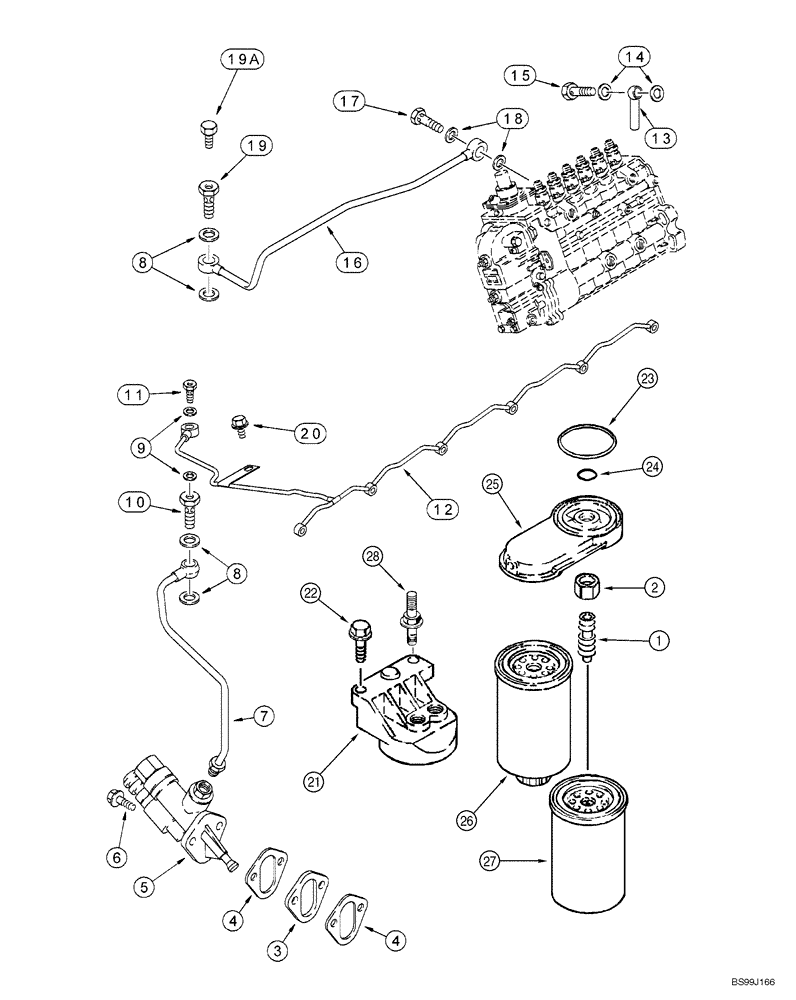

Запчасти Case 1150H_IND (03-08) - FUEL FILTER - PUMP, TRANSFER (03) - FUEL SYSTEM

6T-590 Emissions Certified Engine

1шт.

1

J925955

ADAPTER,M16 x 1.5 x M16 x 1.5

1шт.

2

J903293

JAM NUT

M16

1шт.

3

J914284

SPACER

1шт.

4

J931059

GASKET

2шт.

5

J936316

FUEL PUMP

1шт.

6

845-8025

BOLT,Hex Flg, M8 x 25mm, Cl 8.8

2шт.

7

J928423

FUEL TUBE,8 mm OD x 323.9 mm L

1шт.

8

J935171

SEALING WASHER

12 x 19 x 1.5 mm

4шт.

9

J918188

WASHER,7.8mm ID x 13.5mm OD x 1.2mm Thk

2шт.

10

J916361

BANJO BOLT

M12 x 24

1шт.

11

J924726

BANJO BOLT

Check

6шт.

12

J933295

MANIFOLD

1шт.

13

J933250

FITTING

1шт.

14

J918192

PACKING RING,14mm ID x 20mm OD x 1mm Thk

14 x 20 x 1 mm

2шт.

15

J932096

VALVE

Over Flow

1шт.

16

J930733

FUEL TUBE,8 mm OD

1шт.

17

J924725

BANJO BOLT,M14 x 1.5 x 26mm

1шт.

18

J918192

PACKING RING,14mm ID x 20mm OD x 1mm Thk

14 x 20 x 1 mm

2шт.

J905860

BANJO BOLT

Incl. 19, 19A

1шт.

19

NSS

NOT SOLD SEPARAT

Bolt

1шт.

19a

NSS

NOT SOLD SEPARAT

Screw

1шт.

20

844-8025

BOLT,Hvy Hex, M8 x 25mm, Cl 8.8

2шт.

21

J933752

HEAD

Used With J931063, Ref. 27, Secondary Filter

1шт.

21

J930969

CAP

Used With J930942, Ref. 26, Primary Filter

1шт.

22

844-8035

BOLT,Hvy Hex, M8 x 35mm, Cl 8.8

2шт.

23

J906694

SEALING RING,Square, 1.68mm Thk x 69.57mm ID, -39

SEALRING Replaces J903546, 70 mm

1шт.

24

J906695

SEAL,Square, 0.103" Thk x 0.549" ID, -113

SEALRING Replaces J903846, 14 mm

1шт.

25

J897331

SUPPORT

Used With J930942, Ref. 26, Primary Filter

1шт.

25

NLS

NO LONGER SERVICED

Used with J931063, Ref. 27, Secondary Filter

1шт.

A77470

SEPARATOR

Fuel, Incl. 26, 27

1шт.

26

J930942

SEPARATOR

Primary

1шт.

27

J931063

FUEL FILTER

Secondary

1шт.

28

J928527

FLANGE BOLT,Spcl, Hex, M6 x 1 - M8 x 1.25 x 35mm, Full Thd

1шт.

29

J908135

SEAL

Rectangular, Not Illustrated

1шт.
