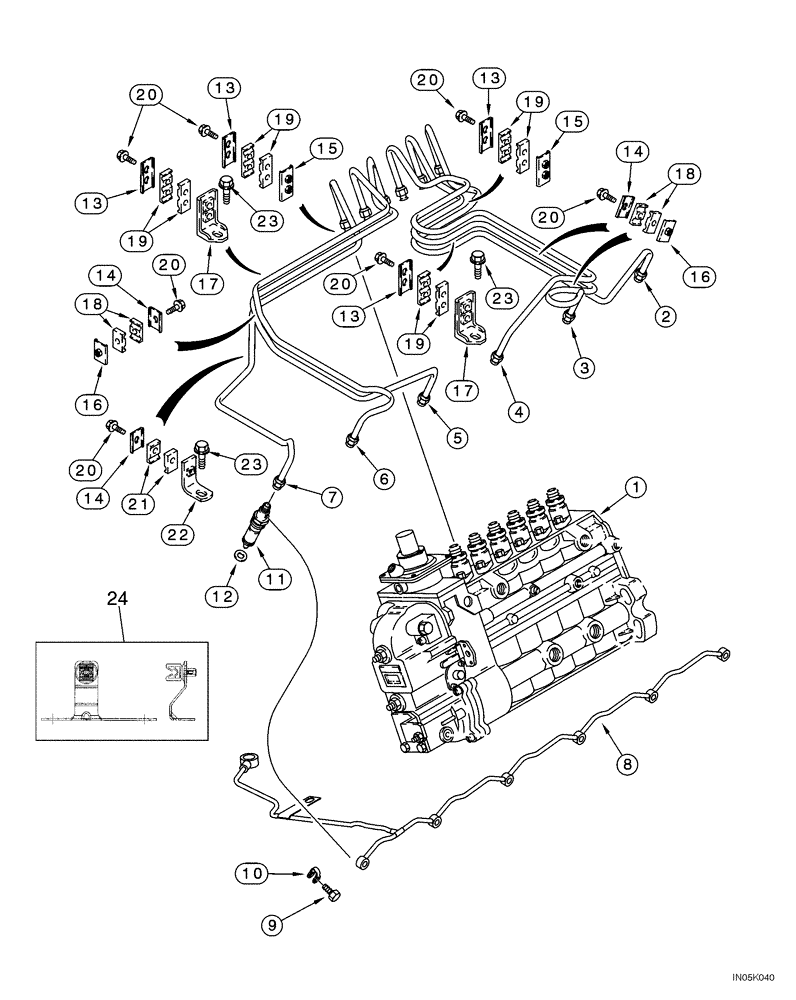

Запчасти Case 1150H_IND (03-07) - FUEL INJECTION SYSTEM (03) - FUEL SYSTEM

6T-590 Emissions Certified Engine

1шт.

1

J929409

PUMP, FUEL INJECTION

PUMP, INJECTION See Figure 03-10

1шт.

2

J929462

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 787 mm L

No. 1

1шт.

3

J929463

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 787 mm L

No. 2

1шт.

4

J929464

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 787 mm L

No. 3

1шт.

5

J929465

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 787 mm L

No. 4

1шт.

6

J929466

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 787 mm L

No. 5

1шт.

7

J932495

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 787 mm L

No. 6

1шт.

8

J933295

MANIFOLD

1шт.

9

J905307

BANJO BOLT,M6 x 1 x 14.30mm

7шт.

10

J903380

SEAL

Bushing Mounting

6шт.

11

J929490

NOZZLE INJECTION

See Figure 03-11

6шт.

12

J906659

SEAL

1.5 mm, See Figure 03-11

6шт.

13

J904519

SUPPORT

4шт.

14

CURJ904711

CLAMP

4шт.

15

J917716

BRACE

2шт.

16

J917717

BRACE

3шт.

17

J282942

BRACKET

2шт.

18

J917746

CLAMP

5шт.

19

J917747

CLAMP

8шт.

20

J920854

CAPTIVE WASHER SCREW,HWH, M5 x 0.8 x 24.5mm, Cl 8.8

14шт.

21

J919359

CLAMP

2шт.

22

J940840

BRACE

1шт.

23

844-8025

BOLT,Hvy Hex, M8 x 25mm, Cl 8.8

1шт.

24

J284865

TUBE

1шт.
