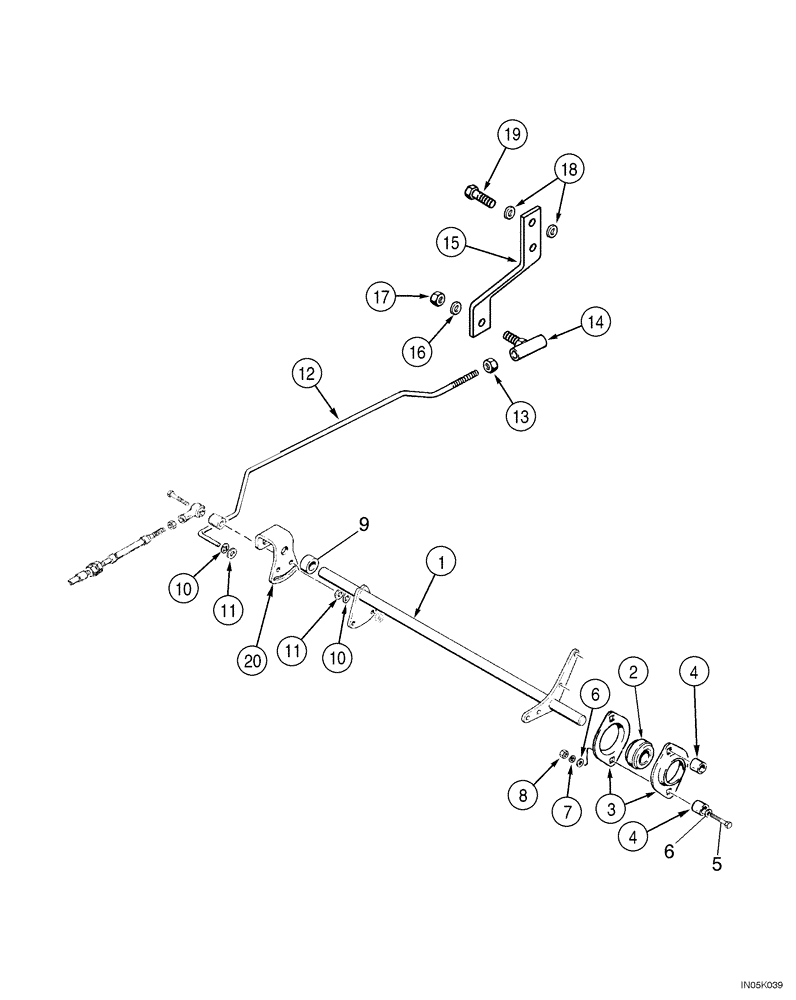

Запчасти Case 1150H_IND (03-02) - CONTROLS, THROTTLE - SHAFT, CROSS AND CONTROL ROD (03) - FUEL SYSTEM

1

R57907

SHAFT

1шт.

2

468390R92

BALL BEARING,0.6255" ID x 40 mm OD x 0.75"

2шт.

3

F13526

FLANGED BEARING

4шт.

4

D40405

SPACER

4шт.

5

413-440

BOLT,Hex, 1/4" - 20 x 2-1/2", Gr 5

4шт.

6

495-11028

WASHER,1/4", SAE

(9/32 x 5/8 x 1/16")

4шт.

7

492-11025

LOCK WASHER,1/4"

4шт.

8

425-104

NUT,1/4"-20, Cl 5

4шт.

9

L125100

SPACER,17.48mm ID x 31.75mm OD x 14.3mm Thk

1шт.

10

100-1425

SNAP RING,#25, Ext

2шт.

11

495-11028

WASHER,1/4", SAE

(9/32 x 5/8 x 1/16")

2шт.

12

244014A2

ROD

Accelerator, Shaft to Injection Pump

1шт.

13

425-114

NUT,1/4"-28, G5

1шт.

14

225619A1

BALL JOINT

1шт.

15

242864A1

LEVER

1шт.

16

492-11025

LOCK WASHER,1/4"

1шт.

17

425-154

JAM NUT,Jam, 1/4"-28, G5

1шт.

18

892-11006

LOCK WASHER,M6

4шт.

19

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

2шт.

20

R57904

LEVER

Cable Control

1шт.
