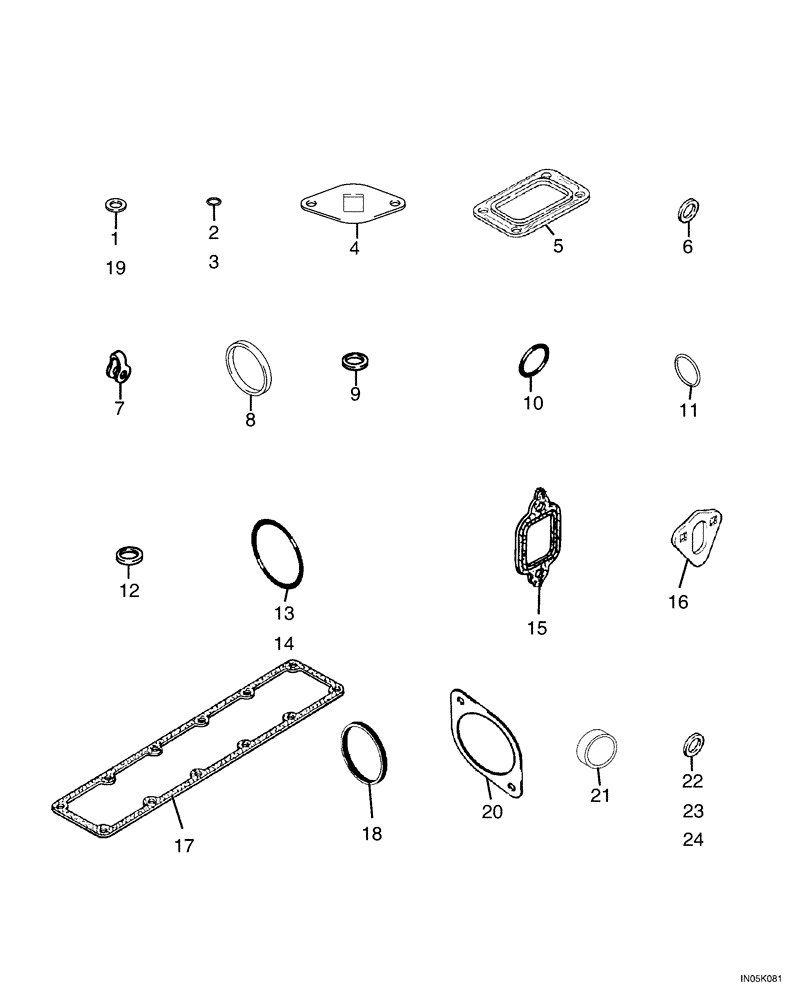

Запчасти Case 1150H_IND (02-24) - GASKET KIT, BASIC ENGINE - 6T-590 EMISSIONS CERTIFIED ENGINE (02) - ENGINE

A77996

GASKET KIT

Incl. Ref 1 - 24

1шт.

1

222-993

GASKET,3/8 Tube, Fl, Copper

2шт.

2

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

2шт.

3

637-62081

O-RING,1.6mm Thk x 8.1mm ID, Cl 6, 90 Duro

1шт.

4

J937706

GASKET,0.79mm Thk

2шт.

5

J919369

GASKET,0.5mm Thk

1шт.

6

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

1шт.

7

J903380

SEAL

6шт.

8

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

1шт.

9

J937142

SEAL,7mm ID x 15mm OD x 1.5mm Thk

1.5 mm

6шт.

10

J906696

SEAL,41mm ID x 43mm OD x 2.5mm H

38 mm ID

2шт.

11

J906697

SEAL,Square, 5.16mm Thk x 50.17mm ID

50 mm ID

1шт.

12

J909356

SEAL,Square, 1.68mm Thk x 15.6mm ID, -16

6шт.

13

J910517

O-RING

1шт.

14

J912473

SEAL,157mm ID x 163.18mm OD x 7.03mm Thk

SEALRING

1шт.

15

J927154

GASKET,0.38mm Thk

6шт.

16

J939258

GASKET,1.21mm Thk

2шт.

17

J938152

MANIFOLD GASKET

1шт.

18

J935032

SEAL

76 ID x 3 mm thick

1шт.

18

J924605

SEAL

1шт.

19

87415913

SEALING WASHER,11.71mm ID x 19.3mm OD x 1.27mm Thk

12 x 19 x 1.5 mm

4шт.

20

J938655

GASKET,1.27mm Thk

1шт.

21

J923331

GASKET

1шт.

22

J918187

PACKING RING

5 ID x 11 mm OD

2шт.

23

J918188

WASHER,7.8mm ID x 13.5mm OD x 1.2mm Thk

7 ID x 13 mm OD

2шт.

24

J918192

PACKING RING,14mm ID x 20mm OD x 1mm Thk

13 ID x 20 mm OD

2шт.
