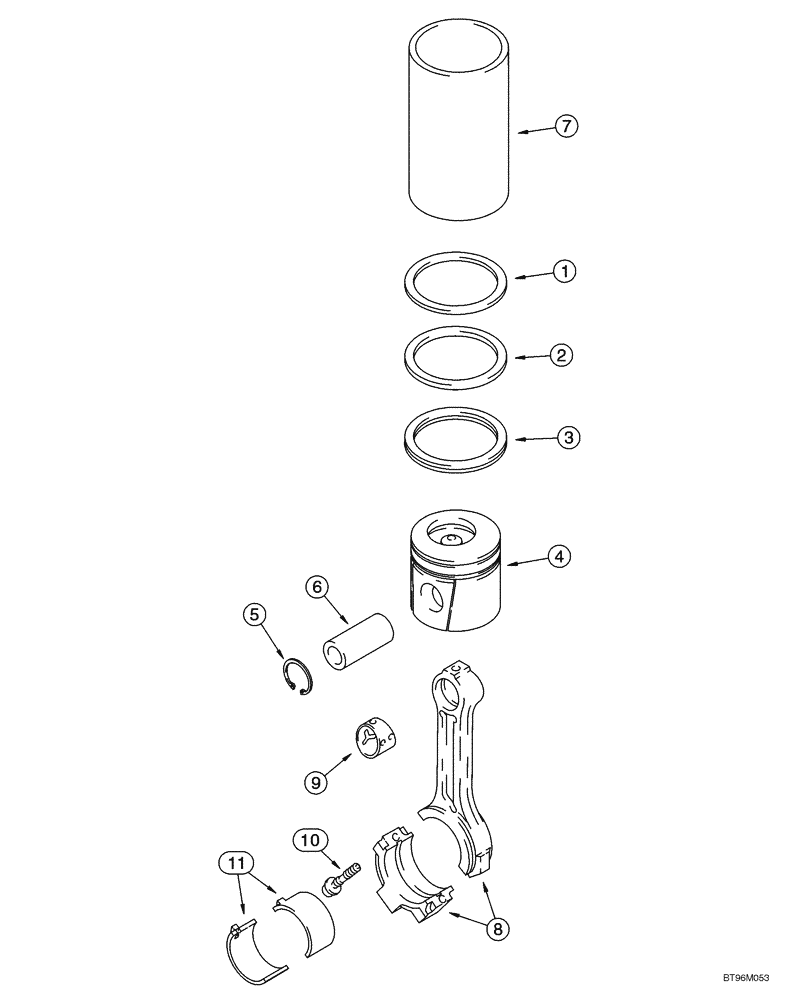

Запчасти Case 1150H_IND (02-21) - PISTONS - CONNECTING RODS (02) - ENGINE

*

6T-590 Emissions Certified Engine

1шт.

J802747

PISTON & RINGS KIT,100MM PISTON DIAMETER

Standard, Incl. J802746, 1 - 5

6шт.

J802746

PISTON RING SET

Incl.1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

Ring, Top

1шт.

2

NSS

NOT SOLD SEPARAT

Ring, Middle

1шт.

3

NSS

NOT SOLD SEPARAT

Ring, Bottom

1шт.

4

NSS

NOT SOLD SEPARAT

Piston, Standard

1шт.

5

J901706

RING

2шт.

6

J919053

PISTON PIN

1шт.

J802764

PISTON & RINGS KIT

0.5 mm, Oversize 0.5 mm, Incl. J802422, 1 - 5

6шт.

J802422

PISTON RING SET

0.5 mm, Incl. 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

Ring, Top

1шт.

2

NSS

NOT SOLD SEPARAT

Ring, Middle

1шт.

3

NSS

NOT SOLD SEPARAT

Ring, Bottom

1шт.

4

NSS

NOT SOLD SEPARAT

Piston, Oversize 0.5 mm

1шт.

5

J901706

RING

2шт.

6

J919053

PISTON PIN

1шт.

J802765

PISTON & RINGS KIT

1.0 mm, Oversize 1.0 mm, Incl. J802423, 1 - 5

6шт.

J802423

PISTON RING SET

1.0 mm, Incl. 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

Ring, Top

1шт.

2

NSS

NOT SOLD SEPARAT

Ring, Middle

1шт.

3

NSS

NOT SOLD SEPARAT

Ring, Bottom

1шт.

4

NSS

NOT SOLD SEPARAT

Piston, Oversize 1.0 mm

1шт.

5

J901706

RING

2шт.

6

J919053

PISTON PIN

1шт.

7

J904166

SLEEVE

Use With J802747

1шт.

*

Connecting Rod

1шт.

J942581

ROD, CONNECTING

Incl. 8 - 10

1шт.

JR942581

REMAN-CONNECTING ROD

Reman for New PN J942581

1шт.

JC901569

CORE-ROD CONNECTING

Core-Connecting Rod

1шт.

8

NSS

NOT SOLD SEPARAT

Rod

1шт.

9

J941476

BUSHING

1шт.

10

J900919

BOLT,Flng, MJ11 x 1.25 x 59mm, Cl 12.9

M11 x 59

2шт.

11

A77465

BEARING SET

Standard

6шт.

11

A77466

BEARING SET

Undersize 0.25 mm

6шт.

11

A77467

BEARING LINER

Undersize 0.50 mm

6шт.

11

A77468

BEARING SET

Undersize 0.75 mm

6шт.

11

A77469

BEARING SET

Undersize 1.00 mm

6шт.
