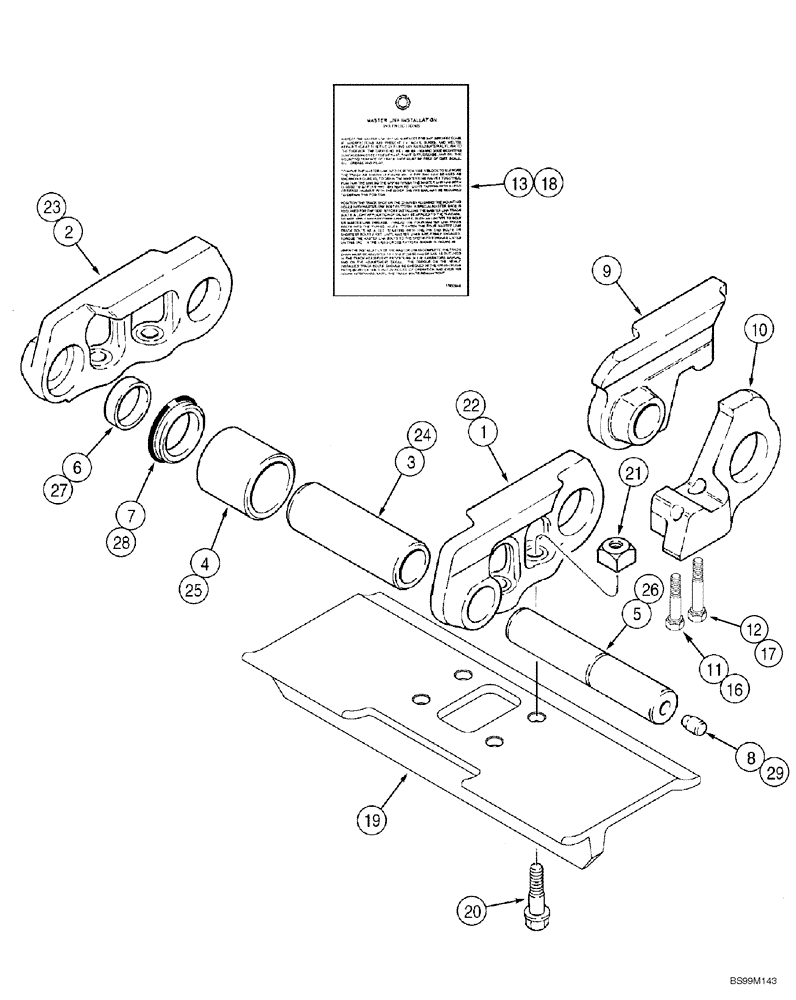

Запчасти Case 1150H_IND (05-11) - TRACK CHAIN, EXTENDED LIFE (11) - TRACKS/STEERING

Each Master Link Has Two Bolt Holes

1шт.

365691A1

CHAIN (CE)

Track, Extended Life, Incl. 1 - 18

2шт.

1

365492A1

LINK

Right Hand

41шт.

2

365493A1

LINK

Left Hand

41шт.

3

R51191

BUSHING,36.9mm ID x 58.77mm OD x 128.8mm L

59 mm (2-5/16 in) OD

42шт.

4

189275A1

BUSHING,59.38mm ID x 79.38mm OD x 74mm L

Rotating

42шт.

5

R51192

PIN,36.58mm OD x 206.5mm L

42шт.

6

R51193

SPACER

84шт.

7

R51194

SEAL,42.1mm ID x 59mm OD x 12.5mm Thk

84шт.

8

R50441

PLUG

42шт.

365643A1

Master Link, Right Hand, Incl. 9 - 13

1шт.

NSS

NOT SOLD SEPARAT

Link Assy, Master, Right Hand, Incl. 9, 10

1шт.

9

NSS

NOT SOLD SEPARAT

Link, Fits Over Track Pin on Outside of Regular Track Link

1шт.

10

NSS

NOT SOLD SEPARAT

Link, Fits Over Bushing on Inside of Regular Track Link

1шт.

11

135778A1

BOLT,Spher Hex, 5/8" - 18 x 82.50mm

5/8 NF x 3-1/4

1шт.

12

135779A1

BOLT,Spher Hex, 5/8" - 18 x 92mm

5/8 NF x 3-5/8

1шт.

13

178328A3

TAG

Installation Instructions

1шт.

365641A1

Master Link, Left Hand, Incl. 14 - 18

1шт.

NSS

NOT SOLD SEPARAT

Link Assy, Master, Left Hand, Incl. 14, 15

1шт.

14

NSS

NOT SOLD SEPARAT

Link, Fits Over Track Pin on Outside of Regular Track Link, Not Illustrated

1шт.

15

NSS

NOT SOLD SEPARAT

Link, Fits Over Bushing on Inside of Regular Track Link, Not Illustrated

1шт.

16

135778A1

BOLT,Spher Hex, 5/8" - 18 x 82.50mm

5/8 NF x 3-1/4

1шт.

17

135779A1

BOLT,Spher Hex, 5/8" - 18 x 92mm

5/8 NF x 3-5/8

1шт.

18

178328A3

TAG

Installation Instructions

1шт.

19

384430A1

TRACK SHOE

508 mm (20 in), Master

2шт.

19

364616A1

SHOE

508 mm (20 in)

82шт.

19

384432A1

TRACK SHOE

560 mm (22 in), Master

2шт.

19

364617A1

SHOE

559 mm (22 in)

82шт.

19

384434A1

TRACK SHOE

711 mm (28 in), Master

2шт.

19

364619A1

SHOE

711 mm (28 in)

82шт.

19

384435A1

TRACK SHOE

864 mm (34 in), Master

2шт.

19

364620A1

SHOE

864 mm (34 in)

82шт.

20

R27166

BOLT

5/8 NF x 2-3/16

328шт.

21

R25688

SQUARE NUT

5/8 NF, Not Used on Master Link Bolts

328шт.

21a

345-140

SEALANT

No. 847, 1 Pint, For Link Pin Bores, Not Illustrated

1шт.

Chain Unit Kit

1шт.

382011A1

REPAIR KIT

Includes Instructions, Incl. 22 - 29

1шт.

383797A1

LINK ASSY.

Incl. 22 - 25

1шт.

22

365492A1

LINK

Right Hand

1шт.

23

365493A1

LINK

Left Hand

1шт.

24

R51191

BUSHING,36.9mm ID x 58.77mm OD x 128.8mm L

59 mm (2-5/16 in) OD

1шт.

25

189275A1

BUSHING,59.38mm ID x 79.38mm OD x 74mm L

1шт.

26

R51192

PIN,36.58mm OD x 206.5mm L

2шт.

27

R51193

SPACER

4шт.

28

R51194

SEAL,42.1mm ID x 59mm OD x 12.5mm Thk

4шт.

29

R50441

PLUG

2шт.
