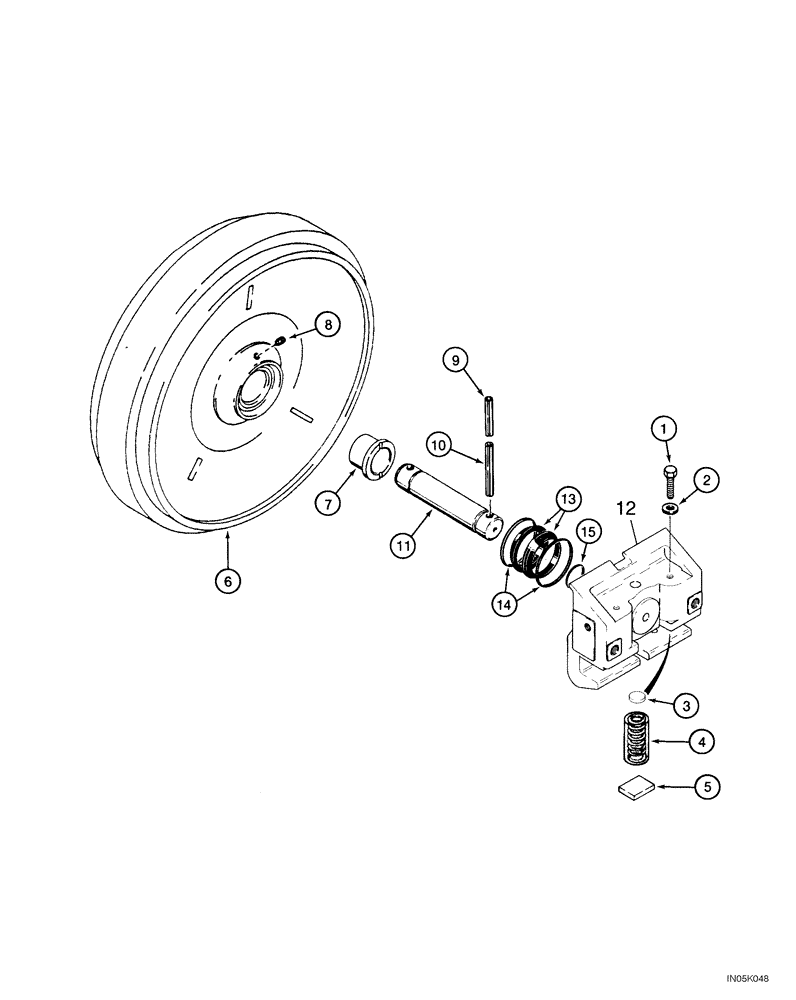

Запчасти Case 1150H_IND (05-05) - TRACK IDLER - MOUNTING (11) - TRACKS/STEERING

1

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

8шт.

2

495-21044

WASHER,3/8"

(7/16 x 1 x 5/64)

8шт.

3

R33245

SPRING SEAT

8шт.

Part of kit 144394A3

1шт.

4

188866A1

SHOCK ABSORBER

8шт.

Part of kit 144394A3

1шт.

5

R58620

LARGE PLATE

PLATE, LARGE

4шт.

Part of kit 144394A3

1шт.

366245A1

FRONT IDLER

Incl. 6 - 15

2шт.

6

NSS

NOT SOLD SEPARAT

Hub, Order 366245A1, Incl. 7

1шт.

7

S105797

BUSHING

2шт.

8

R33557

PLUG

1шт.

9

R58619

ROLL PIN

10 x 95

2шт.

Part of kit 144394A3

1шт.

10

R58618

ROLL PIN

16 x 95

2шт.

11

R58617

SHAFT

1шт.

S116825

SEAL,90.5mm ID x 109.5mm OD x 31.8mm Thk

Incl. 13, 14

2шт.

12

R58616

BRACKET

2шт.

144394A3

KIT

Idler; Includes, Ref. 3-5,9 and Ref. 17 in Fig. 05 - 02

1шт.

13

NSS

NOT SOLD SEPARAT

Seal, Order S116825

2шт.

14

NSS

NOT SOLD SEPARAT

O-Ring, Face Seal

2шт.

15

238-5227

O-RING,0.139" Thk x 2.109" ID, -227, Cl 5, 75 Duro

2шт.
