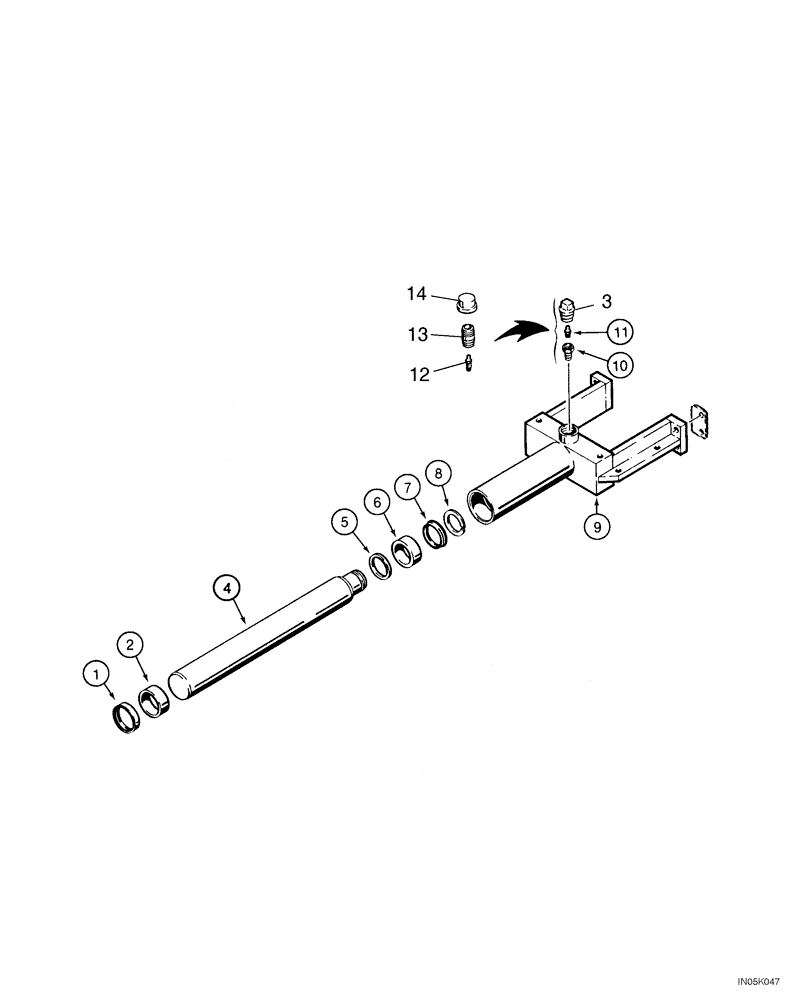

Запчасти Case 1150H_IND (05-04) - TRACK ADJUSTER (11) - TRACKS/STEERING

R45460

TENSIONER

Incl. 1 - 11

2шт.

1

D95149

PACKING RING,60.24mm ID x 73.05mm OD x 7.92mm Thk

1шт.

Part of repair kit: R57781

1шт.

2

D30374

RING,60.43mm ID x 73.15mm OD x 25.4mm L

1шт.

Part of repair kit: R57781

1шт.

3

217-532

DRAIN PLUG,Sq Hd, 1 1/4"-11 1/2 NPTF

1шт.

4

143807A1

PISTON

722 mm (28-1/2 in)

1шт.

5

R30202

RING,54.101mm ID x 65.1mm OD x 5.08mm Thk

1шт.

Part of repair kit: R57781

1шт.

6

R25663

BUSHING,53.98mm ID x 66.62mm OD x 25.4mm L

1шт.

Part of repair kit: R57781

1шт.

7

R25706

SEAL,53.9mm ID x 66.75mm OD x 10.69mm Thk

1шт.

Part of repair kit: R57781

1шт.

8

101-11212

SNAP RING,#212, 1.997", Ext

1шт.

Part of repair kit: R57781

1шт.

9

R45458

YOKE

1шт.

10

D35287

CHECK VALVE,5/8" - 18

1шт.

11

219-1

LUBE NIPPLE,1/8" - 27 NPTF

Used without track adjuster cover

1шт.

12

219-5

LUBE NIPPLE,1/8" - 27 NPTF

1/8 PT, Special Short, Used With Track Adjuster Cover

2шт.

13

221-1262

FITTING

1-1/4 PT x 2, Used With Track Adjuster Cover

2шт.

14

221-528

CAP,1 1/4" NPT

1-1/4 in; Used With Track Adjuster Cover

2шт.

R57781

KIT

Track Adjuster: Includes, Ref. 1,2,5-8

1шт.
