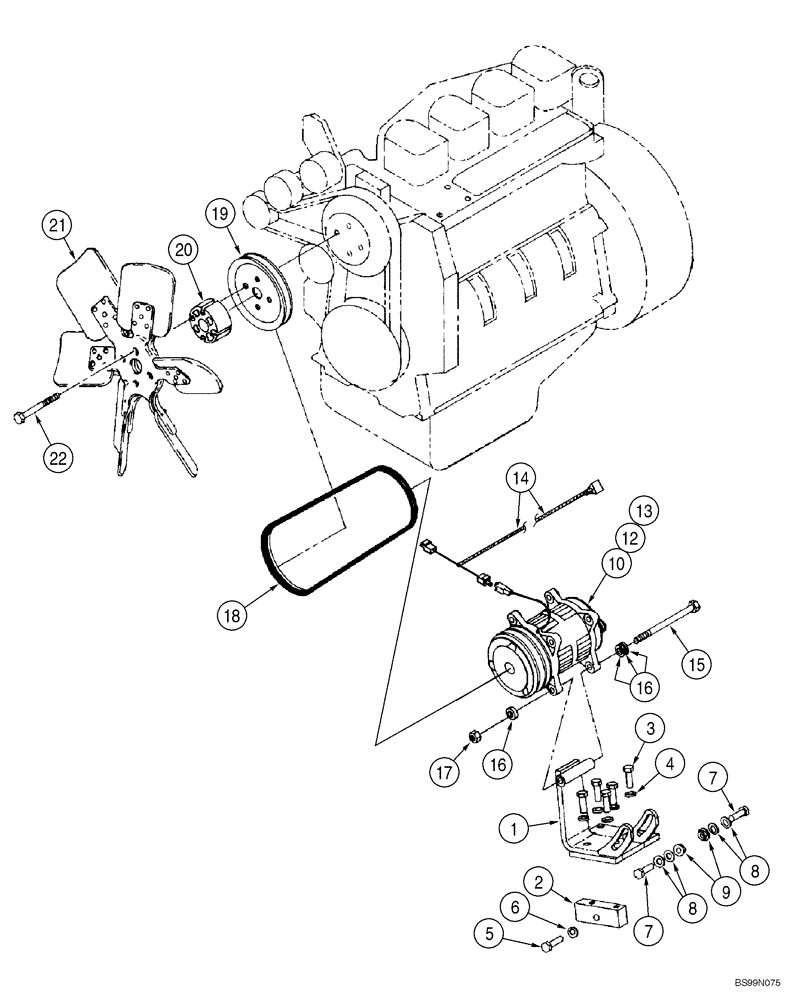

Запчасти Case 1150H_IND (09-35) - AIR CONDITIONING - COMPRESSOR MOUNTING (09) - CHASSIS/ATTACHMENTS

1

356319A1

SUPPORT

Unpainted; If Used

1шт.

1

87448032

SUPPORT

Grey; If Used

1шт.

2

356694A1

SUPPORT

Tan; If Used

1шт.

2

87453233

SUPPORT

Grey; If Used

1шт.

3

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

5шт.

4

892-11010

LOCK WASHER,M10

5шт.

5

827-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

7шт.

6

892-11010

LOCK WASHER,M10

3шт.

7

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

2шт.

8

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

11 x 21 x 2 mm

4шт.

9

829-2310

FLANGE NUT,M10 x 1.5, Flg, Cl 10

2шт.

10

86993462

AIRCOND. COMPRESSOR

Incl.11 - 13, Replaces 1999755C3

1шт.

86993462R

REMAN-COMPRESSOR

1150H_IND

1шт.

86993462C

CORE-COMPRESSOR

Return Number

1шт.

48017123R

REMAN-A/C COMP KIT

Reman AC Compressor Kit

1шт.

48017123C

REMAN-A/C COMP KIT

Return Number

1шт.

11

135324A1

CLUTCH

Not Illustrated

1шт.

12

A49667

PLUG

1шт.

13

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

5/16 ID x 1/16

1шт.

14

REF

INSTRUCTION

Harness, See Figure 09-34

1шт.

15

827-10130

BOLT,Hex, M10 x 1.5 x 130mm, Cl 10.9

1шт.

16

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

11 x 21 x 2 mm

1шт.

17

829-2310

FLANGE NUT,M10 x 1.5, Flg, Cl 10

1шт.

18

379461A1

BELT,12.70 mm W x 950.00 mm L

Compressor Drive, Used on some models, Order 308712A1

1шт.

18

308712A1

BELT,12.70 mm W

Compressor Drive

1шт.

19

A189284

PULLEY,151mm OD

Compressor Drive

1шт.

20

A184544

SPACER

24 mm

1шт.

21

A173557

FAN

1шт.

22

193426A1

BOLT

M10 x 70

4шт.
