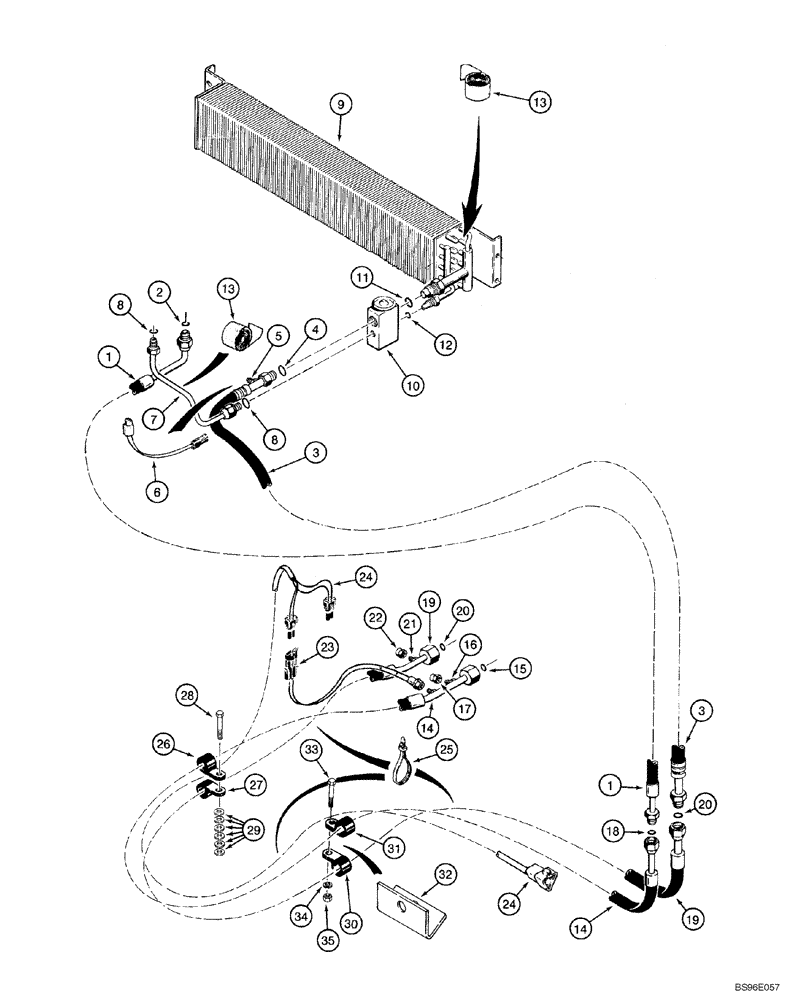

Запчасти Case 1150H_IND (09-34) - AIR CONDITIONING SYSTEM (09) - CHASSIS/ATTACHMENTS

Compressor To Evaporator Core

1шт.

1

1975773C2

HOSE ASSY.

1840 mm (72-7/16 in) Attaches To Cab Roof Condenser Tube And To Hose On Chassis, Incl. 2

1шт.

2

128484A1

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 70 Duro

7/16 ID x 1/16

1шт.

3

135521A1

HOSE

1815 mm (71-1/2 in), Suction, Evaporator Core Expansion Valve Upper Port To Hose On Chassis, Incl. 4 - 5

1шт.

4

128485A1

O-RING,1.78mm Thk x 14mm ID, 70 Duro

9/16 ID x 1/16

1шт.

5

1250594C1

CORE

1шт.

6

122579A1

SWITCH, A/C LOW PRES

Low

1шт.

7

1999419C3

TUBE

Attaches To Receiver-Drier Tube, Incl. 8

1шт.

8

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

5/16 ID x 1/16

2шт.

9

1340490C4

EVAPORATOR

Includes 10 - 12

1шт.

10

1990756C2

VALVE

1шт.

11

128485A1

O-RING,1.78mm Thk x 14mm ID, 70 Duro

9/16 ID x 1/16

1шт.

12

128484A1

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 70 Duro

7/16 ID x 1/16

1шт.

13

83822C1

TAPE

610 mm (24 in), Cut From 1954475C1

1шт.

14

394101A1

HOSE ASSY.

3330 mm (131-1/8 in), Discharge, Compressor To Cab, Incl. 15 - 17, Replaces 135519A1, incl. 15- 18

1шт.

15

128485A1

O-RING,1.78mm Thk x 14mm ID, 70 Duro

9/16 ID x 1/16

1шт.

16

1250594C1

CORE

1шт.

17

122554A1

CAP

1шт.

18

128484A1

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 70 Duro

7/16 ID x 1/16

1шт.

19

135520A1

HOSE ASSY.

3267 mm (128-5/8 in), Suction, Compressor To Cab, Includes 20 - 22

1шт.

20

128485A1

O-RING,1.78mm Thk x 14mm ID, 70 Duro

9/16 ID x 1/16

2шт.

21

1250594C1

CORE

1шт.

22

122553A1

CAP

1шт.

23

232948A1

SWITCH, A/C HIGH PRE

1шт.

24

R58601

HARNESS

High Pressure Switch and Compressor To Main Cab Harness

1шт.

25

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

1шт.

26

51200320

CLAMP

2шт.

27

D43364

CLAMP

2шт.

28

814-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 8.8

1шт.

29

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32")

6шт.

30

R21385

CLAMP

1шт.

31

R24840

CLAMP,1.12", Coat, 0.41" Bolt Hole, P Type

1шт.

32

R52541

SUPPORT

Clamp Mounting

1шт.

33

160-103

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 8, Full Thd

2шт.

34

892-11010

LOCK WASHER,M10

2шт.

35

425-106

NUT,3/8"-16, Cl 5

2шт.
