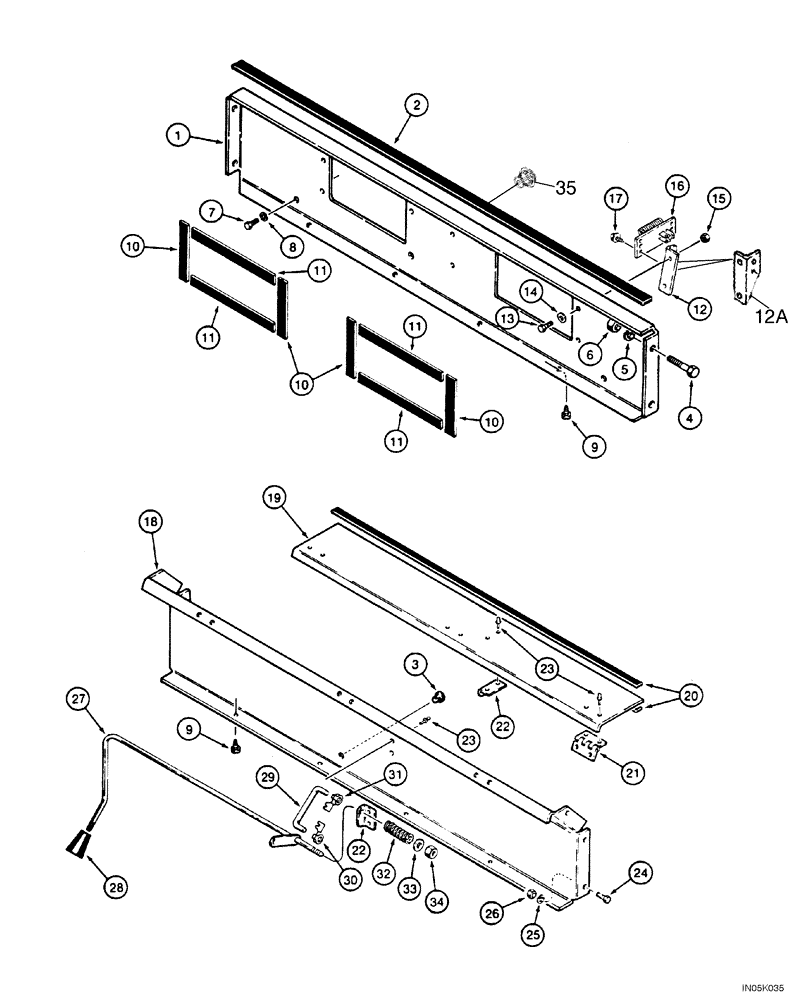

Запчасти Case 1150H_IND (09-30) - CAB - CONTROL, AIR FLOW AND BLOWER HOUSING (09) - CHASSIS/ATTACHMENTS

1

1975819C1

PANEL

Blower Mounting

1шт.

2

R44282

SEAL

800 mm (31-1/2 in)

1шт.

3

1546464C1

GROMMET

Rear Panel

1шт.

4

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

5

492-11031

LOCK WASHER,5/16"

4шт.

6

425-105

NUT,5/16"-18, G5

4шт.

7

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

8

492-11025

LOCK WASHER,1/4"

2шт.

9

F64519

SELF-TAP SCREW,Cross Wash Hd, #10-16 x 3/4"

No. 10 x 3/4

8шт.

10

F64818

SEALING STRIP

96 mm (3-13/16 in), Cut From F64119X

4шт.

11

F64817

SEALING STRIP

165 mm (6-1/2 in), Cut From F64119X

4шт.

12

R47848

SUPPORT

Resistor Mounting

1шт.

12a

R52799

SUPPORT

Resistor; If Equipped

1шт.

13

463-11012

SCREW,Hex Hd, #10-24 x 3/4"

No. 10 x 3/4

2шт.

14

195-513

WASHER,#10

7/32 x 1/2 x 3/64

2шт.

15

230-42409

NUT,#10-24, GA

No. 10

2шт.

16

F44900

RESISTOR

12V

1шт.

17

280-1458

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

No. 10 x 1/2

2шт.

18

R51716

PANEL

Rear

1шт.

19

R44793

PANEL

Air Flow Control

1шт.

20

REF

INSTRUCTION

600 mm (23-5/8 in), Seal, Cut From A42905X

2шт.

21

F64065

HINGE

3шт.

22

R44794

SUPPORT

2шт.

23

151-546

RIVET,Pop, 1/8" x 5/16"

1/8 x 5/16

16шт.

24

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

6шт.

25

492-11025

LOCK WASHER,1/4"

6шт.

26

425-104

NUT,1/4"-20, Cl 5

6шт.

27

R51717

LEVER

Air Flow Control

1шт.

28

F64341

KNOB

Adjustment Lever

1шт.

29

R44798

THREADED ROD

1шт.

30

F43349

CLIP

1шт.

31

F43350

CLIP

1шт.

32

F62245

SPRING

1шт.

33

495-11028

WASHER,1/4", SAE

(9/32 x 5/8 x 1/16")

1шт.

34

231-1444

NUT,1/4"-20, GB

1шт.

35

R54547

GROMMET

1шт.
