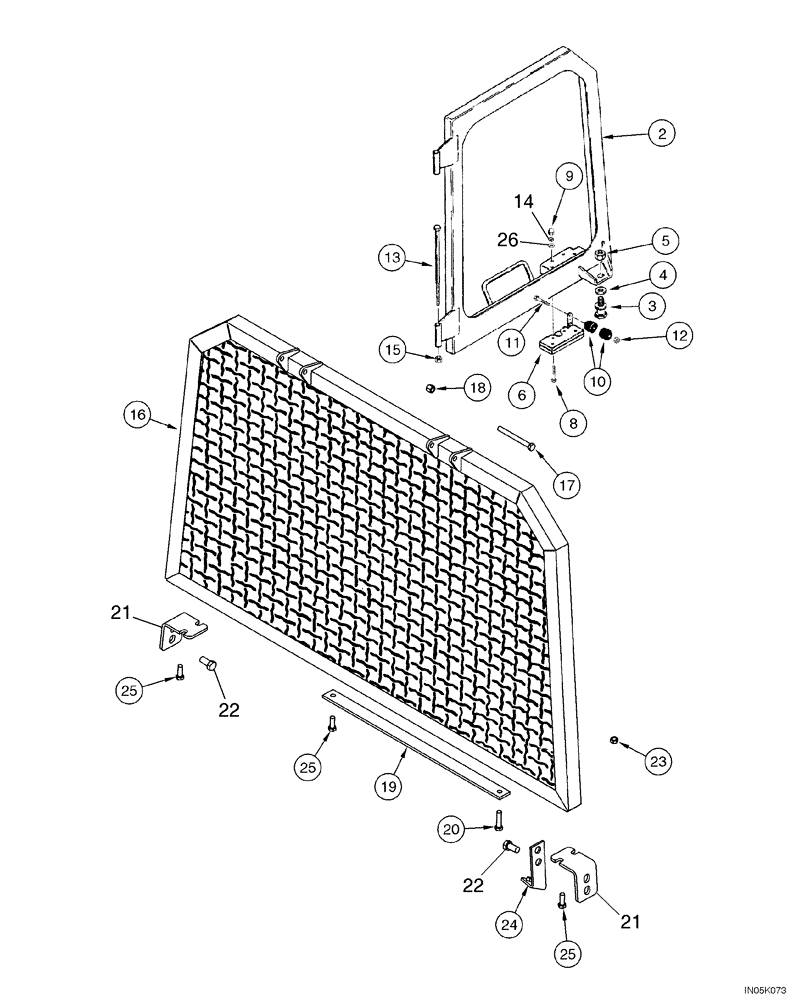

Запчасти Case 1150H_IND (09-26) - CAB - WINDOW, DOOR AND SCREEN (09) - CHASSIS/ATTACHMENTS

1

189648A1

FRAME

Left Hand, Not Illustrated

1шт.

2

189649A1

FRAME

Right Hand

1шт.

3

R51754

STRIKER

Outer

2шт.

4

495-21050

WASHER,7/16"

(1/2 x 1-1/4 x 5/64")

2шт.

5

131-595

NUT,7/16"-14

7/16

2шт.

6

R55002

LATCH

Right Hand

1шт.

7

R55003

LATCH ASSY.

Left Hand, Not Illustrated

1шт.

9

129-884

CROWN NUT,Crown, 1/4"-20

1/4

8шт.

10

L35871

FENDER

4шт.

11

470-11016

SCREW,Pan HD, #10 - 24 x 1"

No. 10 x 1

2шт.

12

225-14110

NUT,#10-24

2шт.

13

424-6160

BOLT,Hex, 3/8" - 16 x 10", Gr 2

4шт.

14

492-11025

LOCK WASHER,1/4"

8шт.

15

231-1446

NUT,3/8" - 16, Gr 5

4шт.

16

177173A1

SCREEN

Rear

1шт.

17

413-660

BOLT,Hex, 3/8" - 16 x 3-3/4", Gr 5

3/8 x 3-3/4

2шт.

18

231-1446

NUT,3/8" - 16, Gr 5

2шт.

19

183914A1

BAR

1шт.

20

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

21

187060A1

ANGLE

Support

2шт.

22

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

4шт.

23

131-203

LOCK NUT,3/8"-16, GB, LH

3/8

1шт.

24

374725A1

BRACKET

Hold Open

1шт.

25

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3шт.

26

495-11028

WASHER,1/4", SAE

(9/32 x 5/8 x 1/16")

8шт.

8

413-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

8шт.
